KOSMEK Manifolds & Blocks for Hydraulic Work Supports

KOSMEK Power Workholding

Save to My Project

What is this?

Product Information

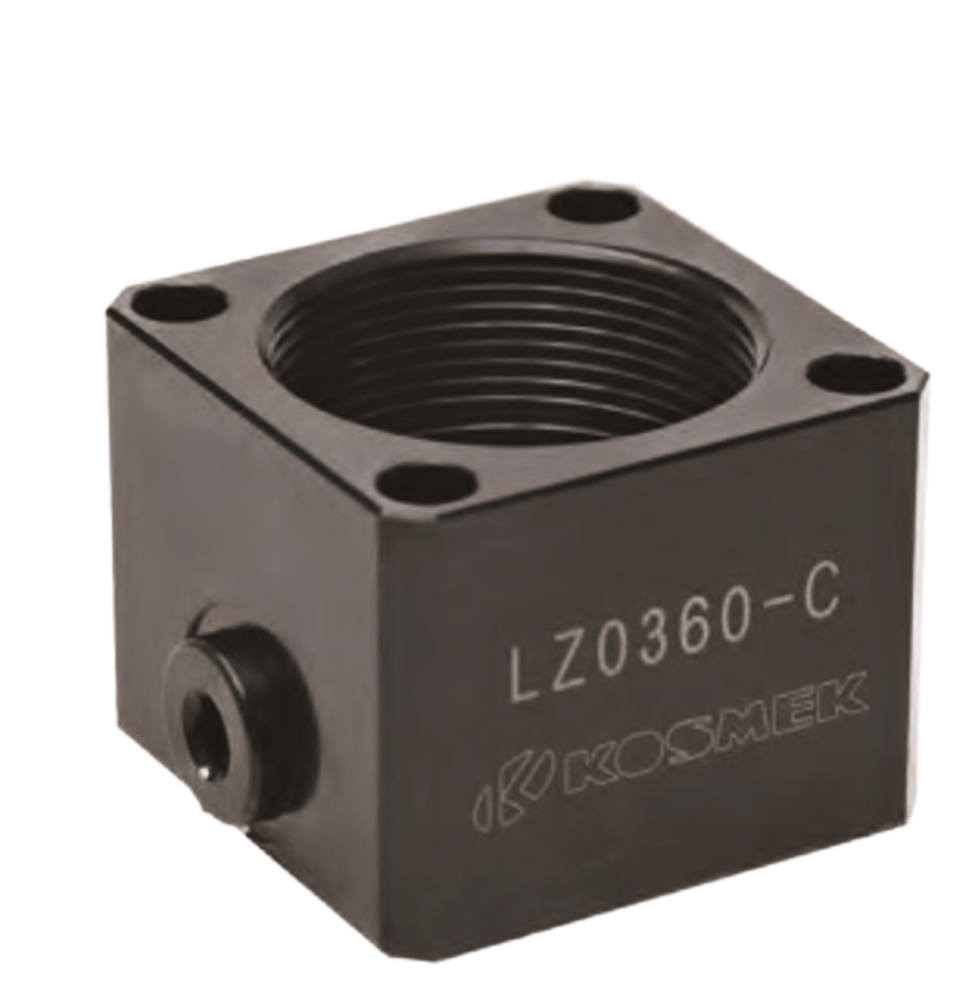

Hydraulic Work Support Mounting Block (LZ-C) provides a ready-made mounting solution for LD-series threaded-body Hydraulic Work Supports, eliminating the need to machine a pocket in the fixture base. The block accepts the LD work support body directly, securing it to the fixture surface with standard fasteners for a rigid, stable installation. Ideal for applications where machining a dedicated pocket into the fixture base is impractical or undesirable. The LZ-C mounts to the fixture base and locates the LD work support in the correct position and orientation, maintaining proper alignment with the workpiece contact point. A G-thread plug with air bleeding function (JZG010) is included. The hydraulic fitting port accepts a BZL0101-A connector, sold separately.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Documents

Manifolds & Blocks for Hydraulic Work Supports

Hydraulic Work Supports

KOSMEK Manifolds & Blocks for Hydraulic Work Supports

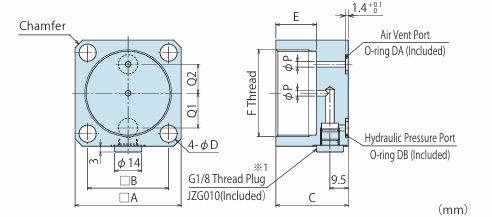

PART NO.	CORRESSPONDING MODEL	A	B	C
LZ0220-C	LD0223	28	21	30.5
LZ0260-C	LD0260	45	26	32.5
LZ0360-C	LD0303	38	45	55
LZ0300-C	LD0363	29	35	42
LZ0450-C	LD0453	33.5	34.5	37.5
