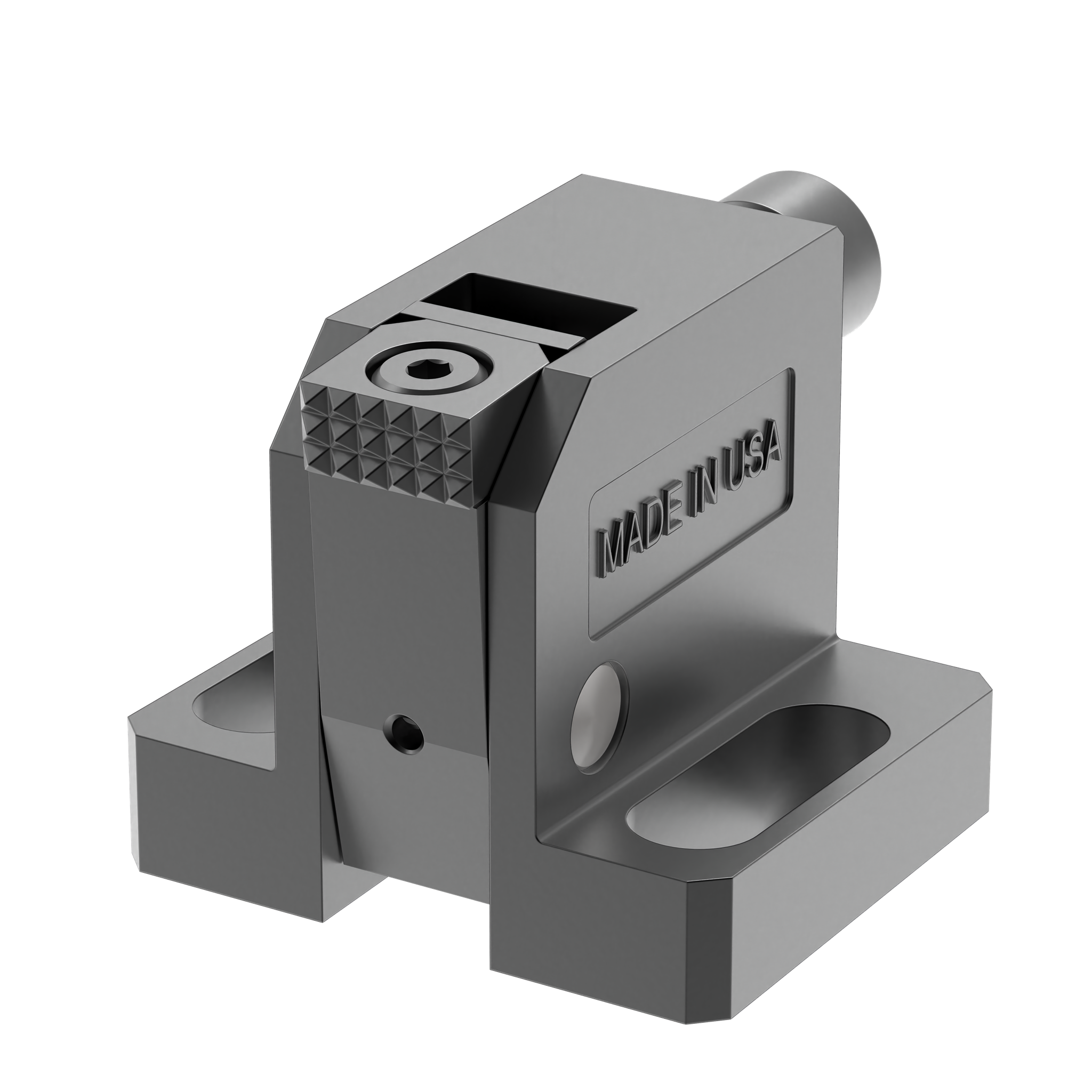

Pivoting Edge Clamp

Clamps & Accessories,Jig & Fixture Bases,CL5® 5-Axis Workholding


QUANTITY PART NO. MAXIMUM
CLAMPING
STROKE
MOUNTING
SCREW
SIZE
THRUST
SCREW
SIZE
BALL-END THRUST SCREW (FURNISHED) EDGE
GRIPPER
(FURNISHED)
CL-100-PEC 1/2 1/2-13 or M12 1/2-20 CL-80-BTS-1.75 CL-12-EG-6
