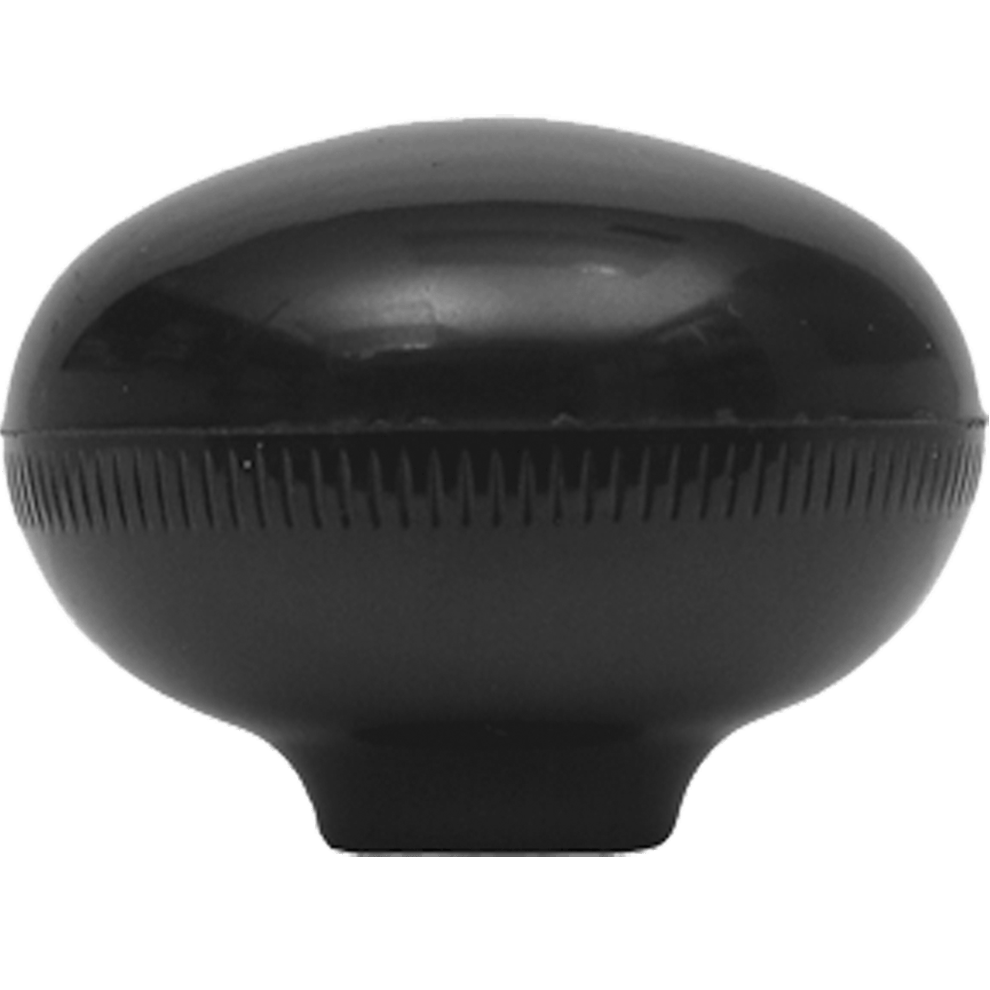

Oval Ball Knobs, Large (Phenolic)

Handles, Knobs & Screw Clamps

Save to My Project

What is this?

Product Information

Large, comfortable-grip ball knob that is ideal for shift levers, control levers, and push/pull rods. Phenolic plastic provides a hard smooth shiny finish. Available in one knob size, with tapped-hole sizes from 3/8-16 to 1/2-13. Molded-in brass insert provides superior thread strength. Non-standard thread sizes or molded-in studs are available in quantities of 500 and above. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300°F, resistant to oils and most common chemicals)	-	Molded-in Brass Insert	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Oval Ball Knobs, Large (Phenolic)

Inch

PART NO.	A DIA	B	C DIA	D THREAD	E
CL-852-OBK	2-1/32	1-1/2	3/4	3/8-16	1/2
CL-854-OBK	2-1/32	1-1/2	3/4	3/8-24	1/2
CL-872-OBK	2-1/32	1-1/2	3/4	1/2-13	5/8
