Pull Knobs – Recessed Top, Large (Phenolic)

Handles, Knobs & Screw Clamps

Save to My Project

What is this?

Product Information

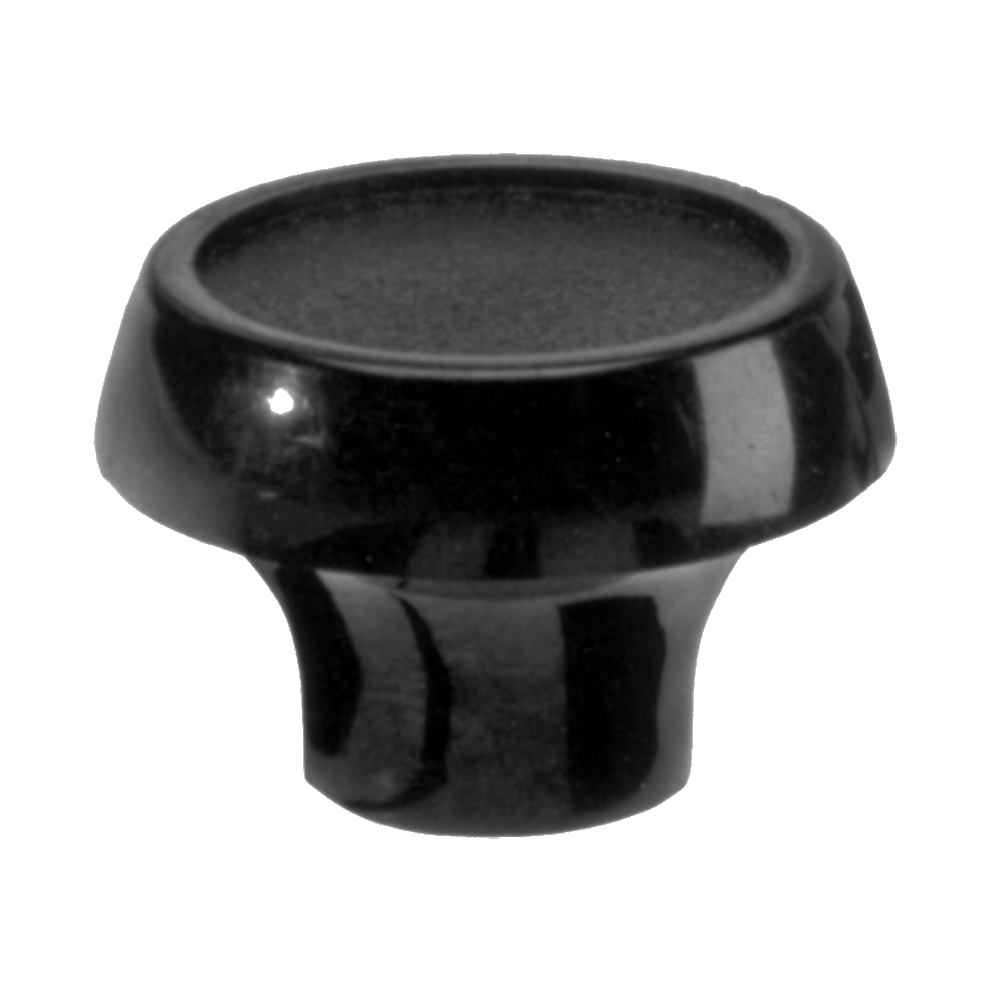

Pull Knobs – Recessed Top, Large (Phenolic)

One of our smallest pull knobs. Versatile knob with an enlarged head for pulling, pushing, or lifting. Available in one knob size, with tapped-hole sizes #10-32 and 1/4-20. Molded-in brass insert provides superior thread strength. Non-standard thread sizes or molded-in studs are available in quantities of 500 and above. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300°F, resistant to oils and most common chemicals)	-	Molded-in Brass Insert	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Pull Knobs – Recessed Top, Large (Phenolic)

Inch

QUANTITY	PART NO.	A DIA	B	C DIA	D	E THREAD	F
	CL-424-PKR	1	11/16	1/2	7/16	#10-32	5/16
	CL-432-PKR	1	11/16	1/2	7/16	1/4-20	5/16
