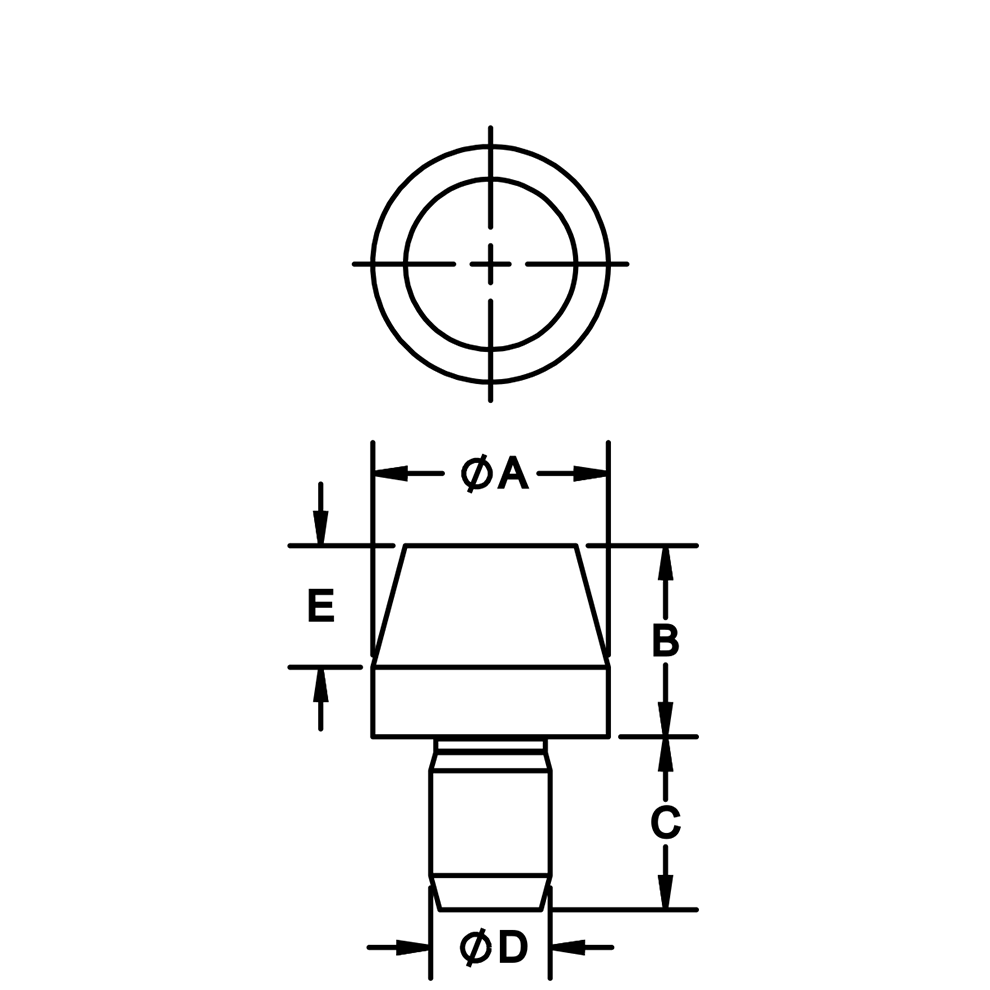

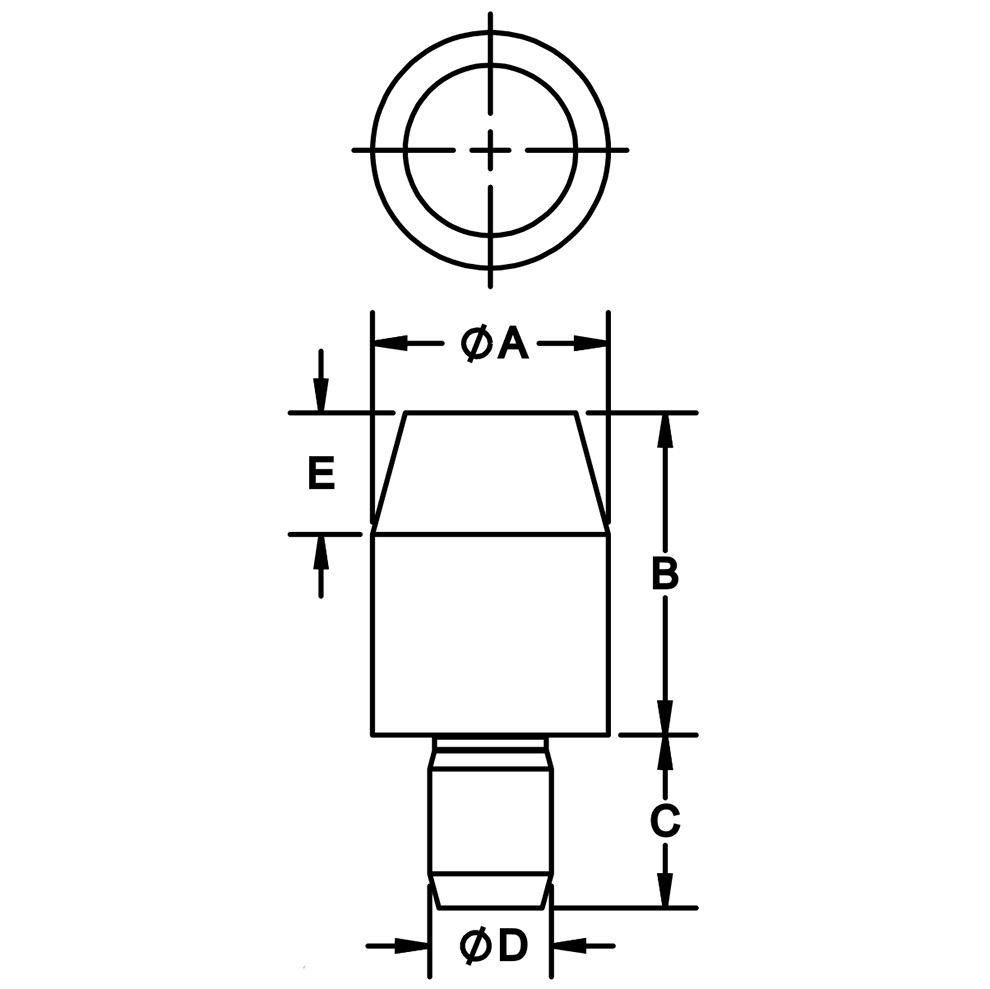

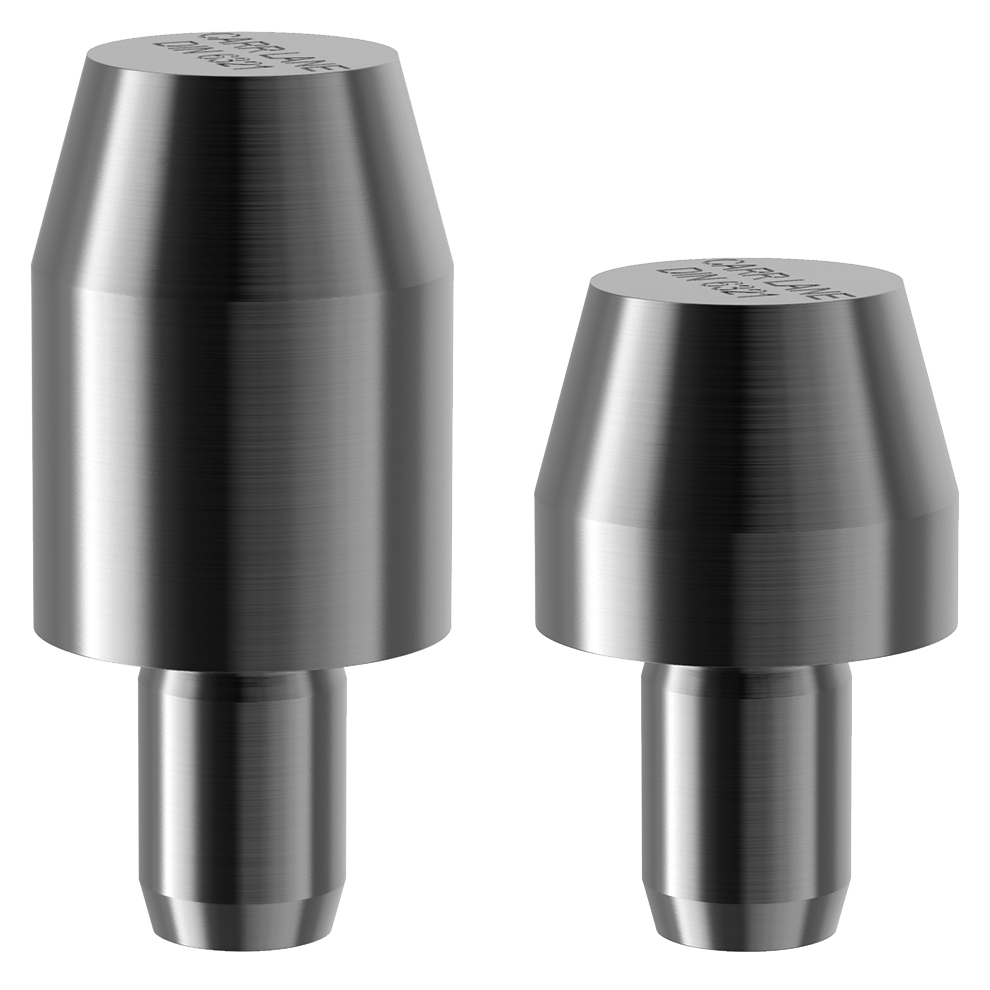

Round Locating Pins, DIN 6321, Type B (Tall and Short)

Locating Pins

Metric
QUANTITY PART NO. A
DIA
(mm)
g6
VERSION B
(mm)
C
(mm)
D
DIA
(mm)
n6
E
(mm)
CL-6321-6-7-B 6 Short 7 6 4 4
CL-6321-6-12-B 6 Tall 12 6 4 4
CL-6321-8-10-B 8 Short 10 9 6 6
CL-6321-8-16-B 8 Tall 16 9 6 6
CL-6321-10-10-B 10 Short 10 9 6 6
CL-6321-10-18-B 10 Tall 18 9 6 6
CL-6321-12-10-B 12 Short 10 9 6 6
CL-6321-12-18-B 12 Tall 18 9 6 6
CL-6321-16-13-B 16 Short 13 12 8 8
CL-6321-16-22-B 16 Tall 22 12 8 8
CL-6321-20-15-B 20 Short 15 18 12 9
CL-6321-20-25-B 20 Tall 25 18 12 9
CL-6321-25-15-B 25 Short 15 18 12 9
CL-6321-25-25-B 25 Tall 25 18 12 9
