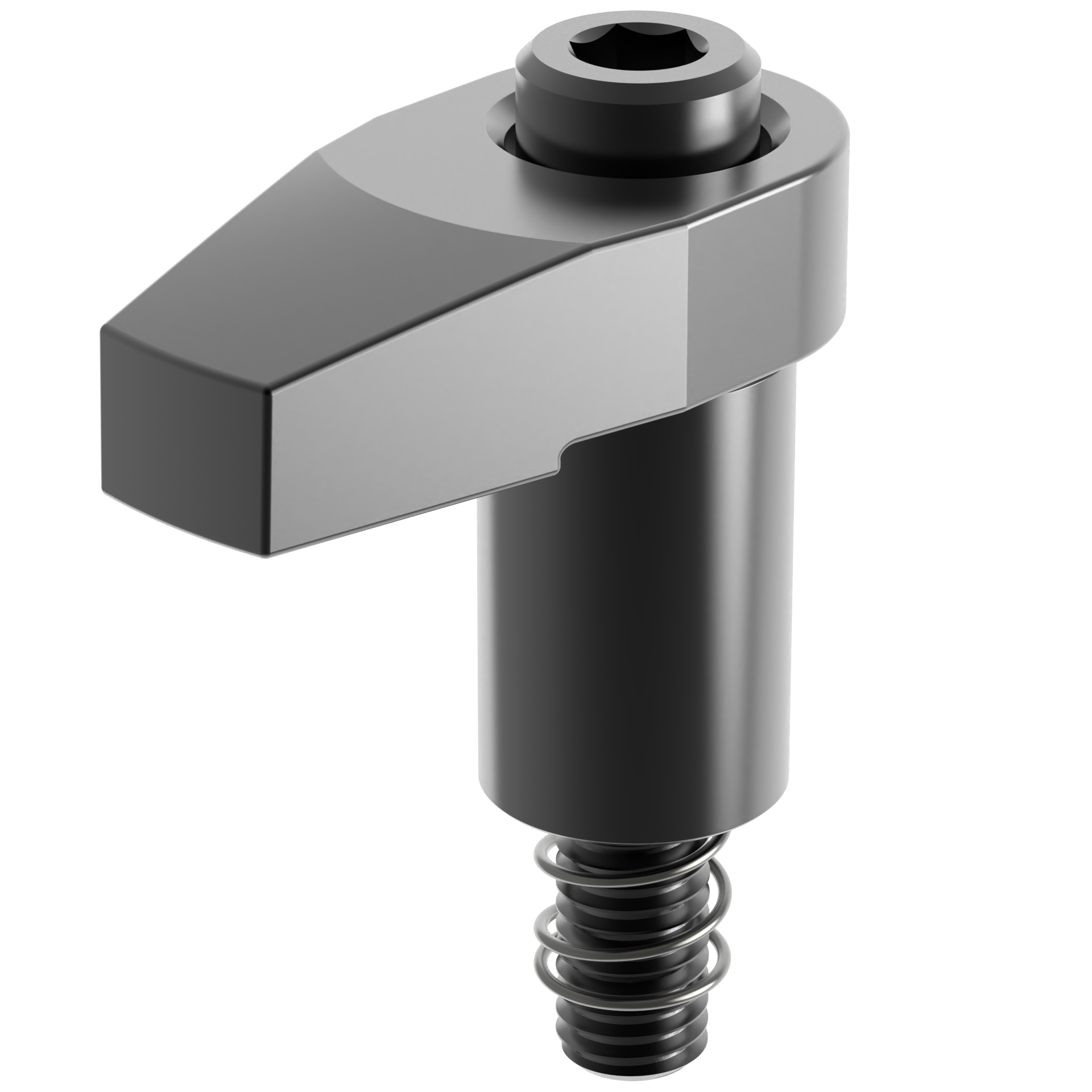

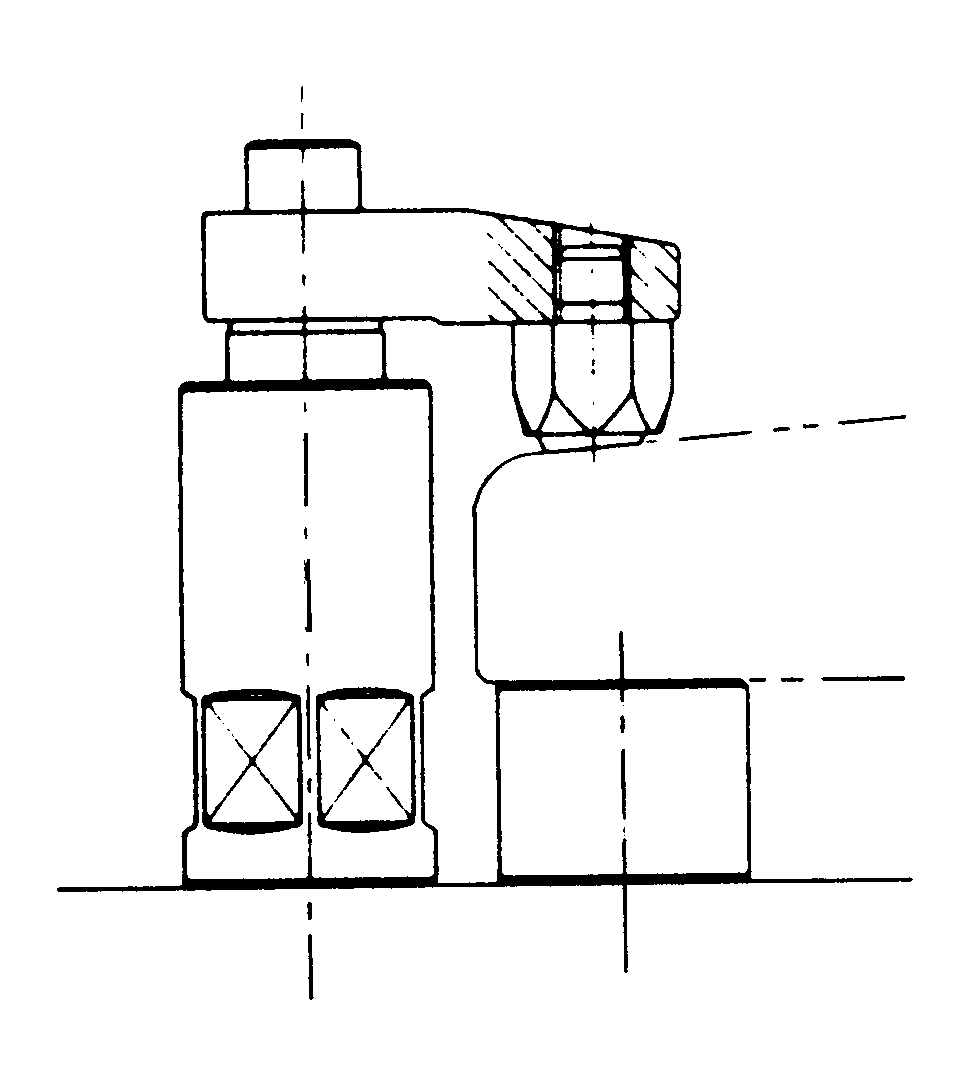

Hook Clamps – Long Arm (Mini)

Save to My Project

What is this?

Product Information

Hook Clamps are designed to manually swing into clamping position, then clamp straight down by screw action. These clamps allow clear loading while swung away in unclamped position. Ideal in tight spaces where high clamping force is required. Long-arm Hook Clamps are available with either a plain arm (shown here) or a tapped arm. Made in USA.

The Hook Clamps shown here are for Mini System MF25 (5/16-18 stud size). For our complete selection of Long-Arm Hook Clamps, see Related Products below.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Mounting

These clamps can be mounted in a Hook-Clamp Holder or Hook-Clamp Mounting Block. For high-rise clamping, Riser Cylinders are available to extend the range of standard Hook-Clamp Holders. See Related Products below to order mounting accessories.

Material

Clamp body > 4135 steel, heat treated, black oxide finish. Socket-head cap screw > Steel, black oxide finish. Spring > Spring steel, black oxide finish. DFARS and RoHS compliant.

Click here for detailed material and finish specifications.

Hook Clamps – Long Arm (Mini)

QUANTITY	PART NO.	THREAD SIZE	A	B DIA	C	D	E	F	G	K	L	M	MAXIMUM ALLOWABLE TORQUE (ft-lbs)	MAXIMUM CLAMPING FORCE (lbs)
	CL-MF25-5002	5/16-18	1	.7500	1-7/16	2-5/16	7/8	3/8	5/16-18 x 2.00	29/32	15/16	15/16	22	2200

Check Price & Availability
