Expanding Plugs

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

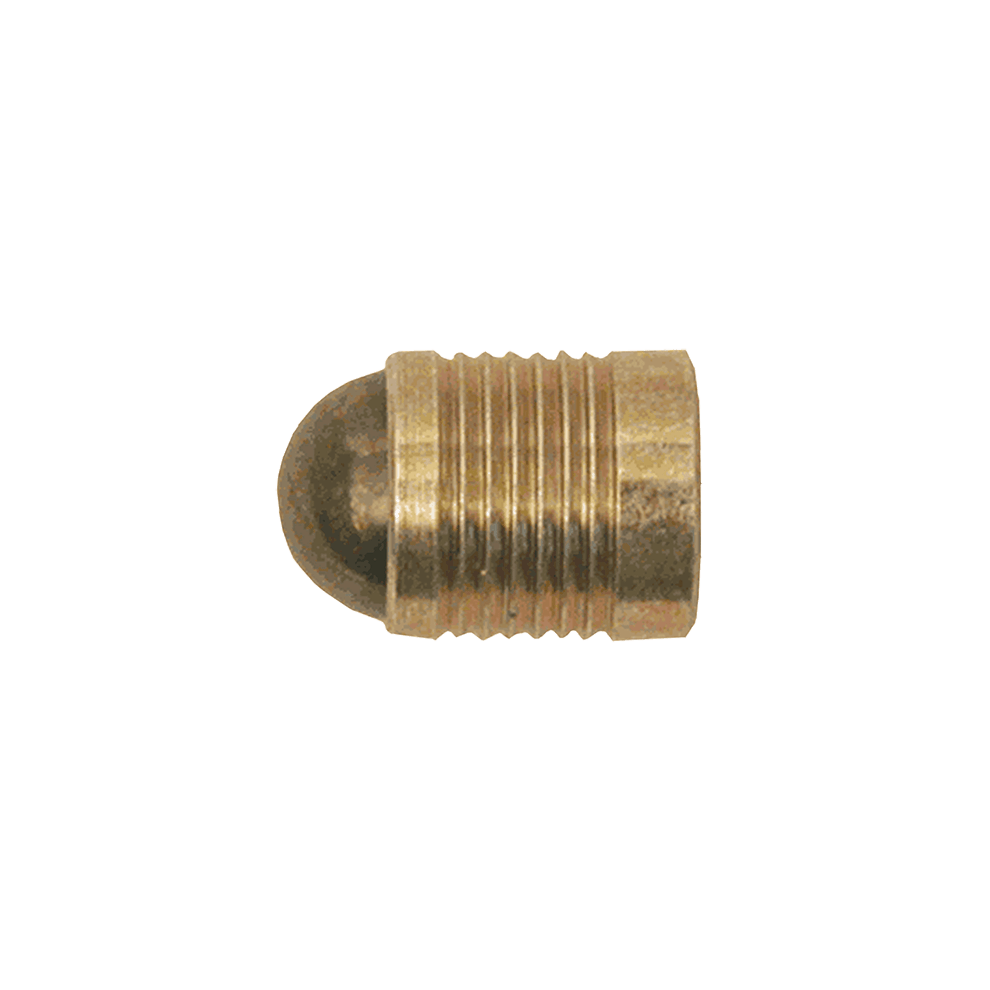

Use to plug the end of a drilled manifold passage. Driving the ball into place after insertion provides leak-free metal-to-metal sealing. Available in three diameters for different passage diameters:

6mm (.208 max passage dia)

8mm (.291 max passage dia)

10mm (.370 max passage dia)

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Inserted

Finished Installation

Installation

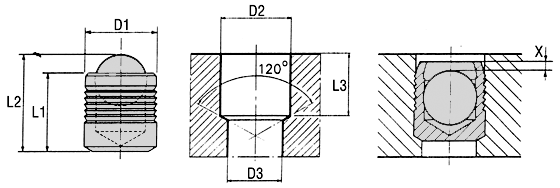

Drill the end of the fluid passage to D2 diameter, L3 deep. Insert Expanding Plug to bottom of drill point. Drive ball to depth X shown in drawing for proper sealing. Do not use sealing compound or teflon tape.

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Steel	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Expanding Plugs

Part No.	Size	Max. operating pressure (psi)	D1	D2+.0041-.000	D3 Max.	L1	L2	L3 Min.	x +/-.008	Installation Tool for Expanding Plug
CLR-916-F	1 Small	7500	6mm	.236	.208	.256	.339	.248	.016	CLR-HT-MBM-060
CLR-906-F	2 Medium	7500	8mm	.315	.291	.335	.461	.327	.012	CLR-HT-MBM-080
CLR-926-F	3 Large	7500	10mm	.394	.370	.433	.598	.425	.016	CLR-HT-MBM-100
