Carr Lock® Subplates

Carr Lock System

Save to My Project

What is this?

Product Information

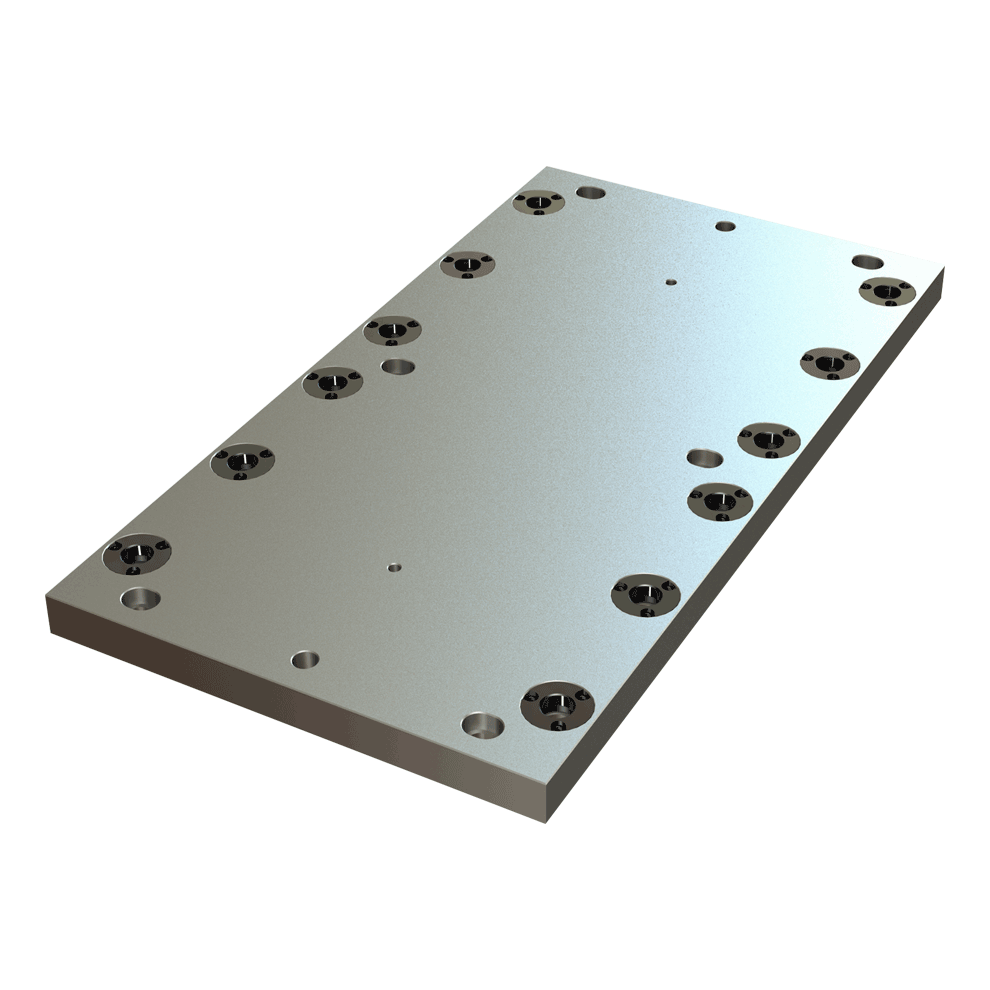

Carr Lock® Subplates are precision-machined steel plates with Carr Lock® Receiver Bushings installed in a standard pattern. These subplates serve as the foundation of an efficient quick-change fixturing system. Subplates should generally be large enough to cover most of the machine table, for maximum fixture flexibility, but should never extend beyond the machine table. For maximum quick-change benefits, subplates are usually left permanently on the machine table while only the mounted fixtures or vises are exchanged.

Contact Customer Service
Contact Customer Service

Browse our Selection of Carr Lock® Subplates

Carr Lock® Subplates for HAAS® Mini Mill (12 x 14)

Carr Lock® Subplates for HAAS® VF-1 (14 x 26)

Carr Lock® Subplates for HAAS® VF-2 (14 x 36)

Carr Lock® Subplates (400 x 400mm)

Carr Lock® Subplates for HAAS® VF-1YT (16 x 26) Version 00

Carr Lock® Subplates for HAAS® VF-1YT (16 x 26) Version 01

Carr Lock® Subplates for HAAS® VF-2YT (16 x 36)

Carr Lock® Subplates (500 x 1000mm)
