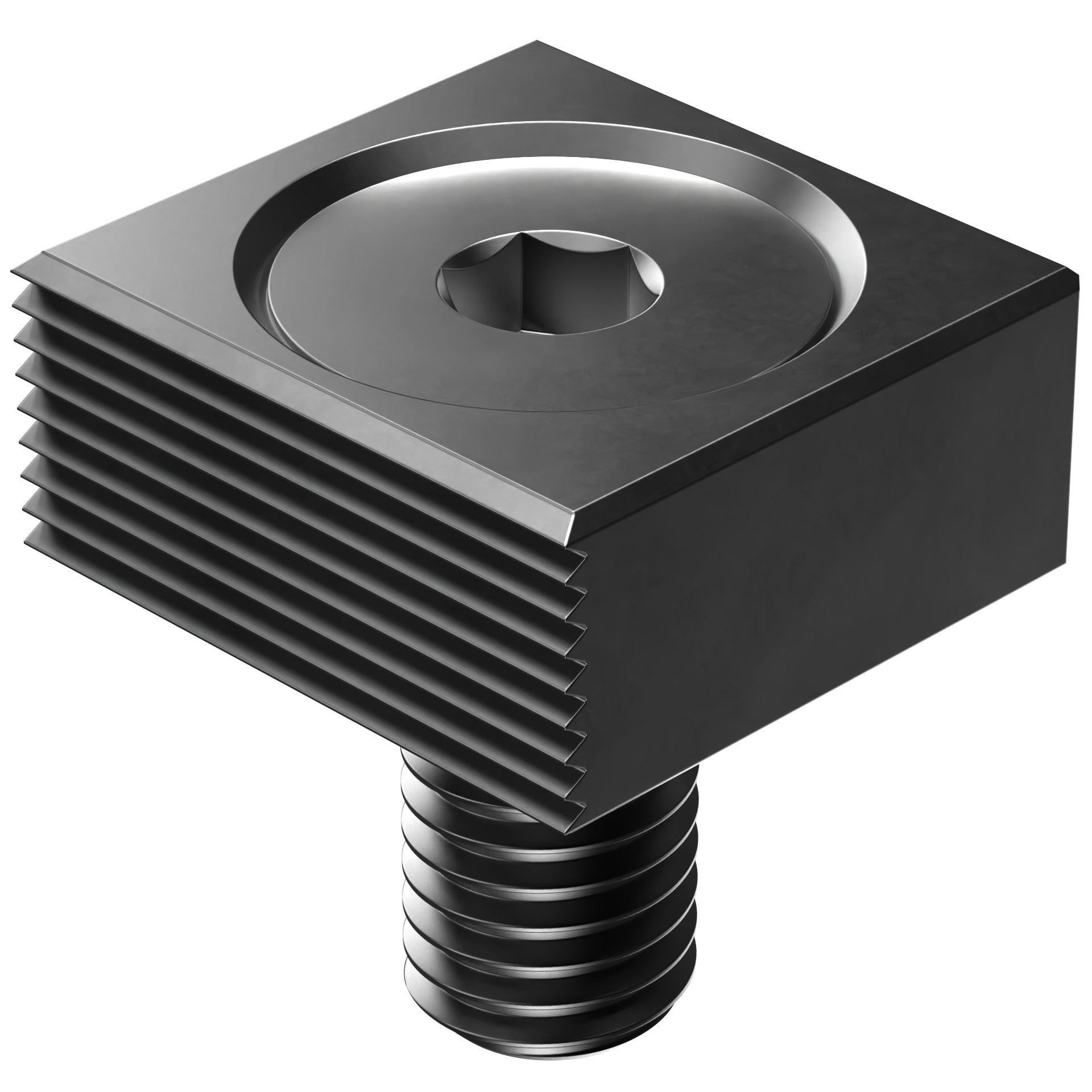

CL-6-TV  •  Tiny Vise® Edge Clamps

Edge Clamps

Pricing & Availability

TINY VISE EDGE CLAMP

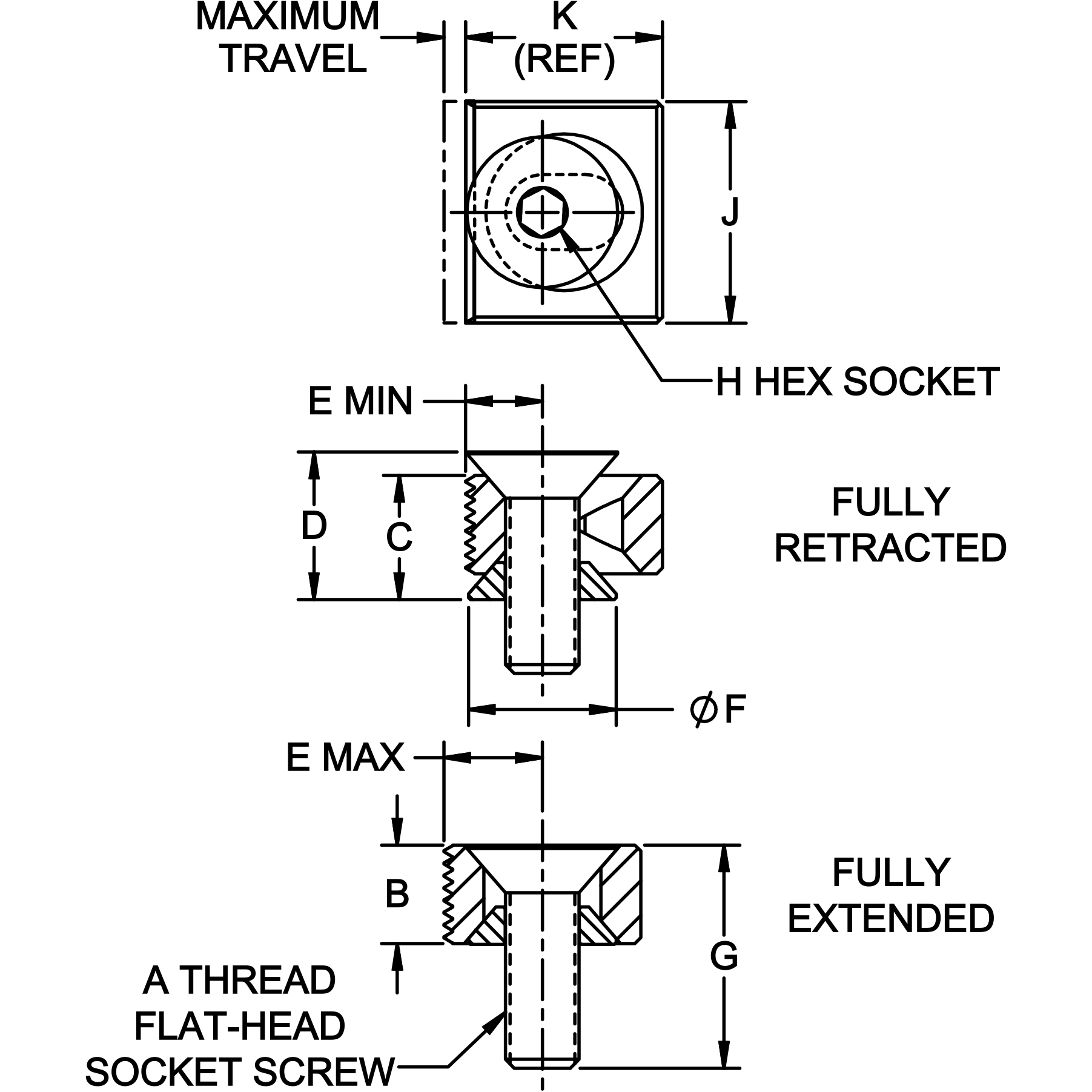

Part Specifications

Part NumberA
THREAD
BCDE
MIN
E
MID
RANGE
E
MAX
F
DIA
GHJKMAX
TRAVEL
RECOM-
MENDED
TORQUE
(ft-lbs)
APPROX
HORIZONTAL
CLAMPING
FORCE AT
RECOM-
MENDED
TORQUE
(lbs)
CL-6-TV3/8-16.500.500.619.390.445.500.7421-1/87/321-1/81.000.1104.6370

Three Dimensional (3D) View


Downloadable CAD Files

CAD
MODELS

Download CAD Model
