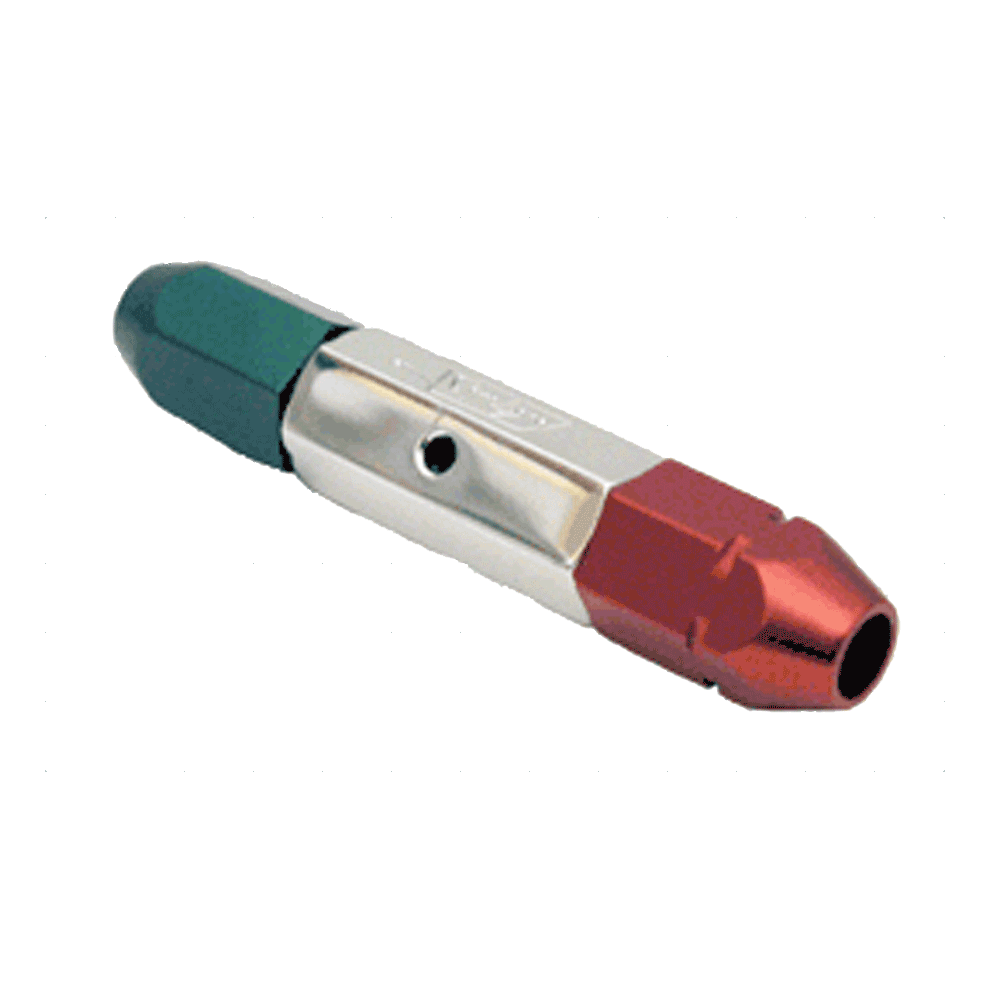

Gage Handles – Double End (Green and Red)

These double-end handles securely hold many types of gages and pins. Color-coded screw-on ends identify GO (green) and NO-GO gages (red). The red end also has an identification groove. Pin extension can be set at any length. All handles have a .129"-diameter cable hole for permanently attaching the handle with a cable assembly. Gage Handles are available in eight sizes, to fit pins from .061 to 1.010" diameter. Made in USA.

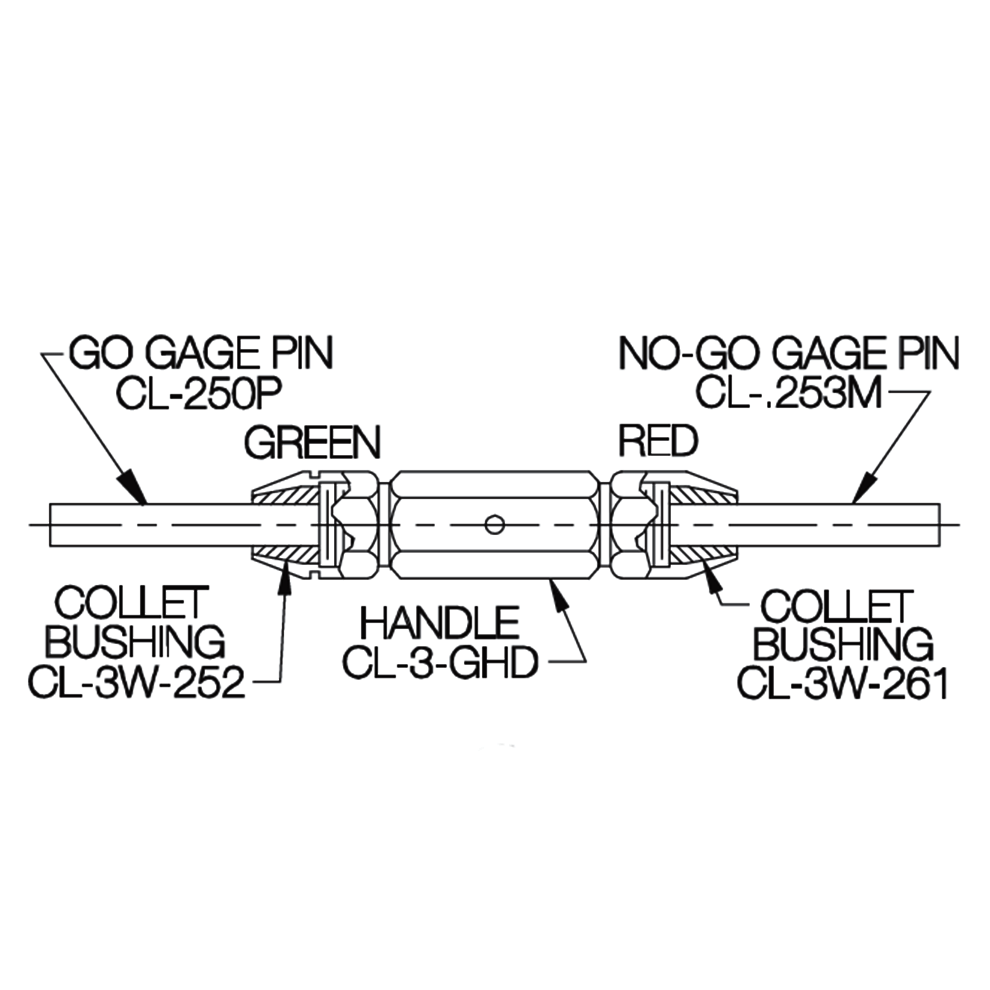

Two Collet Bushings must be ordered separately for each double-end handle. Each bushing covers a range of several pin sizes. Collet Bushings firmly hold gage pins against rotational and lateral forces when the ends are tightened.

Application Information

Collet Bushing

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Gage Handles – Single End (Green)	Aluminum	-	Anodized	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

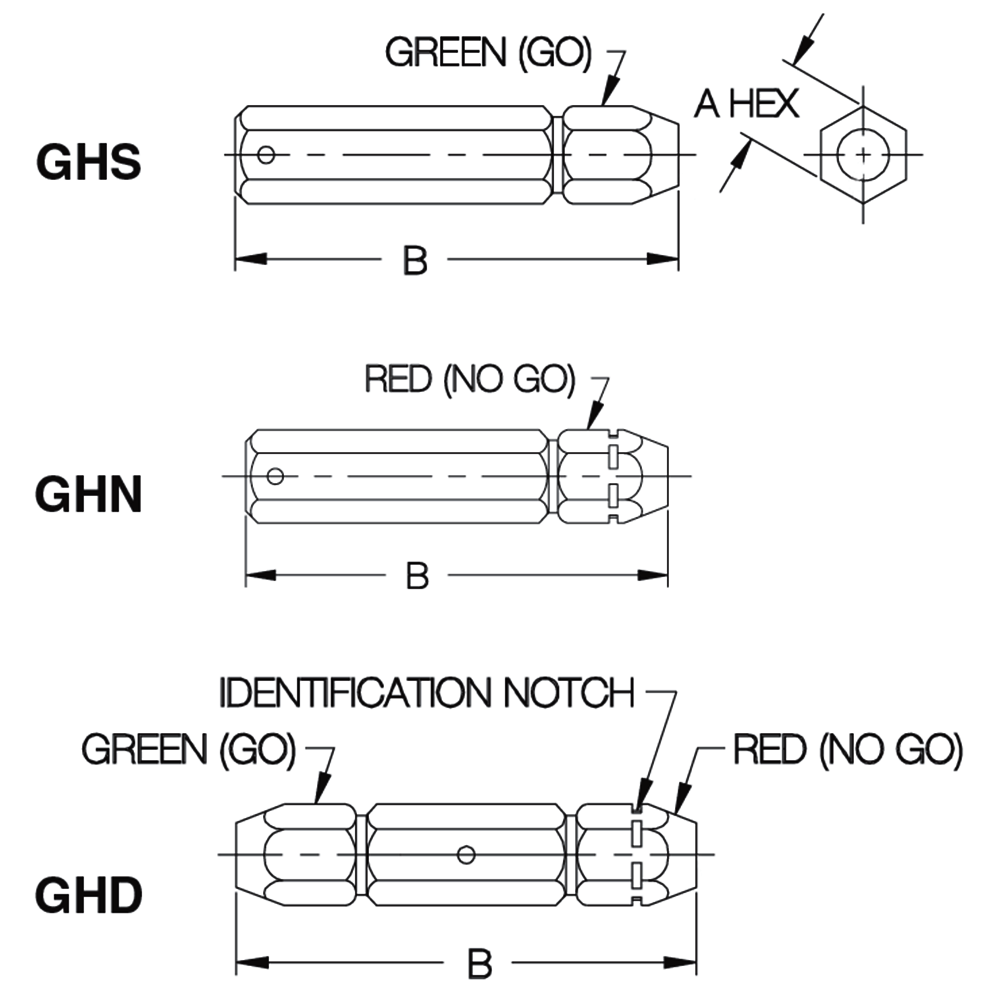

Gage Handles – Double End (Green and Red)

Double End Handle

QUANTITY	PART NO.	FITS PIN DIAMETERS	A	B
	CL-1-GHD	.061 to .075	1/4	2-1/4
	CL-2-GHD	.076 to .180	3/8	2-11/16
	CL-3-GHD	.181 to .281	9/16	3-5/16
	CL-4-GHD	.282 to .406	11/16	3-9/16
	CL-5-GHD	.407 to .510	13/16	4-1/4
	CL-6-GHD	.511 to .635	15/16	4-1/2
	CL-7-GHD	.636 to .760	1-1/16	4-5/8
	CL-8-GHD	.761 to 1.010	1-1/4	5-1/4

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Collet Bushing

QUANTITY	PART NO.	FITS PIN DIAMETERS	FITS DOUBLE-END GAGE HANDLE (GREEN & RED)
	CL-1W-065	.061 to .065	CL-1-GHD
	CL-1W-070	.066 to .070	CL-1-GHD
	CL-1W-075	.071 to .075	CL-1-GHD
	CL-2W-082	.076 to .082	CL-2-GHD
	CL-2W-089	.083 to .089	CL-2-GHD
	CL-2W-096	.090 to .096	CL-2-GHD
	CL-2W-103	.097 to .103	CL-2-GHD
	CL-2W-110	.104 to .110	CL-2-GHD
	CL-2W-117	.111 to .117	CL-2-GHD
	CL-2W-124	.118 to .124	CL-2-GHD
	CL-2W-131	.125 to .131	CL-2-GHD
	CL-2W-138	.132 to .138	CL-2-GHD
	CL-2W-145	.139 to .145	CL-2-GHD
	CL-2W-152	.146 to .152	CL-2-GHD
	CL-2W-159	.153 to .159	CL-2-GHD
	CL-2W-166	.160 to .166	CL-2-GHD
	CL-2W-173	.167 to .173	CL-2-GHD
	CL-2W-180	.174 to .180	CL-2-GHD
	CL-3W-188	.181 to .188	CL-3-GHD
	CL-3W-196	.189 to .196	CL-3-GHD
	CL-3W-204	.197 to .204	CL-3-GHD
	CL-3W-212	.205 to .212	CL-3-GHD
	CL-3W-220	.213 to .220	CL-3-GHD
	CL-3W-228	.221 to .228	CL-3-GHD
	CL-3W-236	.229 to .236	CL-3-GHD
	CL-3W-244	.237 to .244	CL-3-GHD
	CL-3W-252	.245 to .252	CL-3-GHD
	CL-3W-261	.253 to .261	CL-3-GHD
	CL-3W-271	.262 to .271	CL-3-GHD
	CL-3W-281	.272 to .281	CL-3-GHD
	CL-4W-291	.282 to .291	CL-4-GHD
	CL-4W-301	.292 to .301	CL-4-GHD
	CL-4W-311	.302 to .311	CL-4-GHD
	CL-4W-321	.312 to .321	CL-4-GHD
	CL-4W-331	.322 to .331	CL-4-GHD
	CL-4W-341	.332 to .341	CL-4-GHD
	CL-4W-351	.342 to .351	CL-4-GHD
	CL-4W-361	.352 to .361	CL-4-GHD
	CL-4W-371	.362 to .371	CL-4-GHD
	CL-4W-382	.372 to .382	CL-4-GHD
	CL-4W-394	.383 to .394	CL-4-GHD
	CL-4W-406	.395 to .406	CL-4-GHD
	CL-5W-420	.407 to .420	CL-5-GHD
	CL-5W-435	.421 to .435	CL-5-GHD
	CL-5W-450	.436 to .450	CL-5-GHD
	CL-5W-465	.451 to .465	CL-5-GHD
	CL-5W-480	.466 to .480	CL-5-GHD
	CL-5W-495	.481 to .495	CL-5-GHD
	CL-5W-510	.496 to .510	CL-5-GHD
	CL-6W-532	.511 to .532	CL-6-GHD
	CL-6W-547	.533 to .547	CL-6-GHD
	CL-6W-563	.548 to .563	CL-6-GHD
	CL-6W-579	.564 to .579	CL-6-GHD
	CL-6W-594	.580 to .594	CL-6-GHD
	CL-6W-610	.595 to .610	CL-6-GHD
	CL-6W-625	.611 to .625	CL-6-GHD
	CL-6W-635	.626 to .635	CL-6-GHD
	CL-7W-656	.636 to .656	CL-7-GHD
	CL-7W-672	.657 to .672	CL-7-GHD
	CL-7W-688	.673 to .688	CL-7-GHD
	CL-7W-704	.689 to .704	CL-7-GHD
	CL-7W-719	.705 to .719	CL-7-GHD
	CL-7W-735	.720 to .735	CL-7-GHD
	CL-7W-750	.736 to .750	CL-7-GHD
	CL-7W-760	.751 to .760	CL-7-GHD
	CL-8W-781	.761 to .781	CL-8-GHD
	CL-8W-812	.782 to .812	CL-8-GHD
	CL-8W-843	.813 to .843	CL-8-GHD
	CL-8W-875	.844 to .875	CL-8-GHD
	CL-8W-906	.876 to .906	CL-8-GHD
	CL-8W-937	.907 to .937	CL-8-GHD
	CL-8W-968	.938 to .968	CL-8-GHD
	CL-8W-1000	.969 to 1.010	CL-8-GHD
