Gage Handles – Single End (Red)

Hammers & Tools

Save to My Project

What is this?

Product Information

These single-end handles securely hold many types of gages and pins. Pin extension can be set at any length. All handles have a .129"-diameter cable hole for permanently attaching the handle with a cable assembly. Gage Handles are available in four sizes, to fit pins from .076 to .510 diameter. Made in USA.

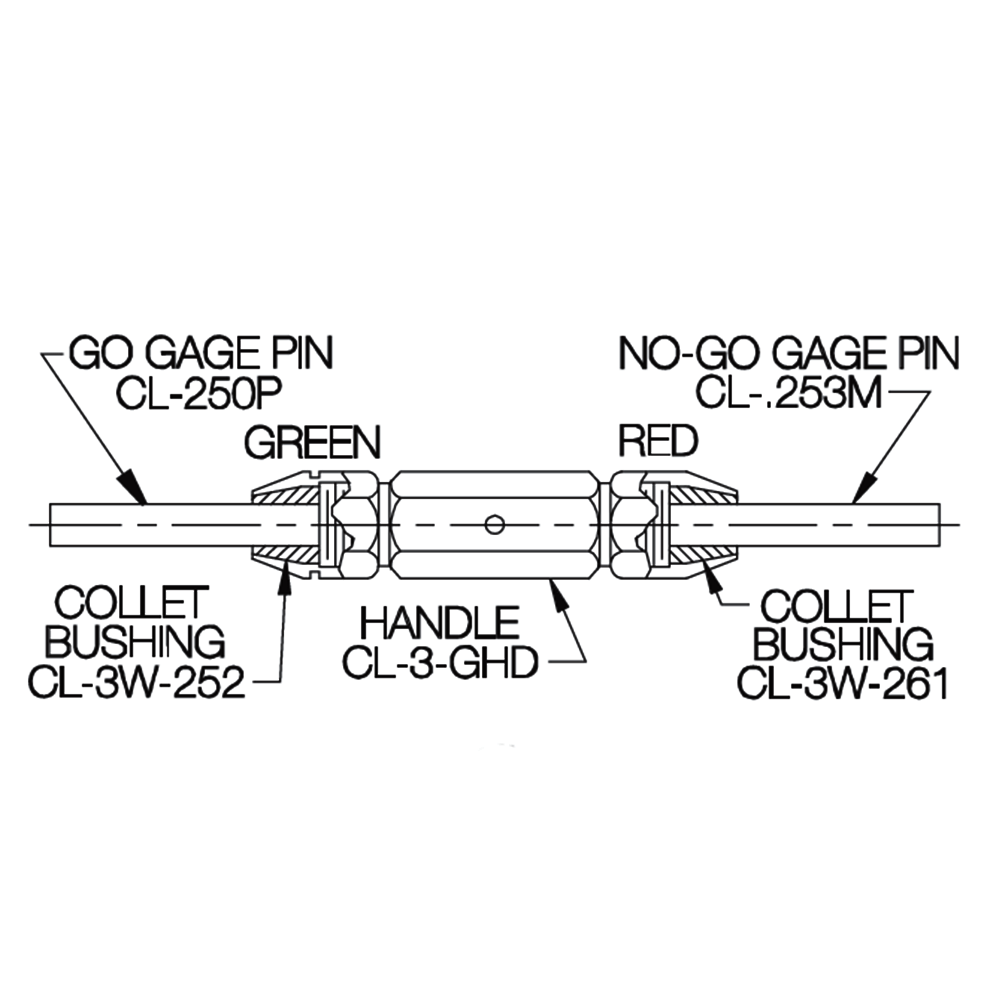

One Collet Bushing must be ordered separately for each single-end handle. Each bushing covers a range of several pin sizes. Collet Bushings firmly hold gage pins against rotational and lateral forces when the ends are tightened.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Collet Bushing

Material

Aluminum, anodized. DFARS and RoHS compliant.

Click here for detailed material and finish specifications.

Gage Handles – Single End (Red)

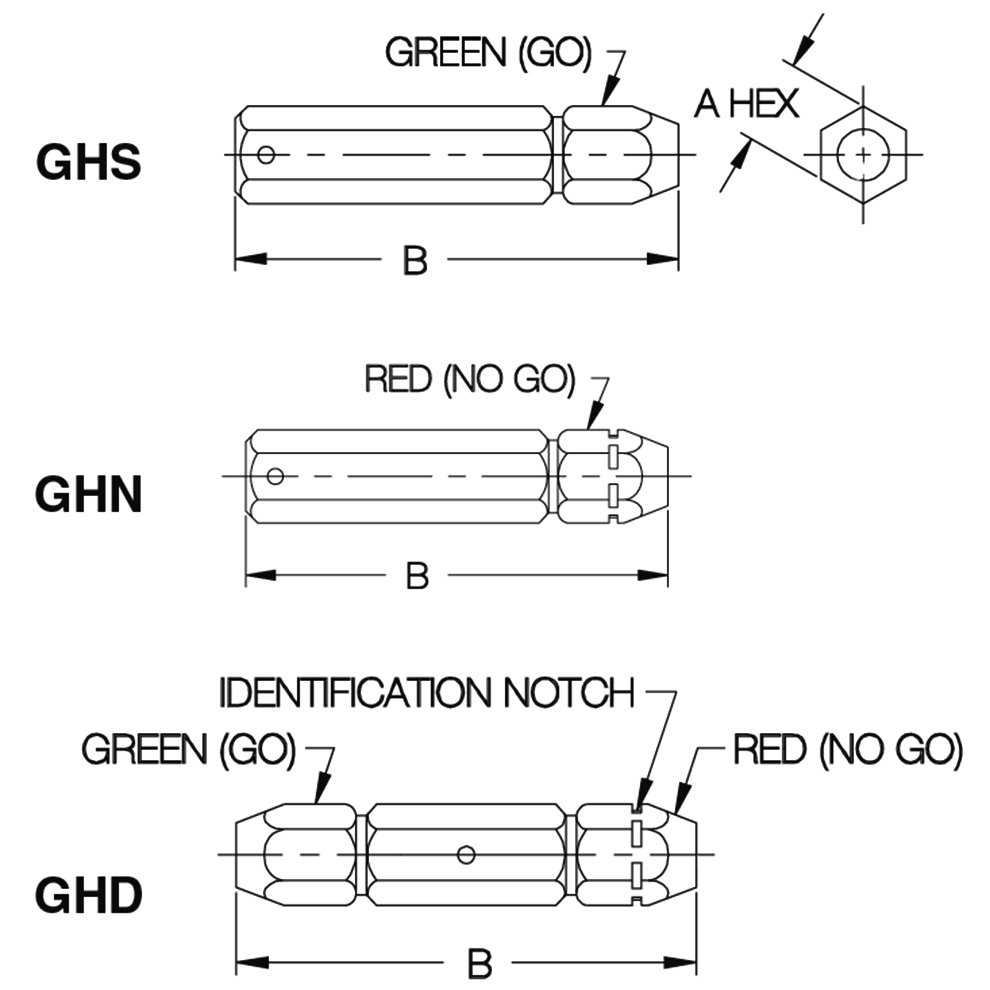

PART NO.	FITS PIN DIAMETERS	A	B
CL-2-GHN	.076 to .180	3/8	2-11/16
CL-3-GHN	.181 to .281	9/16	3-5/16
CL-4-GHN	.282 to .406	11/16	3-9/16
CL-5-GHN	.407 to .510	13/16	4-1/4

Check Price & Availability
