No-Rebound Drop Hammers

Hammers & Tools

Product Information

No-Rebound Drop Hammers provide the impact of a normal hammer even when access is restricted. No-Rebound Hammers deliver full impact, about 50% greater than a standard hammer. The housing is filled with special steel pellets that transfer momentum to the impact point. Ideal for assembling machine parts without damage. Speeds up work while reducing fatigue. Allows better hammer control by absorbing the bounce. Made in Germany.

Available in four sizes (face diameters), in the following weights:

20mm (.78") 0.5 lbs

30mm (1.18") 1.0 lbs

40mm (1.57") 1.8 lbs

50mm (1.96") 2.8 lbs

Application Information

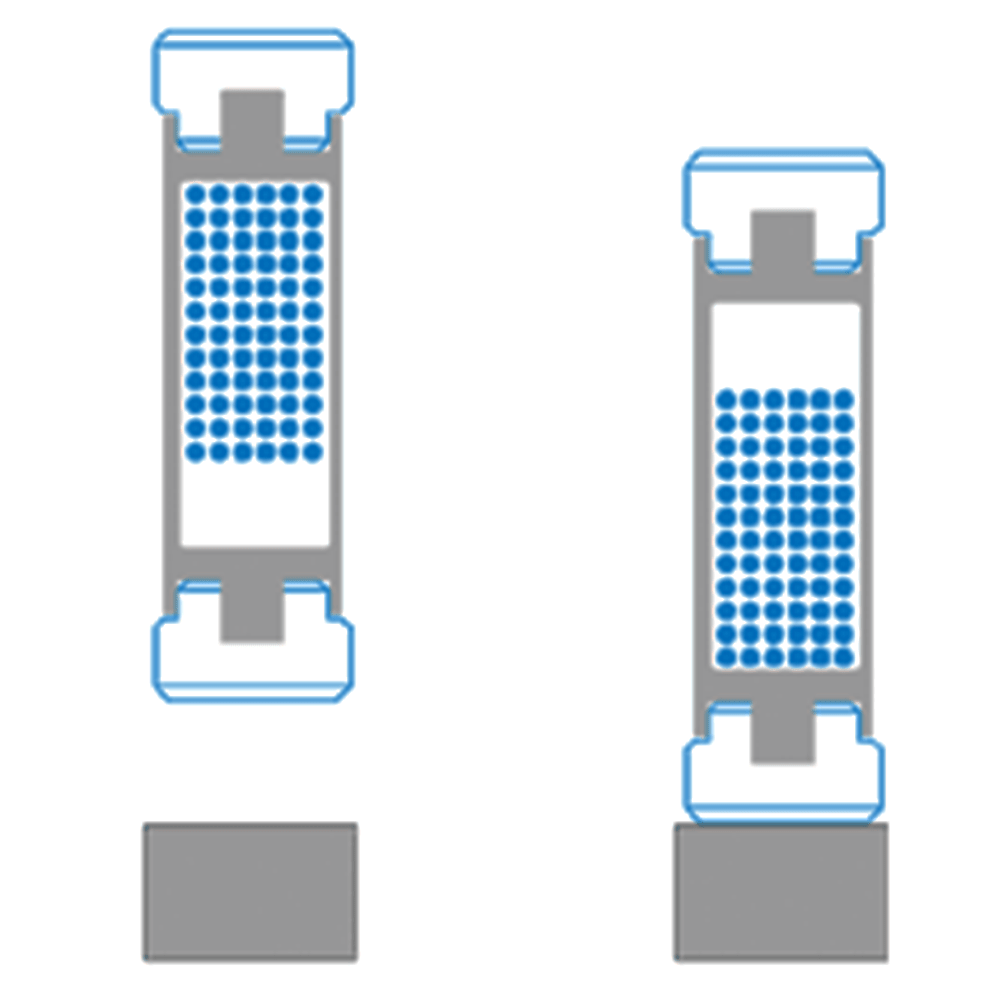

No-Rebound Drop Hammers are filled with special steel pellets that transfer momentum to the impact point.

Inserts

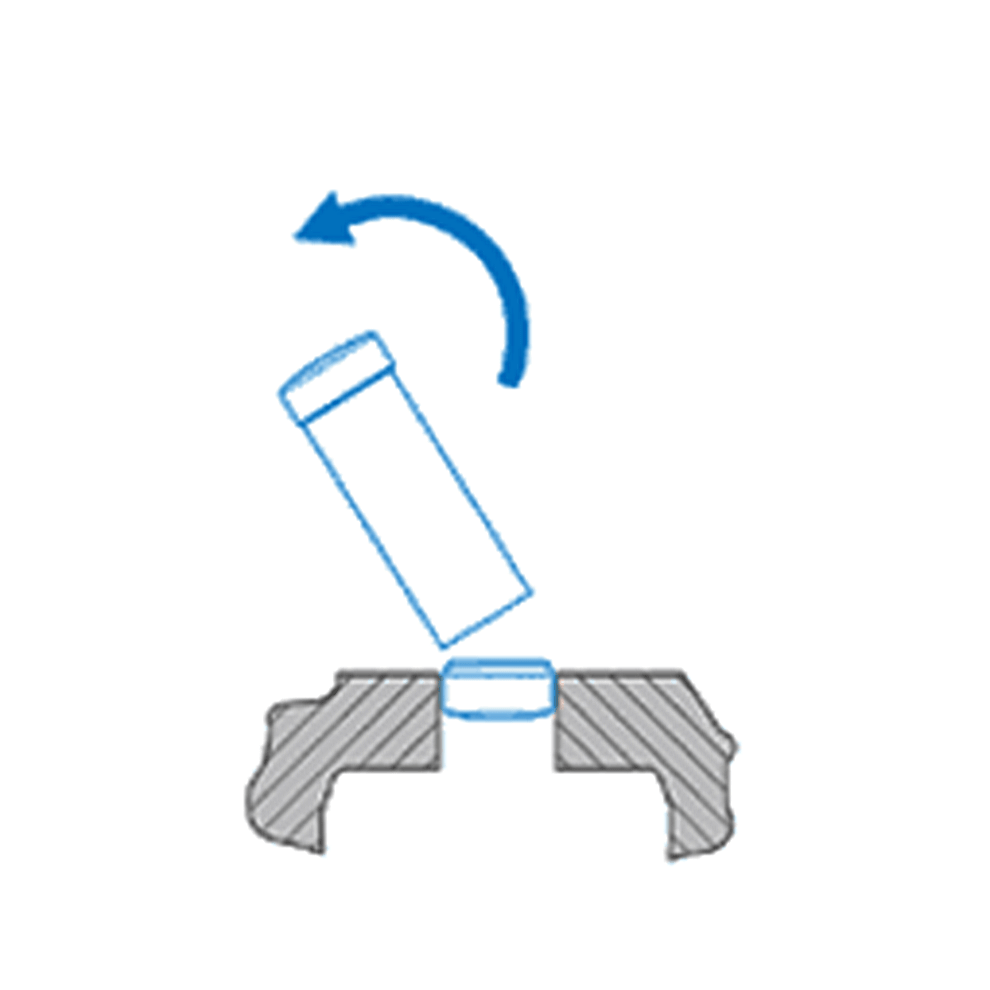

Using a vise to remove old inserts

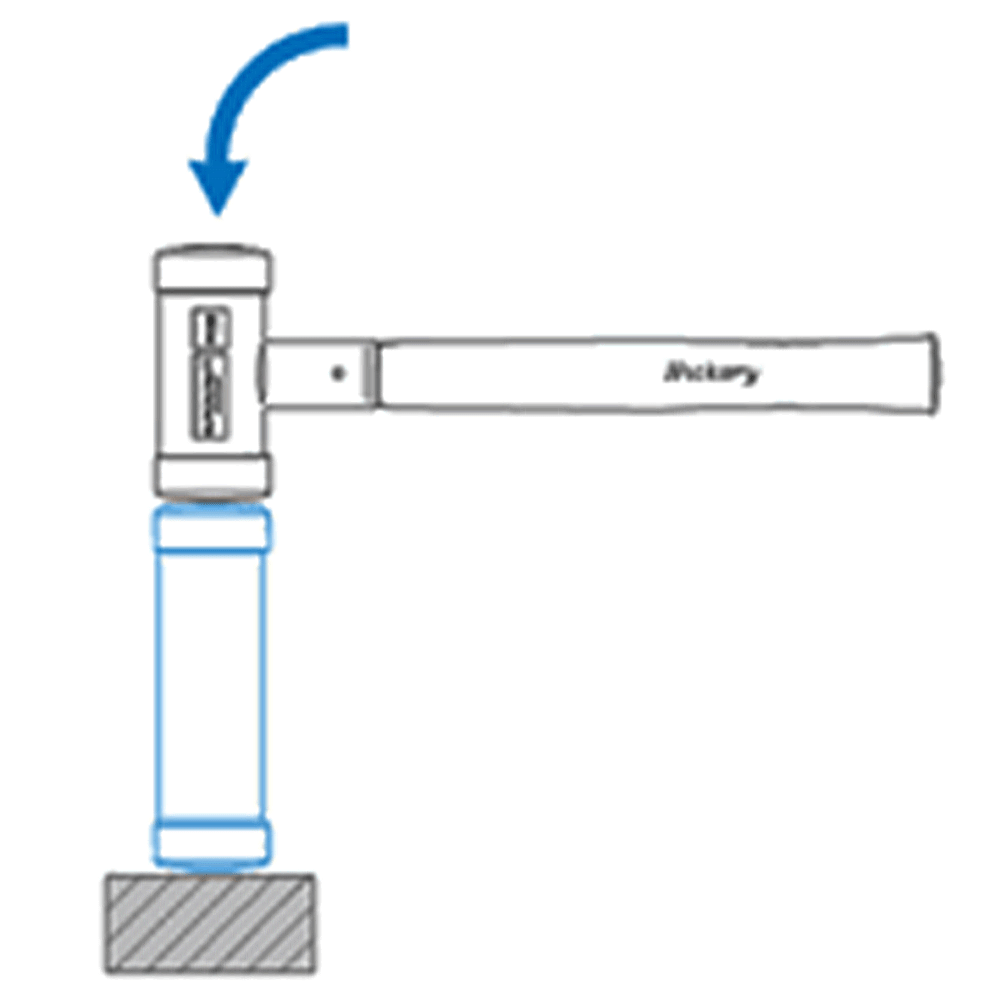

Using a hammer to install new inserts

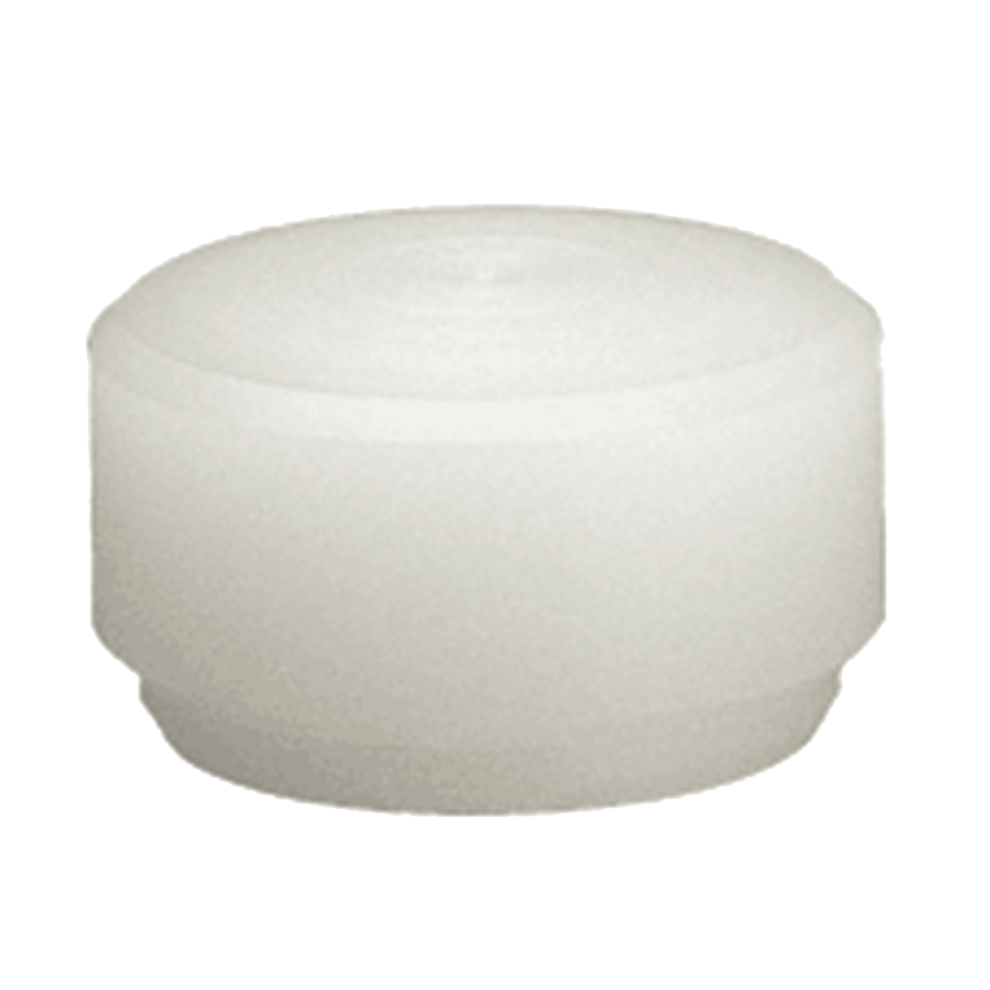

No-Rebound Drop Hammers have replaceable nylon inserts. These nylon inserts are hard, grease and oil resistant, highly elastic, and have superior strike effectiveness. Applications include assembly operations, metalworking, tooling, positioning of workpieces, automotive assembly and repair work, joining of workpieces, sheet metal working, dent removal, mold construction, and assembly of sharp-edged workpieces.

Safety Precautions

Never allow the hammer's striking faces to wear down to the point where the hammer housing makes contact with the work surface, as irreparable damage could result. Always wear safety goggles when using a hammer or any striking tool. Bystanders must also wear safety goggles. Never strike the hammer with or against another striking tool, hardened nail, or any other hard object that could cause damage. Chipping could occur, resulting in possible eye or other injury. Discard any chipped or damaged hammer.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Housing	Steel assembly containing steel pellets	-	-	✔	✔
Insert	Nylon	-	natural white color, hardness 68-78 Shore D	✔	✔
