Soft-Face Punches

Hammers & Tools

Product Information

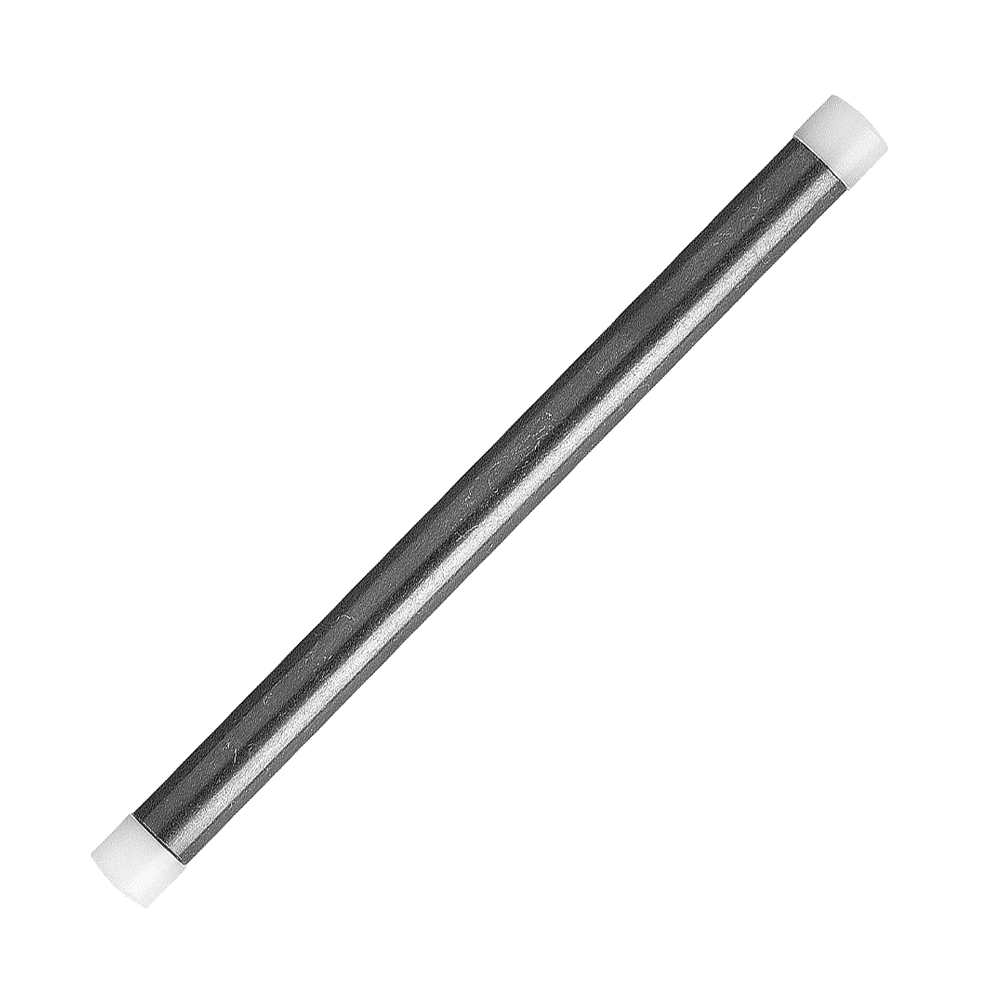

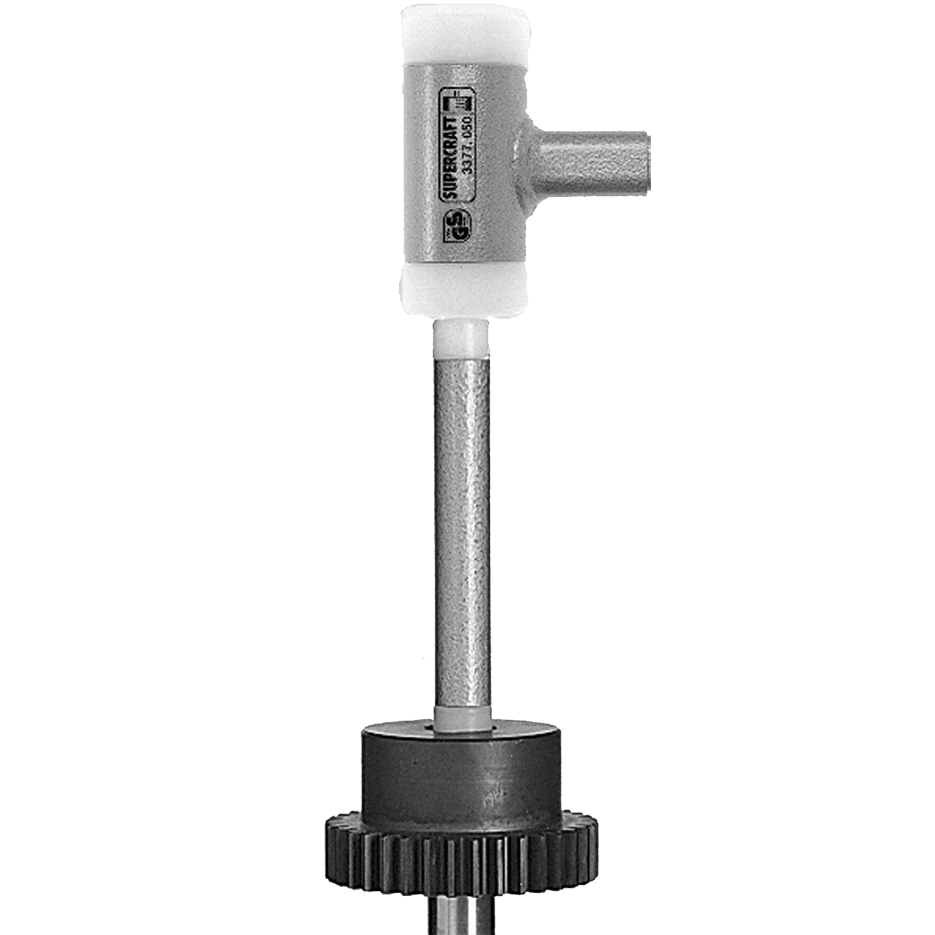

Soft-Face Punches safely extend the reach of a hammer when access is restricted. Transfers impact to difficult-to-reach places. Made in Germany.

Available in two sizes (face diameters):

10mm (.39")

15mm (.59")

Application Information

Inserts

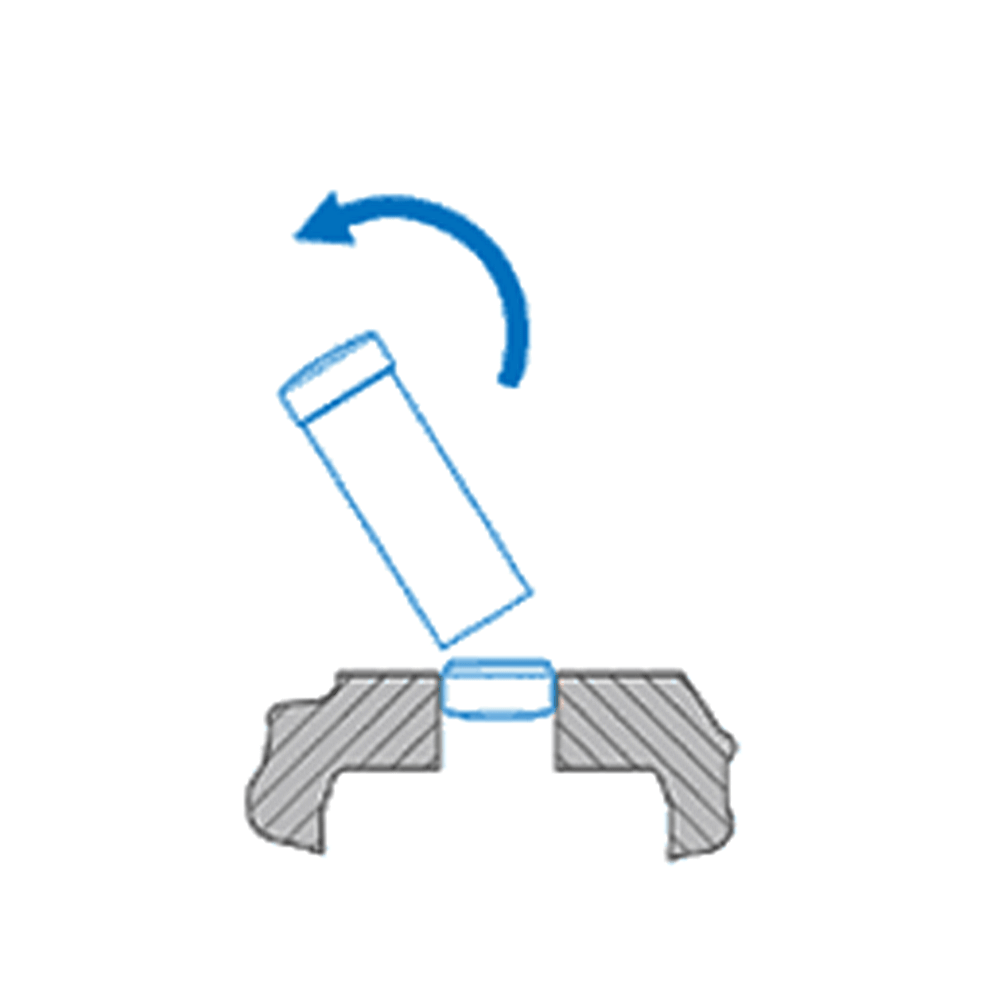

Using a vise to remove old inserts

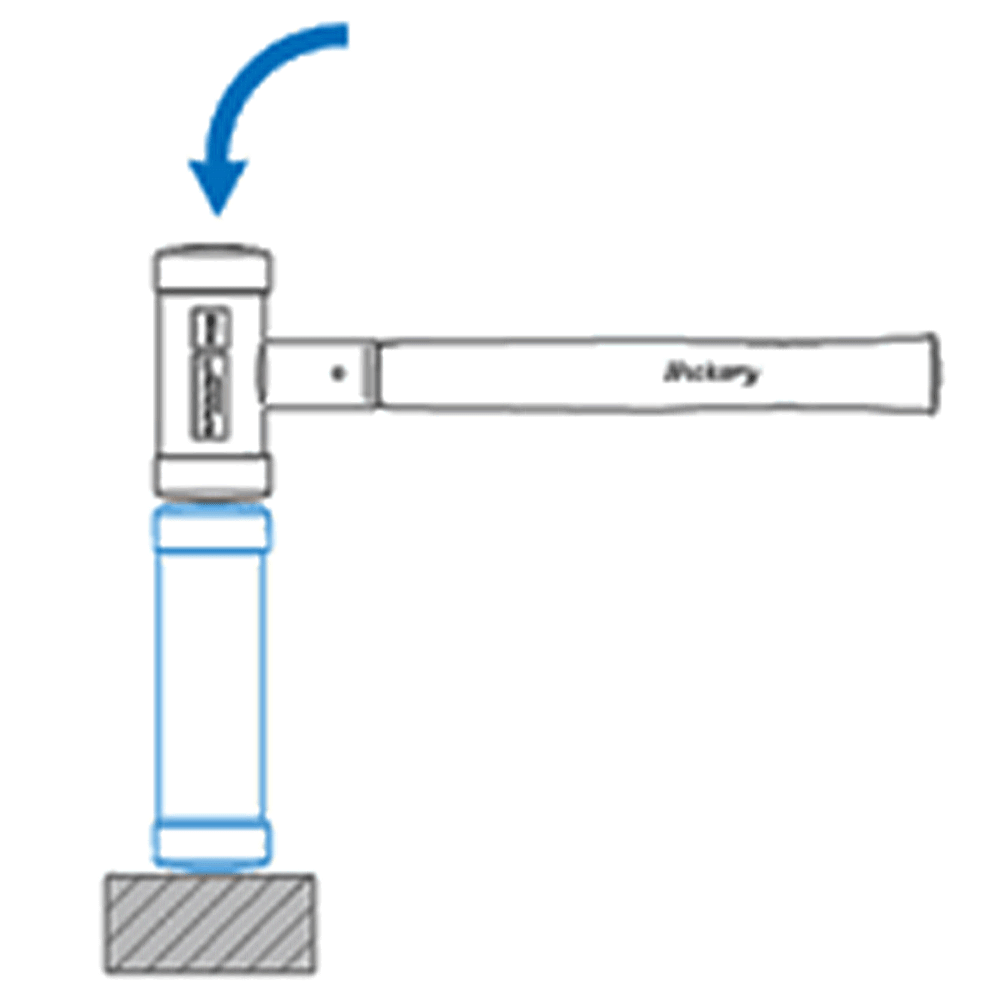

Using a hammer to install new inserts

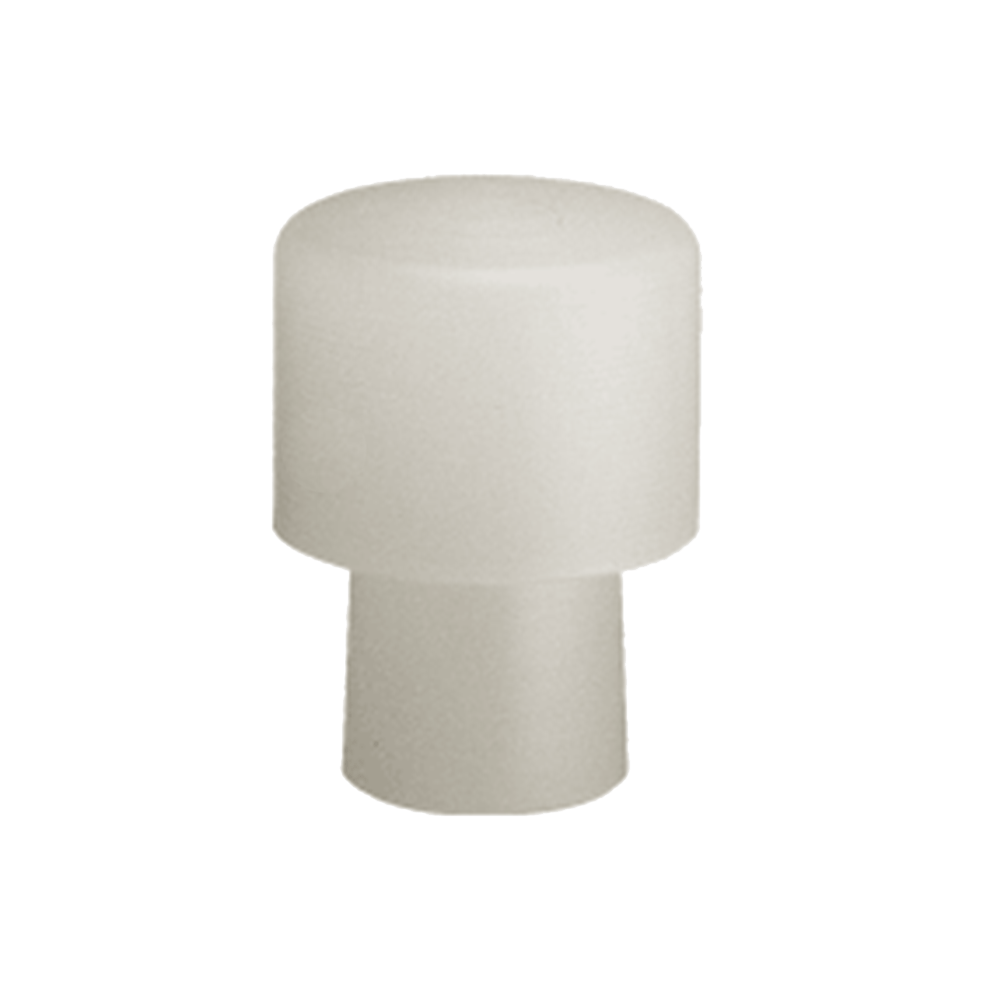

Soft-Face Punches have replaceable nylon inserts. These nylon inserts are hard, grease and oil resistant, highly elastic, and have superior strike effectiveness. Applications include assembly operations, metalworking, tooling, automotive assembly and repair work, joining of workpieces, sheet metal working, dent removal, and assembly of sharp-edged workpieces.

Safety Precautions

Never allow the punch's striking faces to wear down to the point where the housing makes contact with the work surface, as irreparable damage could result. Always wear safety goggles when using a hammer or any striking tool. Bystanders must also wear safety goggles. Never strike a hammer with or against another striking tool, hardened nail, or any other hard object that could cause damage. Chipping could occur, resulting in possible eye or other injury. Discard any chipped or damaged hammer or punch.
