Hand Wheels – Two-Spoke Square Design (Aluminum) with Tapped Hole for Handle

Handles, Knobs & Screw Clamps

Save to My Project

What is this?

Product Information

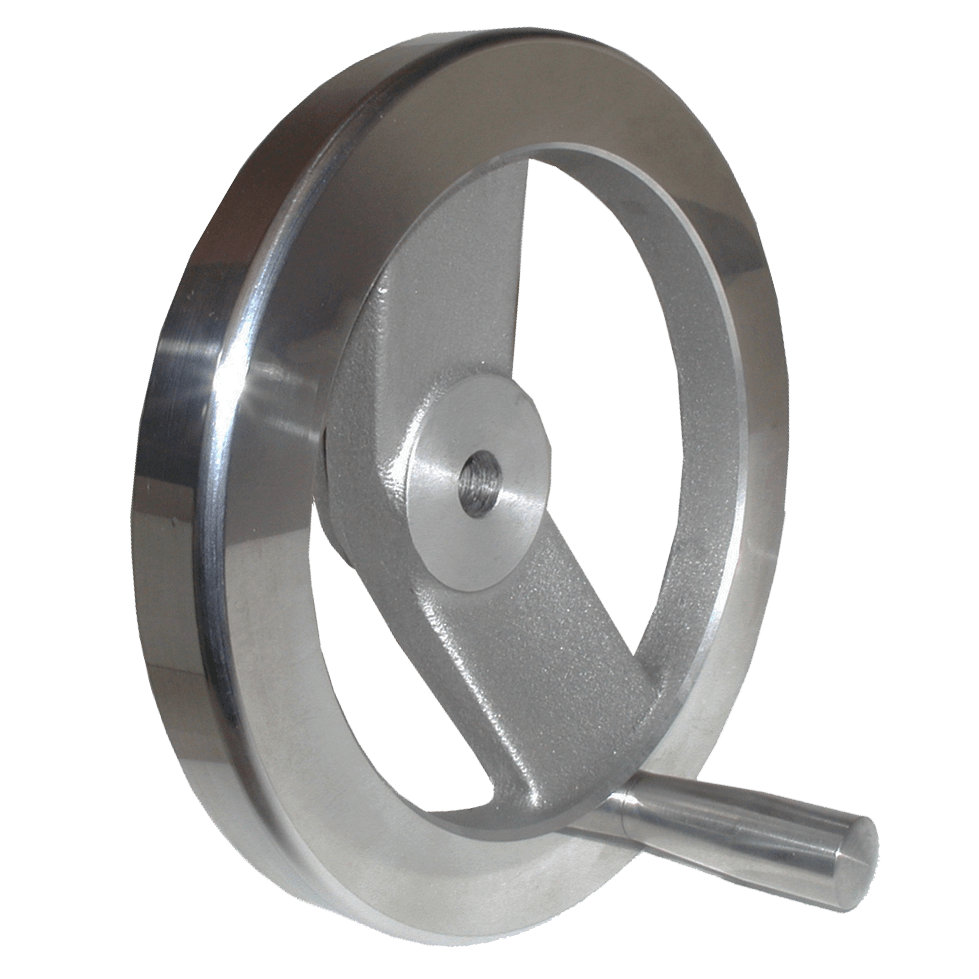

Hand Wheels – Two-Spoke Square Design (Aluminum) with Tapped Hole for Handle

High-quality, modern-design aluminum Hand Wheel with two spokes. Rim is machined and highly polished on all sides. Spokes are shot blasted to a satin finish. Available in four sizes, from 5" to 10" diameter. These Hand Wheels are finish-bored to the standard shaft diameter for their size, exactly concentric and square to the rim, and are tapped for a Solid or Revolving Handle (order separately). See Related Products below for matching solid-design stainless steel handles, and other handle options.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Aluminum	-	Gravity Die Cast	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Hand Wheels – Two-Spoke Square Design (Aluminum) with Tapped Hole for Handle

Inch

PART NO.	A DIA	B DIA	C	D	E	K DIA	L THREAD	MATCHING HANDLE SIZE
CL-50-HWTS-A	4.92	1.22	.59	1.30	.59	.375	1/4-20	SIZE 2
CL-60-HWTS-A	6.30	1.42	.71	1.54	.75	.500	5/16-18	SIZE 3
CL-80-HWTS-A	7.87	1.65	.81	1.77	.83	.625	3/8-16	SIZE 4
CL-100-HWTS-A	9.84	1.89	.91	2.01	.91	.625	3/8-16	SIZE 4

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available
