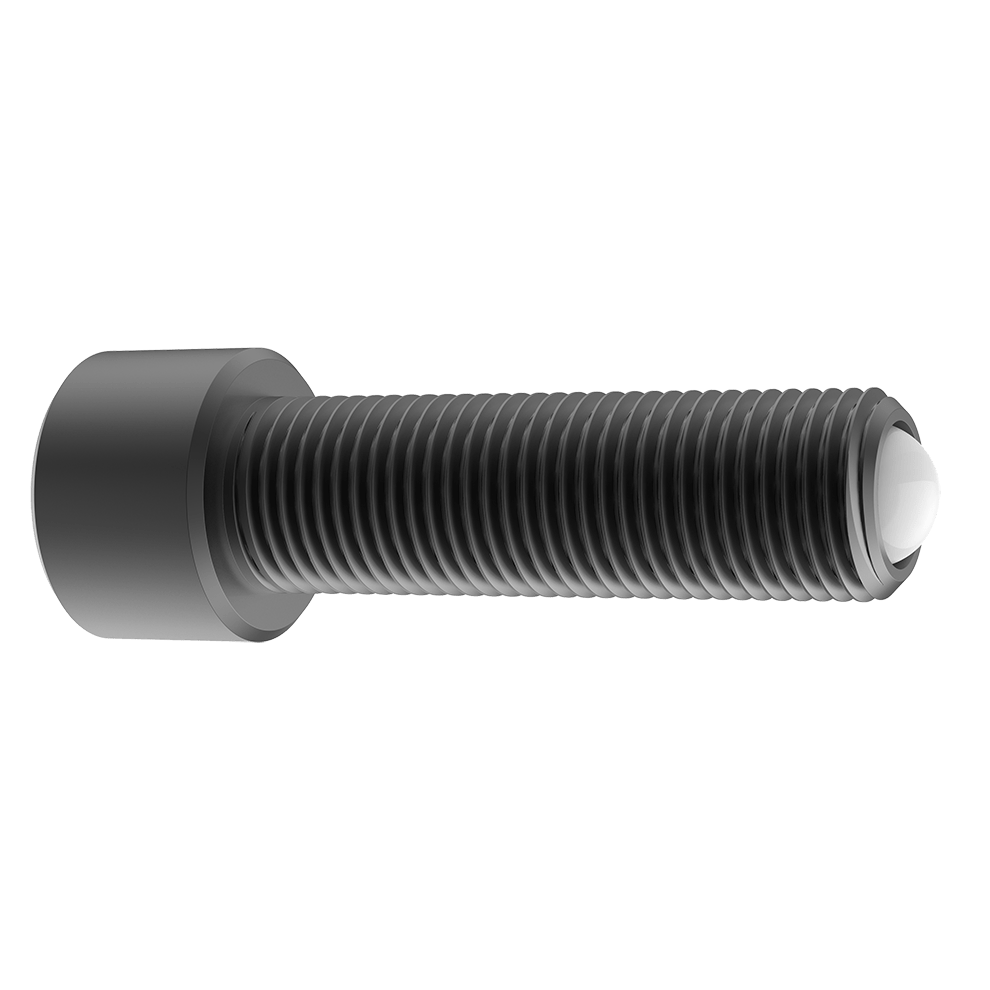

Ball-End Thrust Screws – Rolling Ball (Delrin)

Handles, Knobs & Screw Clamps

Inch
QUANTITY PART NO. A
THREAD
B C D
DIA
E F
DIA
G
CL-4-BTSN-1.00 1/4-20 1.03 1 5/32 .25 .38 3/16
CL-4-BTSN-2.00 1/4-20 2.03 2 5/32 .25 .38 3/16
CL-6-BTSN-2.00 3/8-16 2.06 2 1/4 .38 .56 5/16
CL-6-BTSN-3.00 3/8-16 3.06 3 1/4 .38 .56 5/16
CL-8-BTSN-3.00 1/2-13 3.12 3 11/32 .50 .75 3/8
CL-8-BTSN-4.00 1/2-13 4.12 4 11/32 .50 .75 3/8
CL-80-BTSN-1.75 1/2-20 Fine 1.87 1-3/4 11/32 .50 .75 3/8
CL-10-BTSN-4.00 5/8-11 4.15 4 7/16 .63 .94 1/2
CL-10-BTSN-5.00 5/8-11 5.15 5 7/16 .63 .94 1/2
Metric
QUANTITY PART NO. A
THREAD
THREAD
PITCH
(mm)
B
(mm)
C
(mm)
D
DIA
(mm)
E
(mm)
F
DIA
(mm)
G
(mm)
CLM-6-BTSN-25 M6 1 26 25 3.97 6 10 5
CLM-6-BTSN-50 M6 1 51 50 3.97 6 10 5
CLM-10-BTSN-50 M10 1.5 52.4 50 7.14 10 16 8
CLM-10-BTSN-75 M10 1.5 77.4 75 7.14 10 16 8
CLM-12-BTSN-75 M12 1.75 77.7 75 8.73 12 18 10
CLM-12-BTSN-100 M12 1.75 102.7 100 8.73 12 18 10
CLM-16-BTSN-100 M16 2 103.9 100 11.11 16 24 14
CLM-16-BTSN-125 M16 2 128.9 125 11.11 16 24 14
