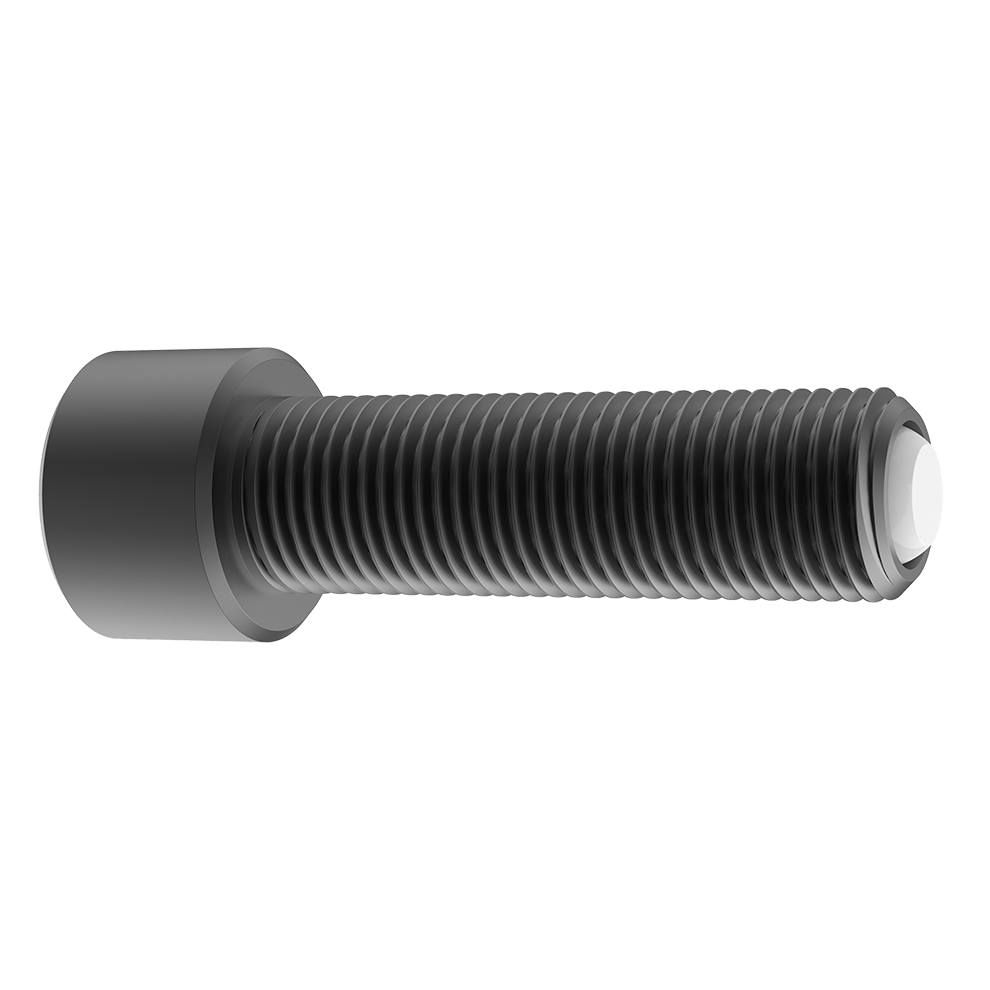

Ball-End Thrust Screws – Swivel Ball (Delrin)

Handles, Knobs & Screw Clamps

Inch
QUANTITY PART NO. A
THREAD
B C D
DIA
E F
DIA
G H
DIA
CL-6-BTSFN-2.00 3/8-16 2.03 2 1/4 .38 .56 5/16 .16
CL-6-BTSFN-3.00 3/8-16 2.03 3 1/4 .38 .56 5/16 .16
CL-8-BTSFN-3.00 1/2-13 3.06 3 11/32 .50 .75 3/8 .24
CL-8-BTSFN-4.00 1/2-13 4.06 4 11/32 .50 .75 3/8 .24
CL-80-BTSFN-1.75 1/2-20 Fine 1.81 1-3/4 11/32 .50 .75 3/8 .24
CL-10-BTSFN-4.00 5/8-11 4.06 4 7/16 .63 .94 1/2 .35
CL-10-BTSFN-5.00 5/8-11 5.06 5 7/16 .63 .94 1/2 .35
Metric
QUANTITY PART NO. A
THREAD
THREAD
PITCH
(mm)
B
(mm)
C
(mm)
D
DIA
(mm)
E
(mm)
F
DIA
(mm)
G
(mm)
H
DIA
(mm)
CLM-10-BTSFN-50 M10 1.5 51.1 50 7.14 10 16 8 5.5
CLM-10-BTSFN-75 M10 1.5 76.1 75 7.14 10 16 8 5.5
CLM-12-BTSFN-75 M12 1.75 76.5 75 8.73 12 18 10 6.1
CLM-12-BTSFN-100 M12 1.75 101.5 100 8.73 12 18 10 6.1
CLM-16-BTSFN-100 M16 2 101.6 100 11.11 16 24 14 9
CLM-16-BTSFN-125 M16 2 126.6 125 11.11 16 24 14 9
