KOSMEK Concentric Vise

KOSMEK Power Workholding,KOSMEK Power Vises

Save to My Project

What is this?

Product Information

KOSMEK Concentric Vises are hydraulic double-action workholding vises designed for high-force gripping of cylindrical workpieces, with both jaws moving simultaneously from a single hydraulic actuation. The slide block mechanism converts vertical piston motion into equal, opposing lateral movement of the two sliders, centering the workpiece on the jaw axis regardless of diameter variation. Locating repeatability in the X-axis direction is ±0.01 mm, making these vises well suited for high-accuracy machining and automated workpiece transfer applications.

Three size configurations are available: FVD1600, FVD2500, and FVD5000, operating at a maximum pressure of 70 bar. Maximum clamping forces are 33.72 kN, 52.16 kN, and 83.81 kN respectively. Slider stroke per side is 6 mm for the FVD1600 and 8 mm for the FVD2500 and FVD5000. Speed control valves (Model BZL) and air bleed valves (Model BZX) are available as accessories, along with G thread plugs with air bleeding function and direct-mount sequence valves. Made in Japan.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Documents

Concentric Vise

Centering Vise High Power

Technical Information

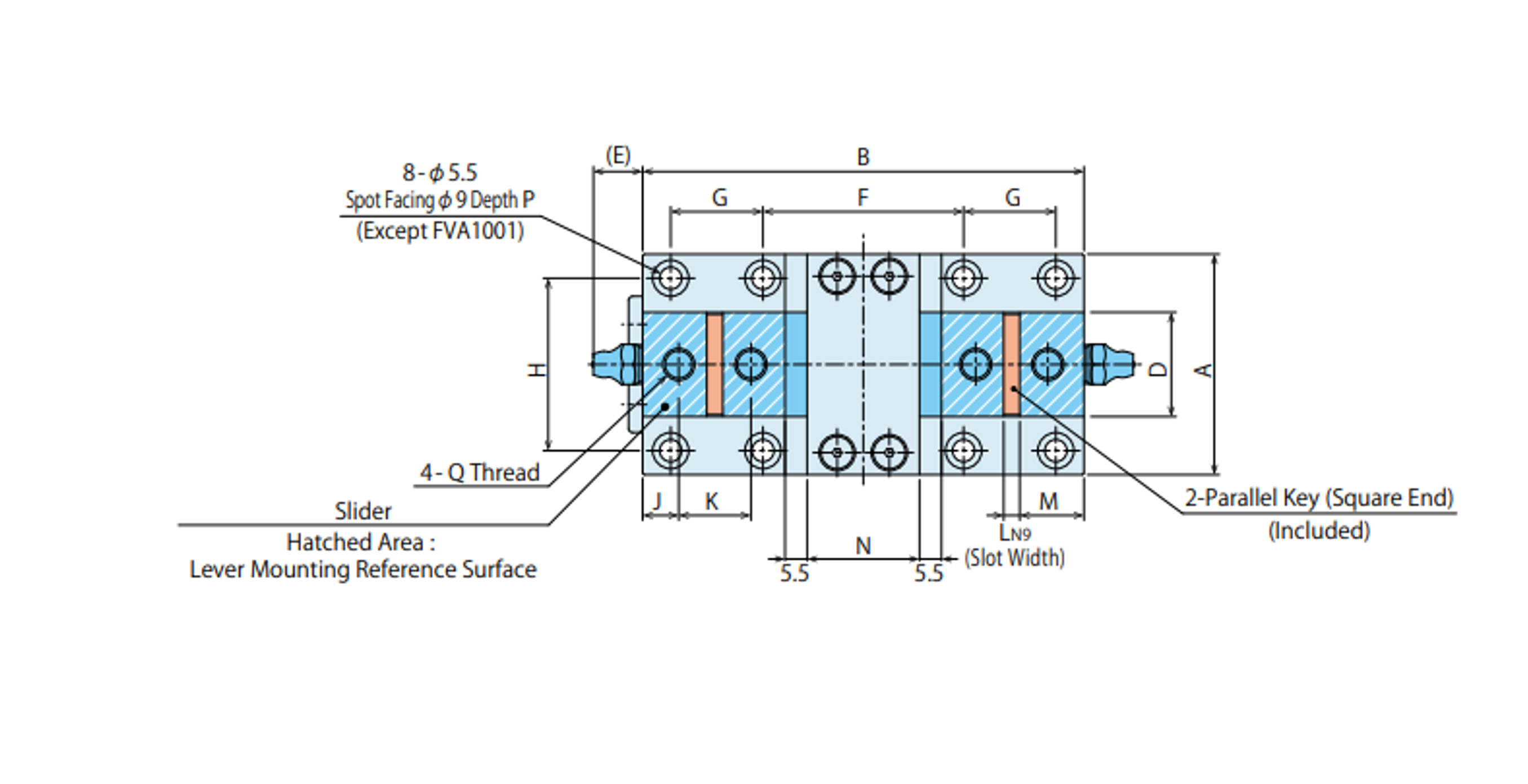

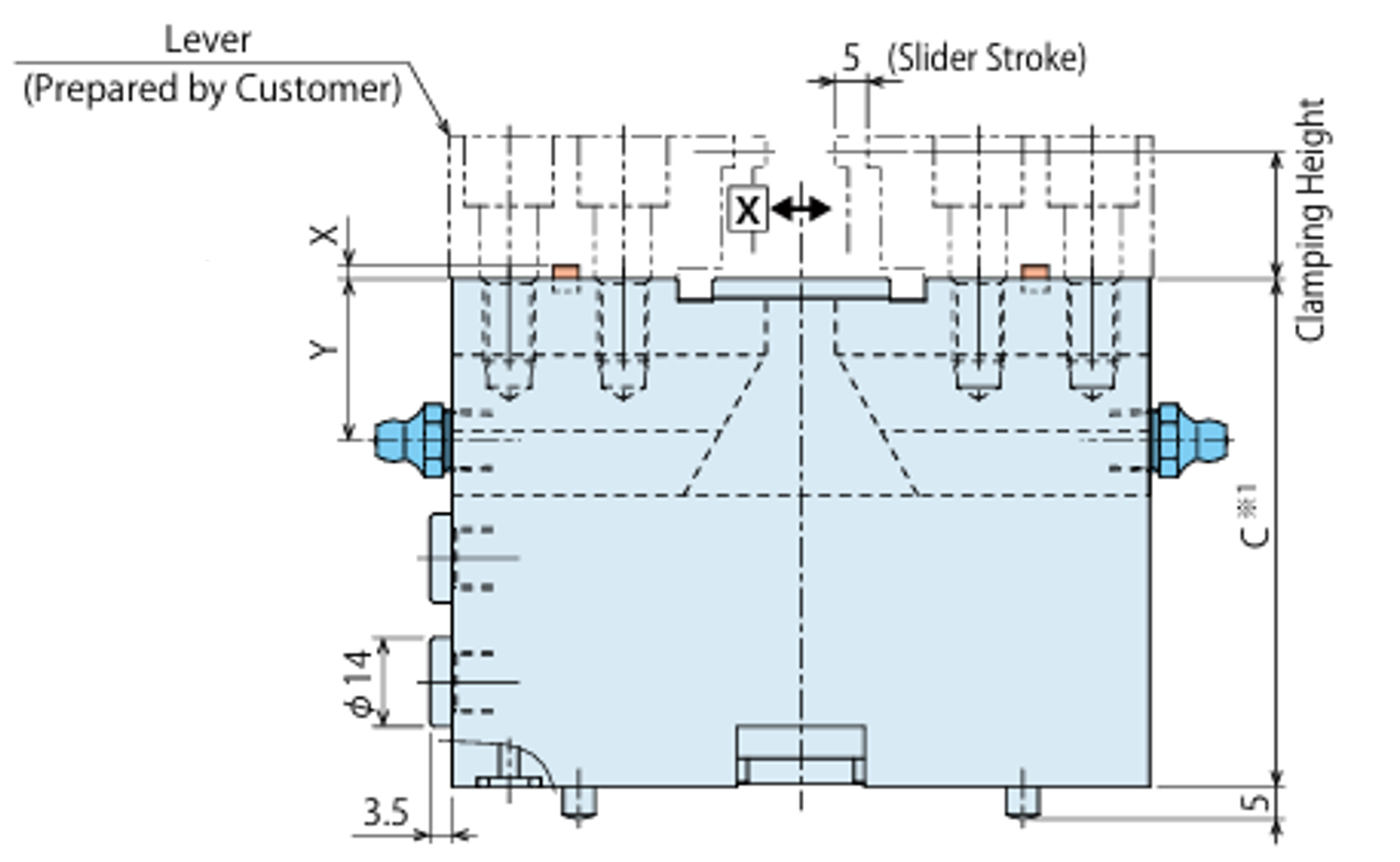

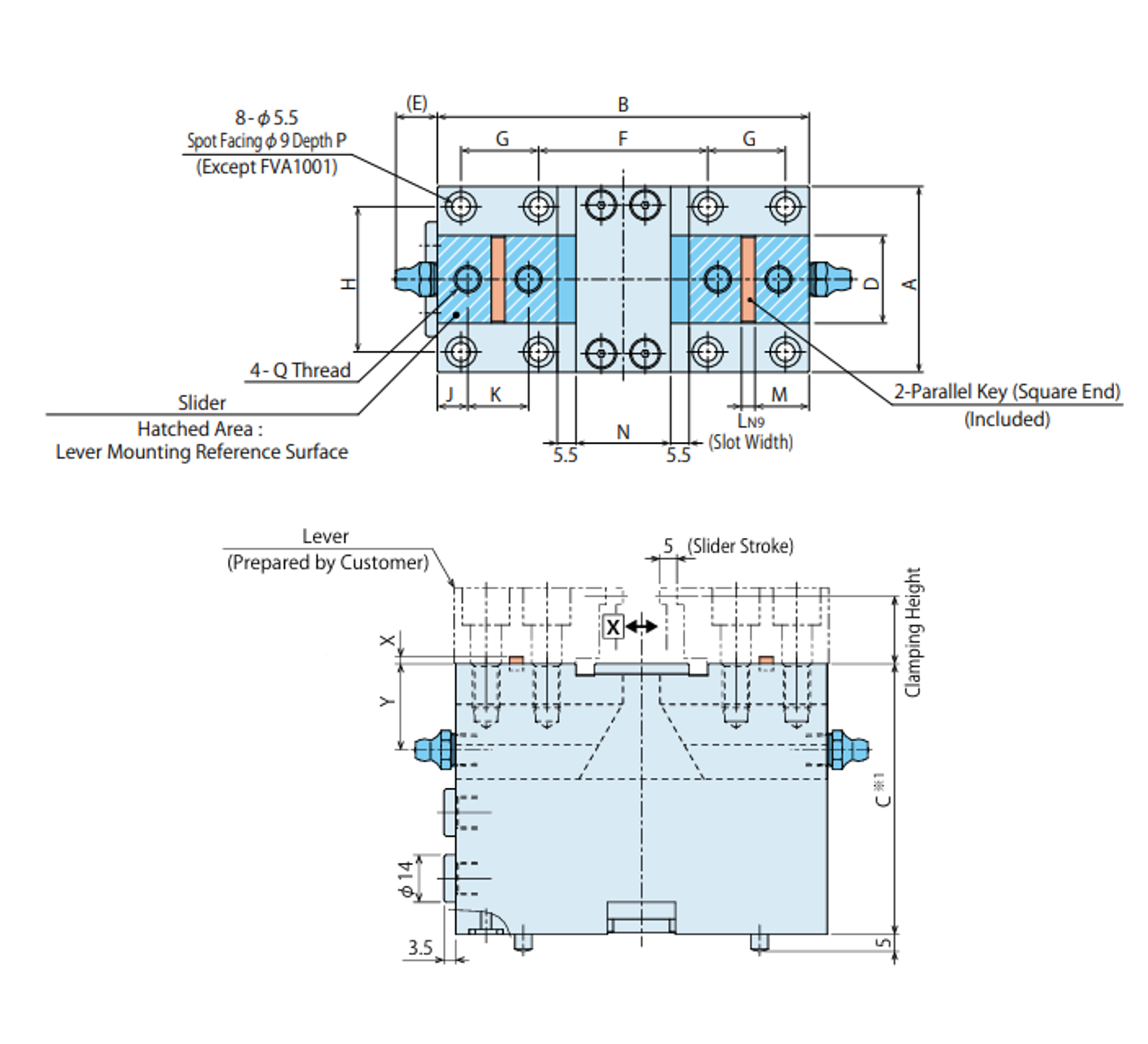

Machining Drawing

KOSMEK Concentric Vise

PART NO.	MAX PRESSURE (BAR)	MAX CLAMPING FORCE (kN)	STROKE (ONE SIDE)	A	B	C	D	L1	L2	X
FVD1600	70	33.72	6	90	170	67	70	60	47	55
FVD2500	70	52.16	8	100	206	82	85	74	57	68
FVD4000	70	83.81	8	118	240	89	110	90	64	75
