Jig Feet Leveling

Leveling Feet

Product Information

High-quality, medium-duty leveling foot with a removable pad and a handy hex socket that allows convenient adjustment from the stud end. The pad rotates and pivots freely with a 20° total swivel angle. Available with the thread sizes from 1/2-13 to 1"-8 (M12 to M24 in metric), each in a choice of two thread lengths. Made in USA.

Application Information

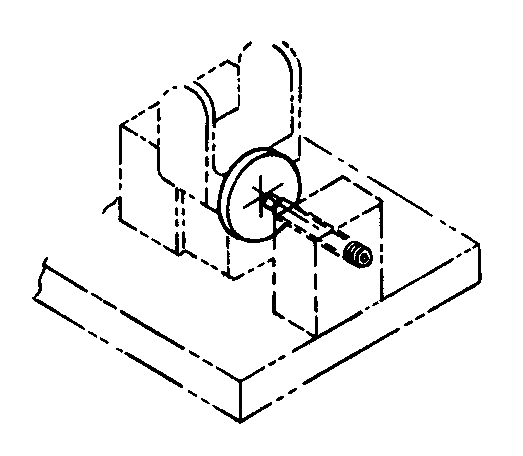

This leveling foot has a hex socket that also allows using it as a screw clamp.

Swivel Foot

These leveling feet use our patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use. For other foot types, see Feet for Swivel Screws (order separately).

Design Considerations & Safety Precautions

Rated load capacity represents safe static load with the standard stud at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Load capacity will drop significantly with longer studs.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Body	1215 Steel	Carburized-hardened	Zinc plated yellow chromate	✔	✔
Pad	1215 Steel	-	Zinc plated yellow chromate	✔	✔
