Bushings for Bullet-Nose Dowels

Locating Pins

Save to My Project

What is this?

Product Information

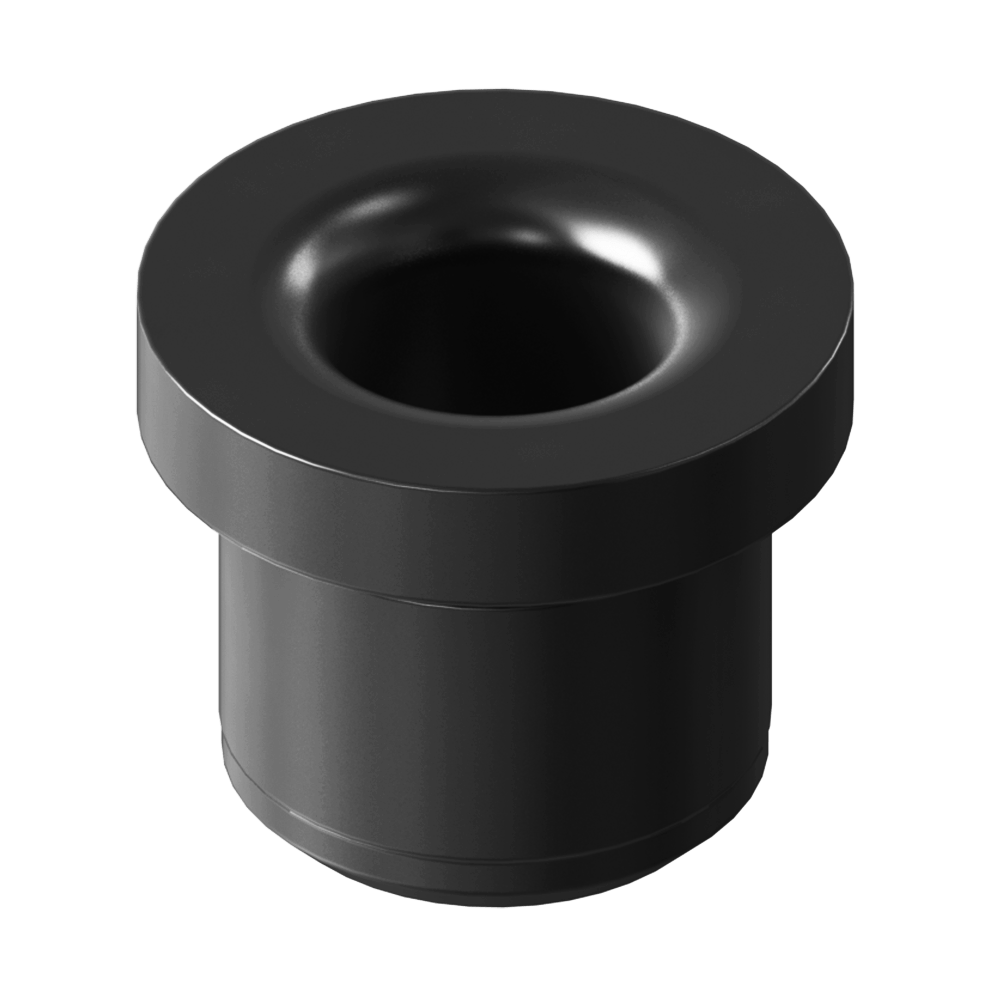

Precision bushing used with a Bullet-Nose Dowel to align two pieces of a fixture. The bushing's ID and OD are concentric to within .0003" TIR. Available for pin diameters 1/4, 5/16, 3/8, and 1/2" (6, 8, 10, and 12mm in metric). Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

1144 steel, heat treated Rc 50-55, black oxide finish. DFARS and RoHS compliant.

Click here for detailed material and finish specifications.

Bushings for Bullet-Nose Dowels

Inch

PART NO.	A DIA NOMINAL	A DIA ACTUAL	B DIA	C DIA NOMINAL	C DIA ACTUAL	D	E
CL-B-1000	1/4	.2501	.625	1/2	.5002	3/8	.100
CL-B-2000	5/16	.3126	.625	1/2	.5002	3/8	.100
CL-B-3000	3/8	.3751	.750	5/8	.6253	1/2	.100
CL-B-4000	1/2	.5001	.875	3/4	.7504	5/8	.100

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

Metric

PART NO.	A DIA NOMINAL (mm)	A DIA ACTUAL (mm)	B DIA (mm)	C DIA NOMINAL (mm)	C DIA ACTUAL (mm)	D (mm)	E (mm)
CLM-60-B	6	6.002	13	10	10.005	7	3
CLM-80-B	8	8.002	15	12	12.005	7	3
CLM-100-B	10	10.002	18	15	15.008	9	3
CLM-120-B	12	12.002	22	18	18.011	12	4
