Round Locating Pads, DIN 6321, Type A

Locating Pins

Save to My Project

What is this?

Product Information

New Item!

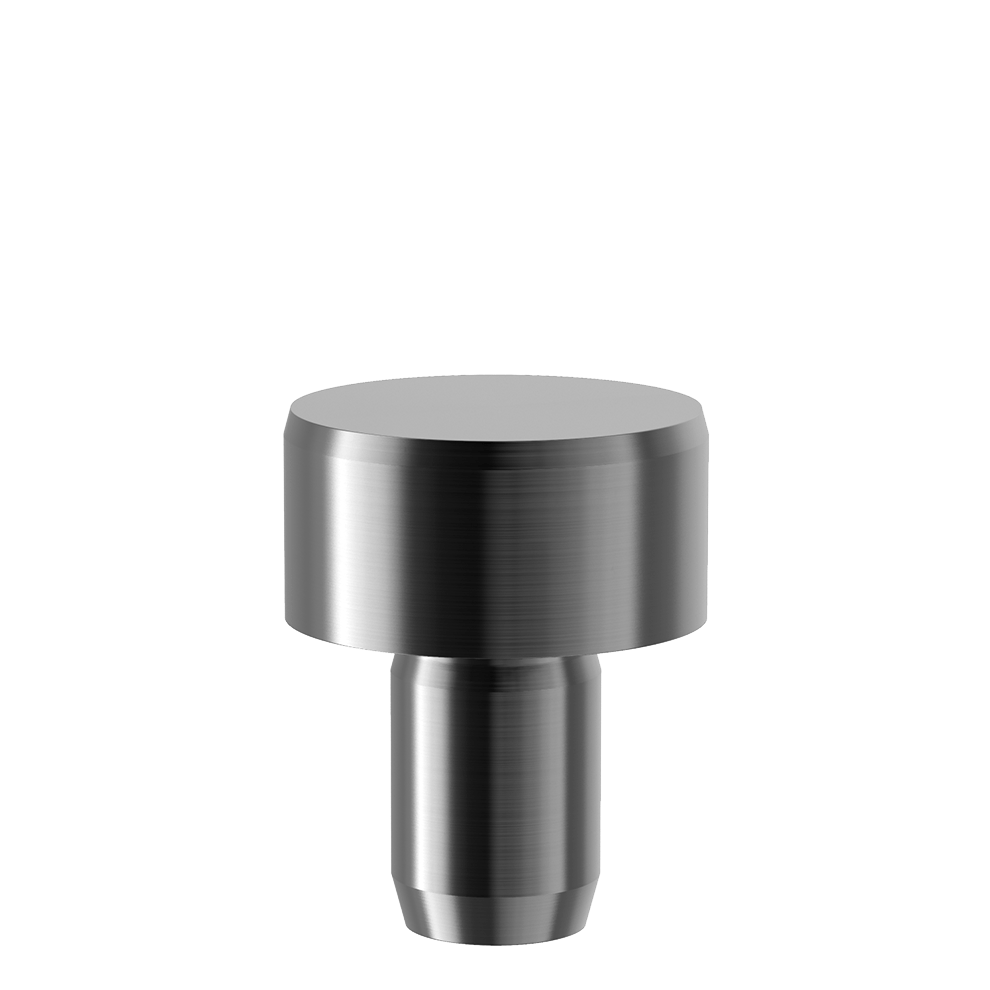

Round Locating Pads per DIN 6321 Type A are dual-purpose precision locators, with a ground top surface for use as a rest pad, and a ground head diameter for use as a locating pin. These pads are especially useful as locating pins for side location of thin workpieces. Available with head diameters from 6 to 25mm. Made in USA.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

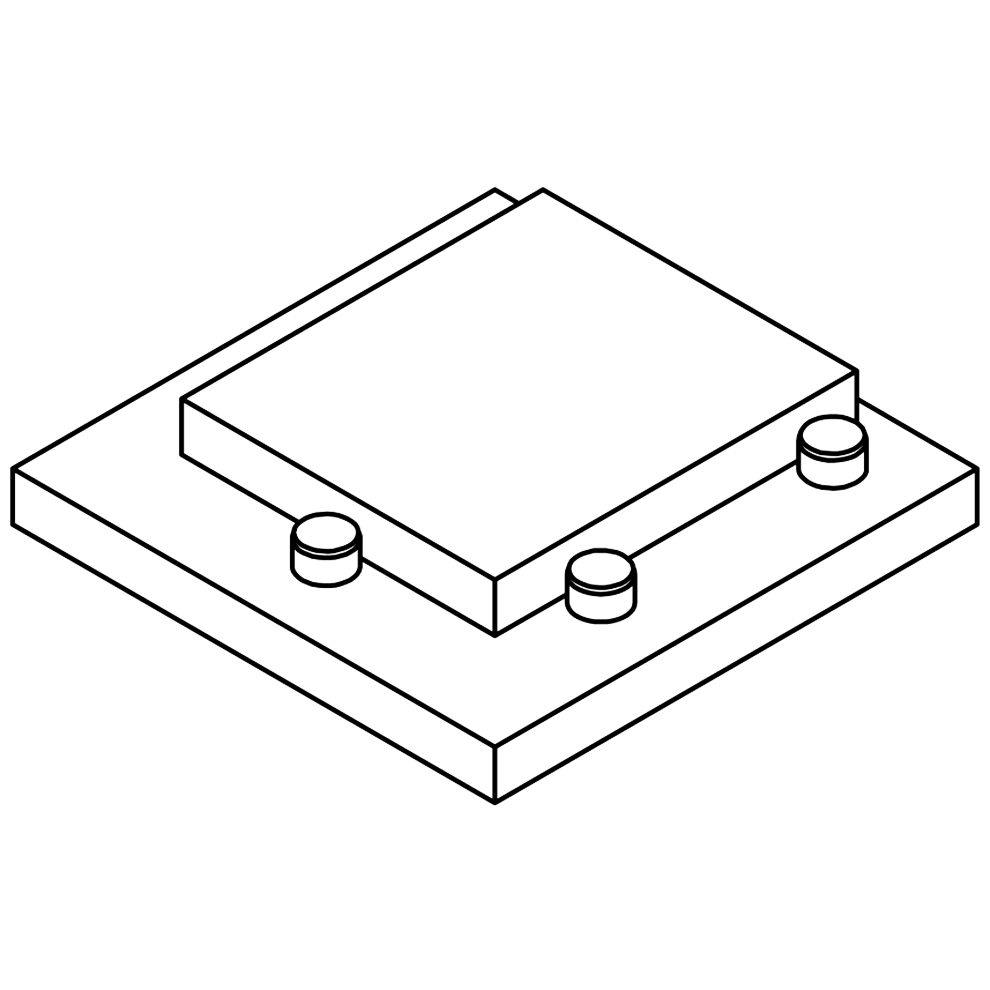

In this application, three Round Locating Pads (Type A) are used as side locators for a thin workpiece.

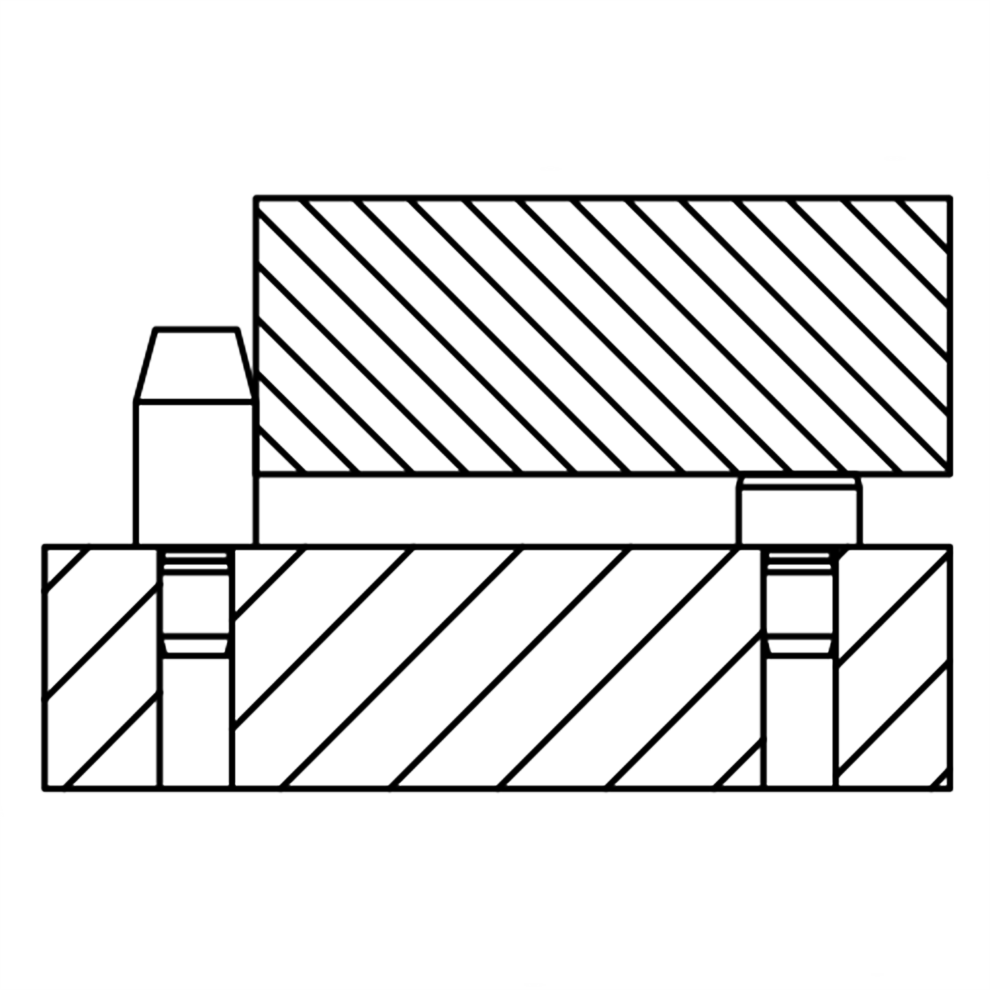

In this application, a Round Locating Pin (Type B) is used as a side locator, together with a Round Locating Pad (Type A) used as a rest pad.

Material

MATERIAL	HEAT TREAT	FINISH
A2 Tool Steel	Heat Treated	Black Oxide

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Round Locating Pads, DIN 6321, Type A

Metric

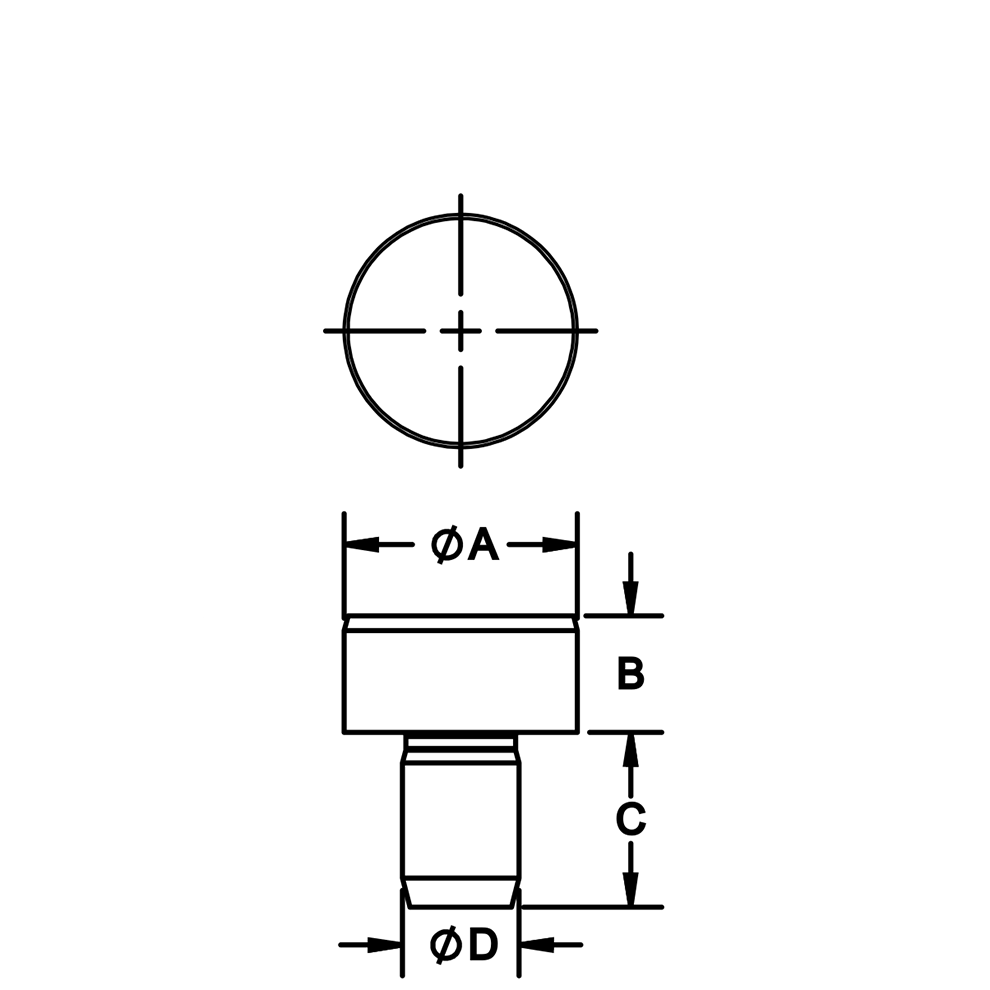

PART NO.	A DIA (mm) g6	B (mm) h9	C (mm)	D (mm) n6
CL-6321-6-5-A	6	5	6	4
CL-6321-10-6-A	10	6	9	6
CL-6321-16-8-A	16	8	12	8
CL-6321-25-10-A	25	10	18	12
