Rectangular Pallet Tooling Plates – Blank (400 x 500mm) Model
CL-BF00-0871 Part

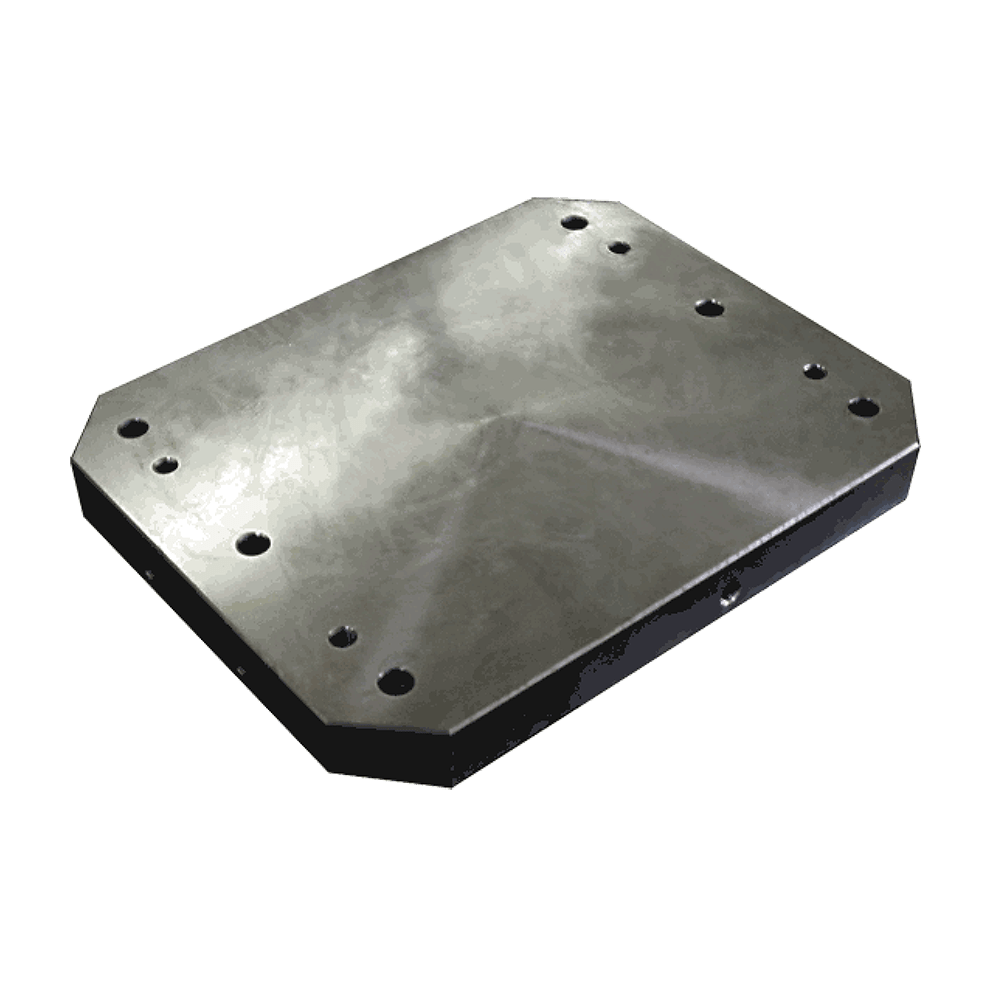

Rectangular Pallet Tooling Plates – Blank (400 x 500mm)

Three Dimensional (3D) View
View Large Image

Carr Lane

https://www.carrlane.com/Default.aspx?TabId=50440&partid=56771&language=en-US

CL-BF00-0871 CL-BF00-0871 • Rectangular Pallet Tooling Plates – Blank (400 x 500mm)

Product Information

Mounting

Material

Place Order

Save to My Project

What is this?

Pricing & Availability

This part number seems to be incorrect. Please double-check the part number you entered, update accordingly and then click “Add to Pricing & Availability” to continue. If the part number you entered appears to be correct, yet you are still seeing an "Invalid status", please call Carr Lane Manufacturing Customer Service at 314-647-6200 for further assistance.

Status	Part Number	Quantity	Description	Unit Price	Line Item Total
			RECTANGULAR PALLET TOOLING PLATE DUAL MOUNTING (JIS/DIN)	$3647.47	$3647.47

*All prices are in US dollars. Inventory levels are subject to change.

Add to Pricing & Availability

Status Legend

Available This part is currently available for order.
Available Assembly This part is available, but some assembly is required.
Made to Order This part is available only as requested and will be made to order.
Partially Available This part is available, however, not in the full quantity that you requested.
Back Ordered This part is not available and is currently on back order.
!

Invalid The part number entered is invalid.

Part Specifications

Part Number	A NOMINAL	A ACTUAL	B NOMINAL	B ACTUAL	C NOMINAL	C ACTUAL	E (JIS)	F (DIN)	H (JIS)	J (DIN)	L	M	N DIA	P DIA	Q	R	S	Z	WEIGHT (lbs)
CL-BF00-0871	400mm	15.20	500mm	19.13	50mm	1.9685	80mm	50mm	M16	M12	2.165	10.827	30mm	20mm	5.9055	1.42	7.8740	9.8425	160

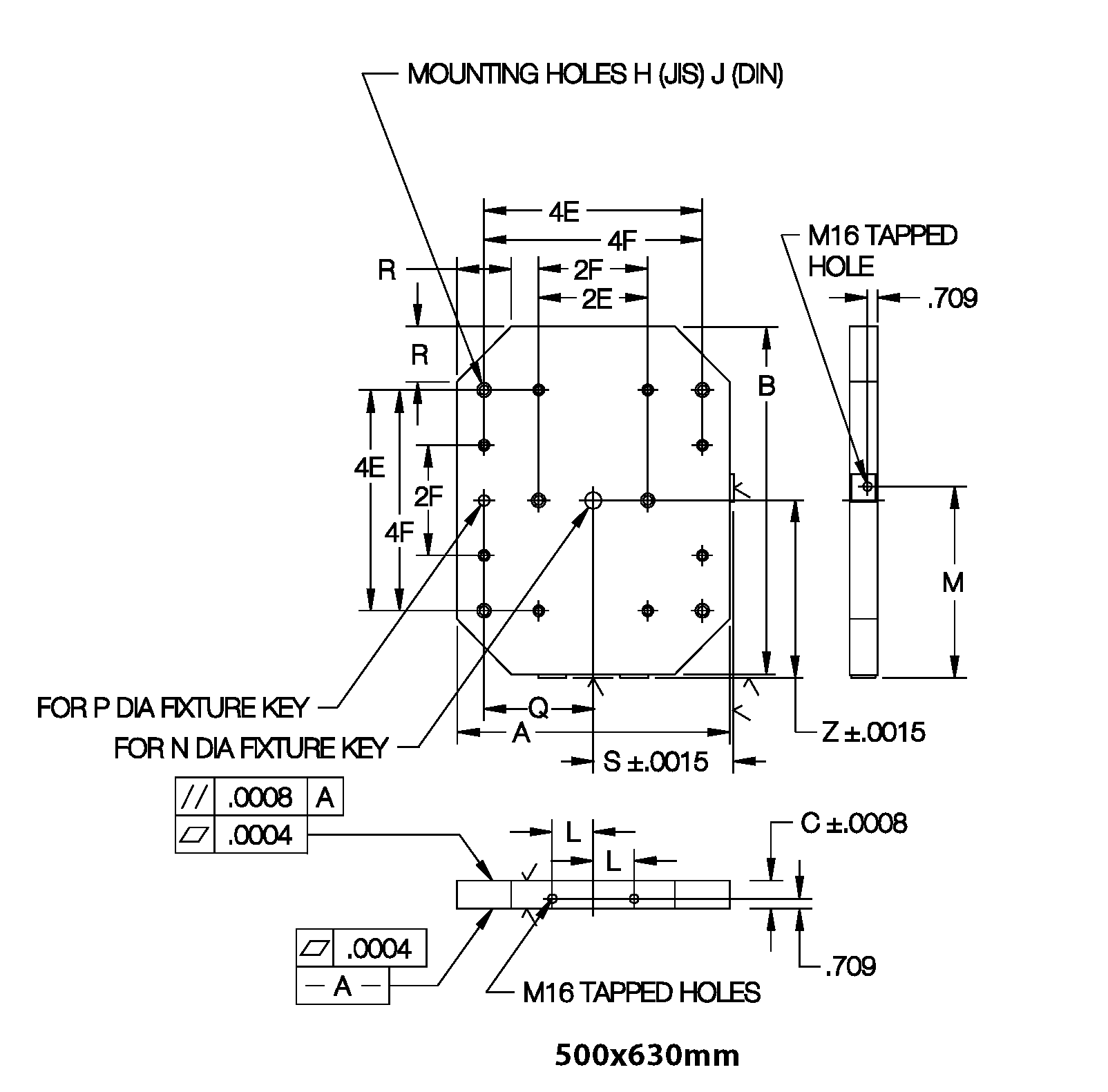

Interactive CAD Viewer & CAD File Downloads
