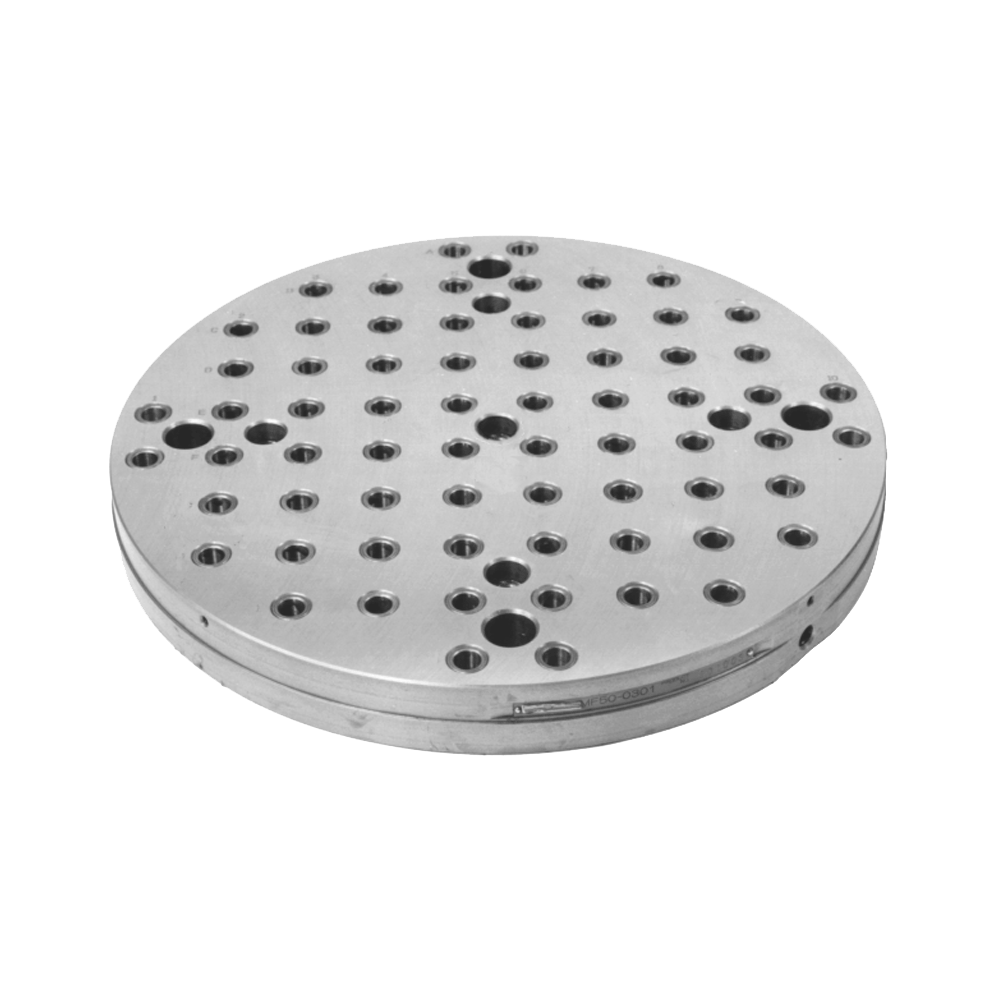

Round Tooling Plates – Standard (500mm) Model
CL-MF40-0312 Part

Three Dimensional (3D) View
View Large Image

Carr Lane

https://www.carrlane.com/Default.aspx?TabId=50440&partid=56858&language=en-US

CL-MF40-0312 CL-MF40-0312 • Round Tooling Plates – Standard (500mm)

Product Information

Multipurpose Holes (Standard)

Mounting

Material

Place Order

Save to My Project

What is this?

Pricing & Availability

This part number seems to be incorrect. Please double-check the part number you entered, update accordingly and then click “Add to Pricing & Availability” to continue. If the part number you entered appears to be correct, yet you are still seeing an "Invalid status", please call Carr Lane Manufacturing Customer Service at 314-647-6200 for further assistance.

Status	Part Number	Quantity	Description	Unit Price	Line Item Total
			ROUND TOOLING PLATE	$0.00	$0.00

*All prices are in US dollars. Inventory levels are subject to change.

Add to Pricing & Availability

Status Legend

Available This part is currently available for order.
Available Assembly This part is available, but some assembly is required.
Made to Order This part is available only as requested and will be made to order.
Partially Available This part is available, however, not in the full quantity that you requested.
Back Ordered This part is not available and is currently on back order.
!

Invalid The part number entered is invalid.

Part Specifications

Part Number	HOLE THREAD	HOLE ID	HOLE SPACING	HOLE PATTERN	A NOMINAL PLATE DIA	A ACTUAL PLATE DIA	C THICKNESS	K REQUIRED MOUNTING SCREWS	WEIGHT (lbs)
CL-MF40-0312	1/2-13	.5000	2.0000	10 x 10	500mm	19.69	2.0000	(4) 5/8-11 or M16	145
