Carr Lane

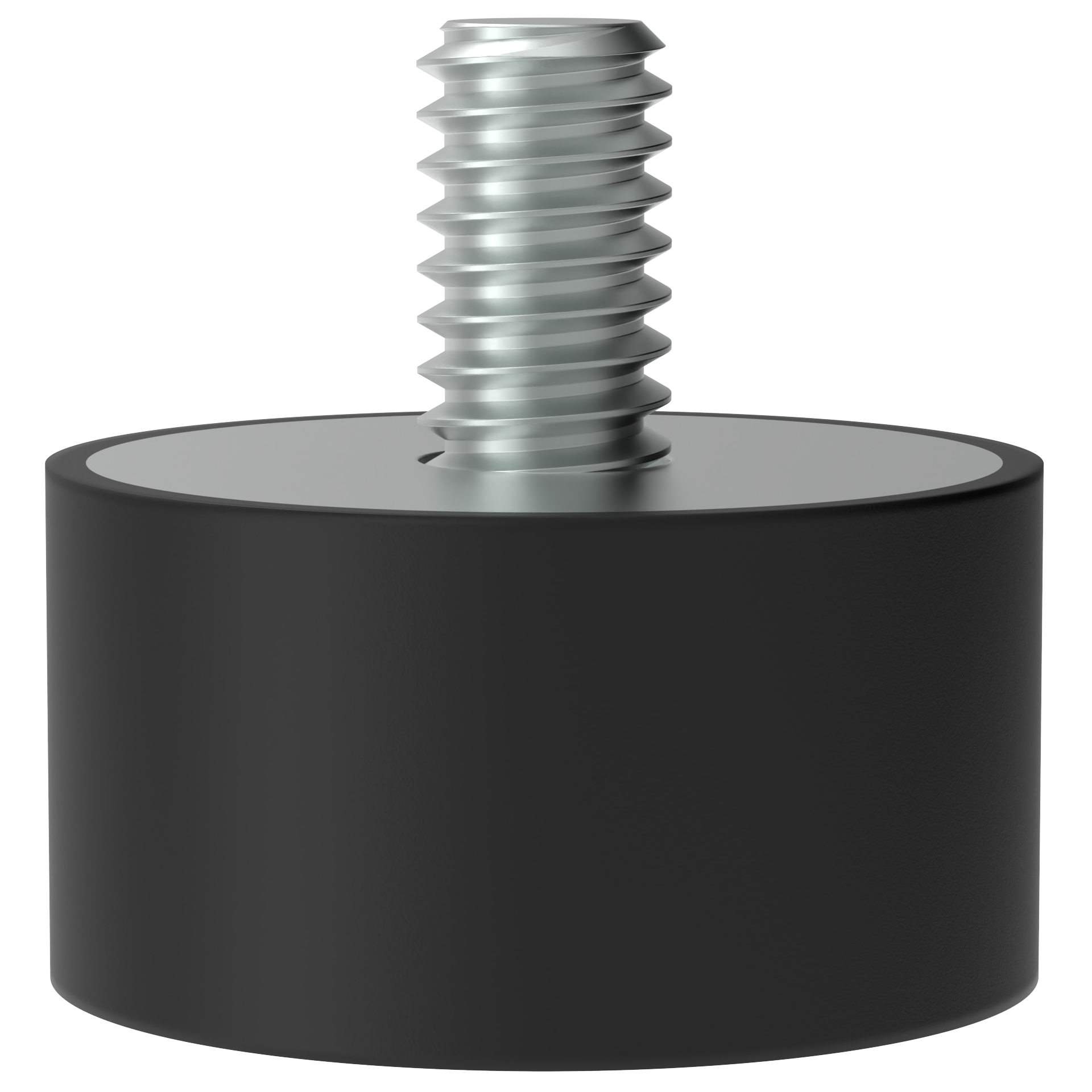

CLM-30-25-M8-VIM  •

Pricing & Availability

Vibration Isolation Mounts

To Order Use CLM-30-25-M8-VIM-PACKOF2

Part Specifications

Part NumberA
DIA
(mm)
B
(mm)
C
(mm)
D
THREAD
(mm)
THREAD
PITCH
SPRING
RATE
(Lbf/in)
MAX
LOAD
(Lbf/in)
MAX
DEFLECTION
(mm)
CLM-30-25-M8-VIM302520M81.259422326.4

Oops! We can’t seem to find this drawing in our database. Please email [email protected] with the item number and file type you require.
