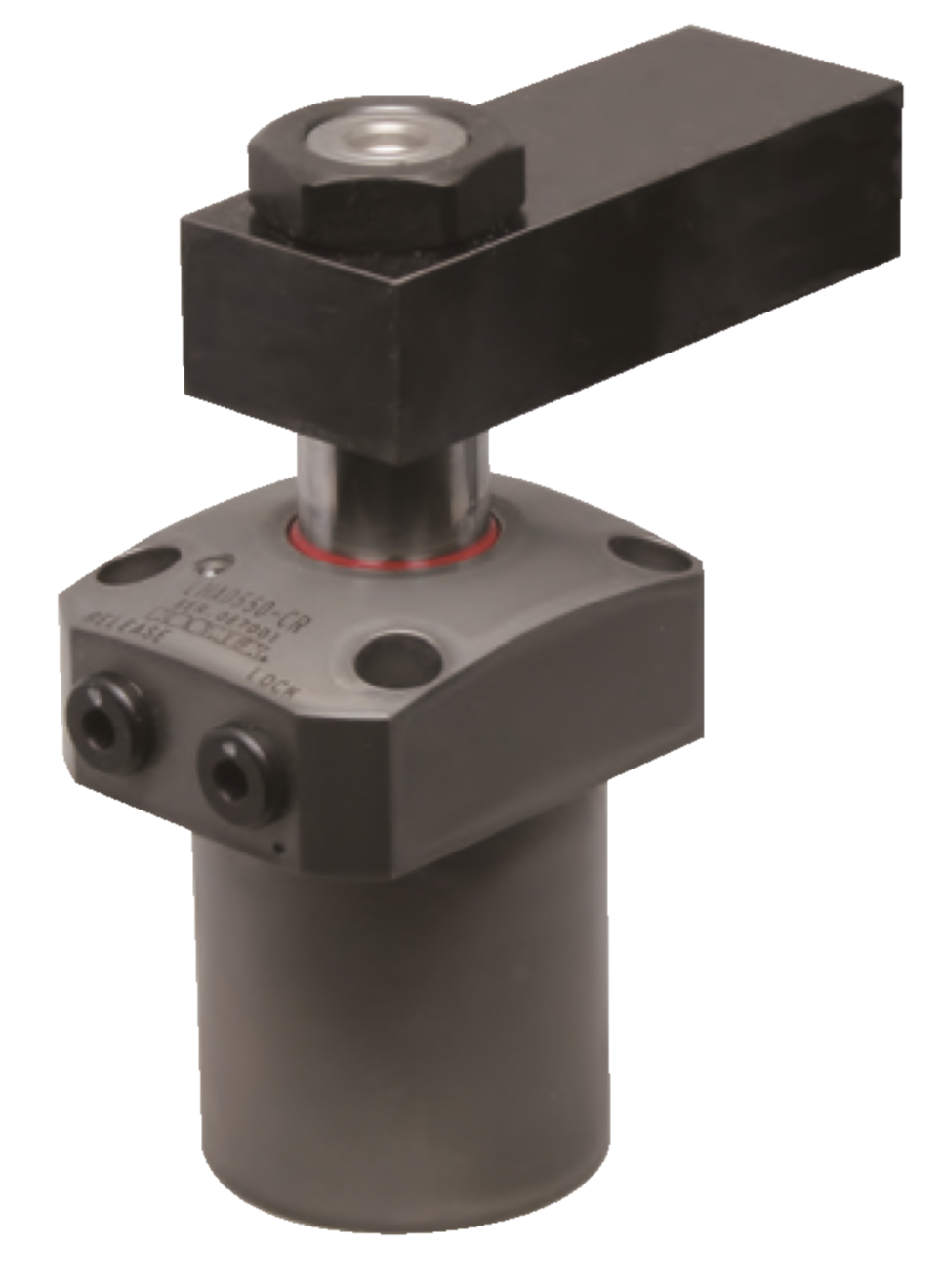

Product Description: KOSMEK Hydraulic Swing Clamps are single-acting hydraulic clamps with a high-speed rotation mechanism, designed for fixture applications requiring swing-in clamping with repeatable positioning. The outer race rotates in accordance with the steel ball movement, minimizing resistance during the swing action for faster cycle times and longer service life. An enlarged rod diameter with larger steel balls and a lead groove further reduces torque and increases endurance.

KOSMEK Hydraulic Swing Clamps are single-acting hydraulic clamps with a high-speed rotation mechanism, designed for fixture applications requiring swing-in clamping with repeatable positioning. The outer race rotates in accordance with the steel ball movement, minimizing resistance during the swing action for faster cycle times and longer service life. An enlarged rod diameter with larger steel balls and a lead groove further reduces torque and increases endurance.

KOSMEK Hydraulic Swing Clamps are single-acting hydraulic clamps with a high-speed rotation mechanism, designed for fixture applications requiring swing-in clamping with repeatable positioning. The outer race rotates in accordance with the steel ball movement, minimizing resistance during the swing action for faster cycle times and longer service life. An enlarged rod diameter with larger steel balls and a lead groove further reduces torque and increases endurance.

Technical Information

Documents

Single Acting Hydraulic Swing Clamps

Hydraulic Swing Clamp

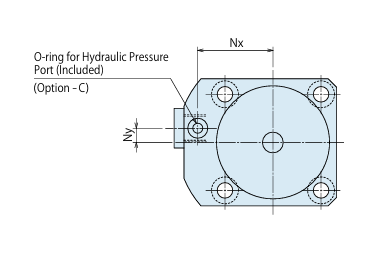

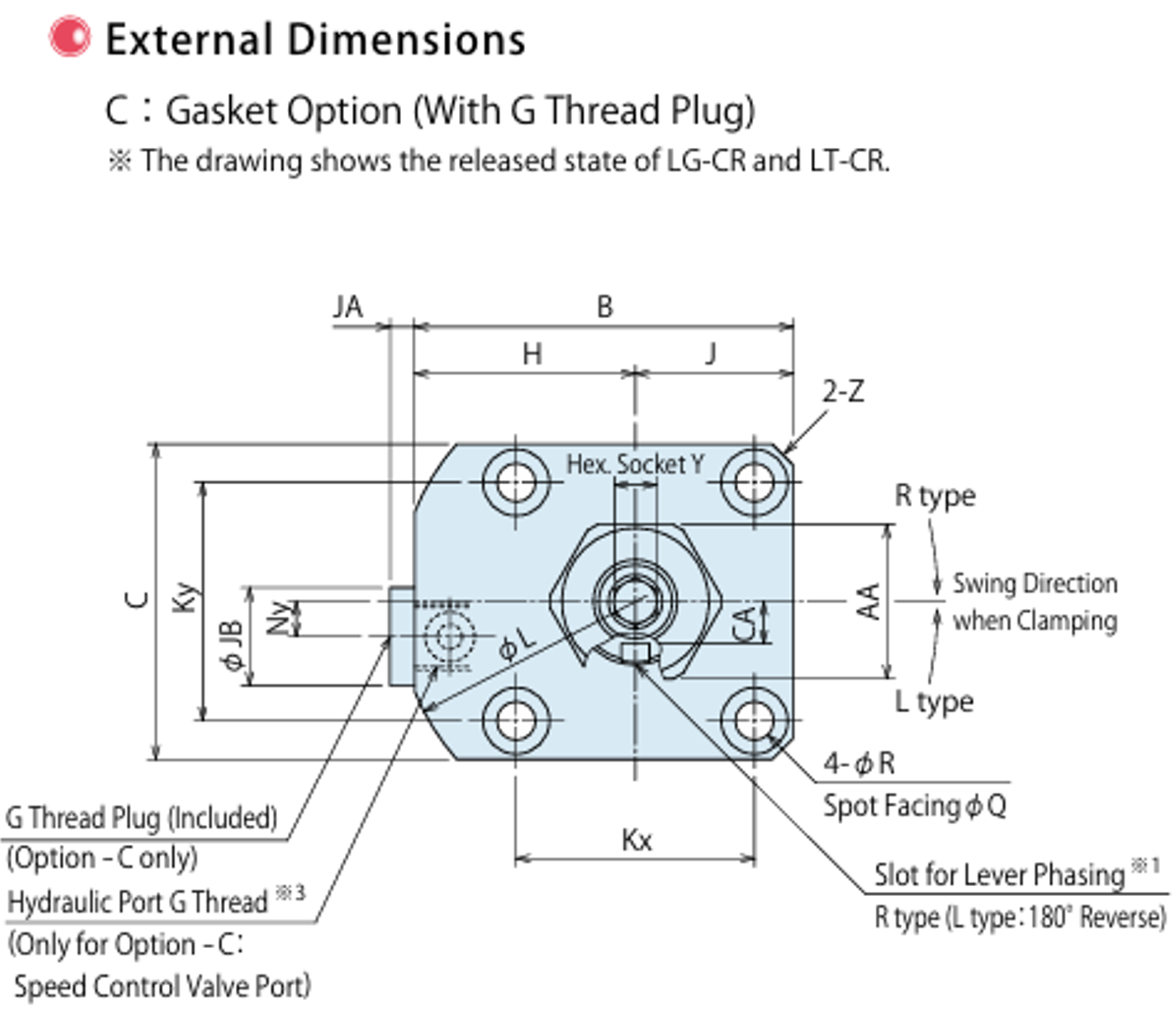

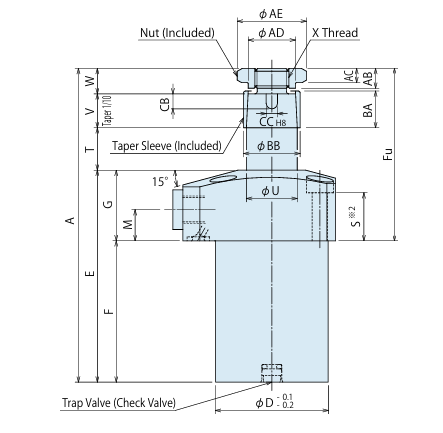

Single Acting Hydraulic Swing Clamps

QUANTITY	PART NO.	Max Clamping Force (kN)	Max Pressure (Bar)	Swing Direction	A	B	C	D	T	V
	LG0361-CR	2.3	70	Right	103.5	49	40	36	14.5	9
	LG0361-CL	2.3	70	Left	103.5	49	40	36	14.5	9
	LG0401-CR	3.2	70	Right	111	54	45	40	15	12
	LG0401-CL	3.2	70	Left	111	54	45	40	15	12
	LG0481-CR	4.4	70	Right	121	61	51	48	16	14
	LG0481-CL	4.4	70	Left	121	61	51	48	16	14
	LG0551-CR	5.9	70	Right	137.5	69	60	55	18.5	20
	LG0551-CL	5.9	70	Left	137.5	69	60	55	18.5	20
	LG0651-CR	8.3	70	Right	145	81	70	65	20	20
	LG0651-CL	8.3	70	Left	145	81	70	65	20	20
	LG0751-CR	12.8	70	Right	171.5	92	80	75	23.5	26
	LG0751-CL	12.8	70	Left	171.5	92	80	75	23.5	26

Check Price & Availability
