KOSMEK Single Acting Threaded Body Push Cylinder

KOSMEK Power Workholding,KOSMEK Hydraulic Clamps & Cylinders

Save to My Project

What is this?

Product Information

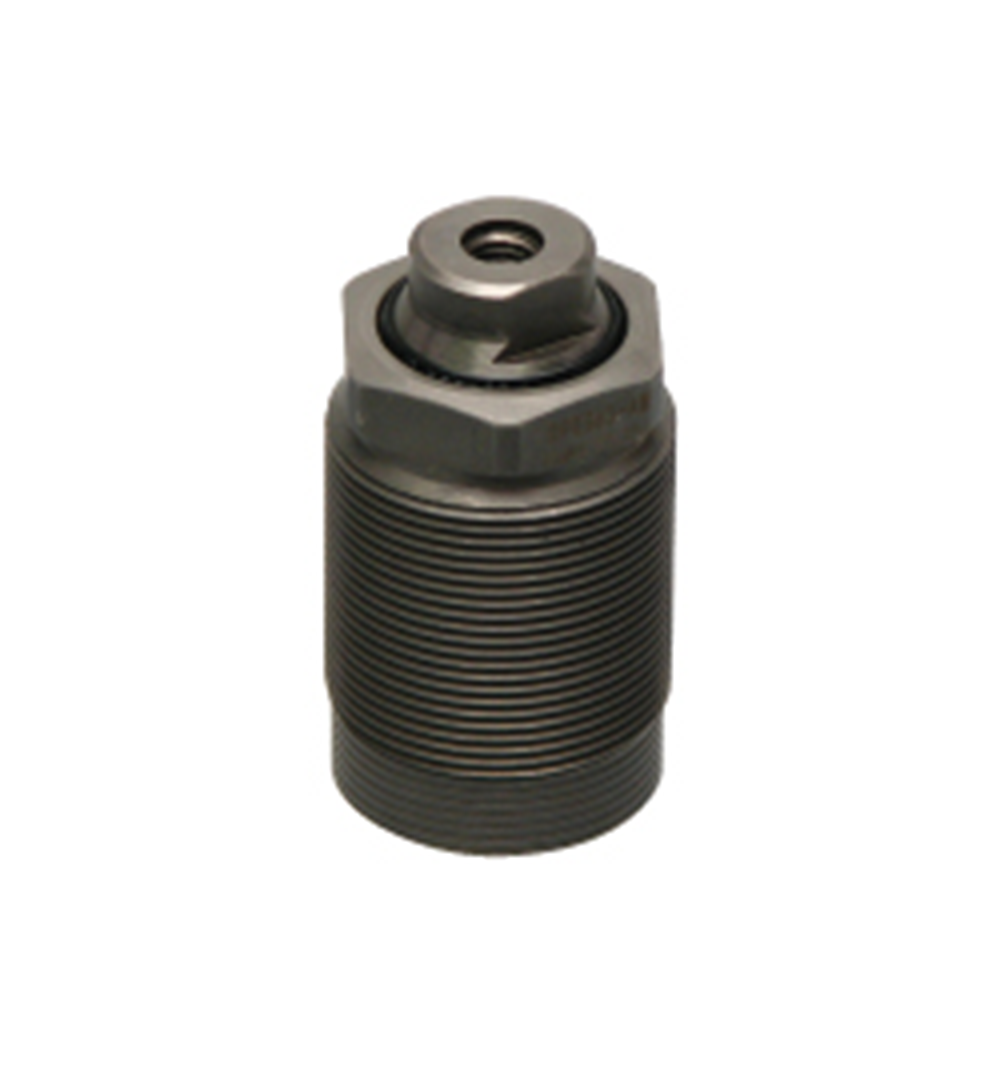

KOSMEK Push Cylinders are single-acting hydraulic cylinders in a compact threaded-body design, used to push, position, or activate fixture components. The single-acting configuration provides powered advance with spring return. A threaded external body allows direct installation into fixture plates and subplates without additional mounting hardware. See "Manifold Blocks" for manifold or direct piping configurations.

Two piston end configurations are stocked: female threaded end (A type) for attachment of contact bolts, gripper bolts, swivel ends, and other accessories, and rounded ball end (R type) for direct workpiece or mechanism contact. See "Contact Bolts" for a full listing of available end fittings.

DP Push Cylinders are stocked in body sizes from M16x1.5 to M36x1.5, with push forces from 1.23 to 9.70 kN at 250 Bar maximum hydraulic pressure. Strokes range from 6 to 25 mm depending on body size and stroke code. Additional body sizes up to M80x2, piston end styles (including swivel pad types P and Q), and stroke options are available. Made in Japan.

Documents

Hydraulic Work Supports

Hydraulic Linear Cylinder / Compact Cylinder

Technical Information

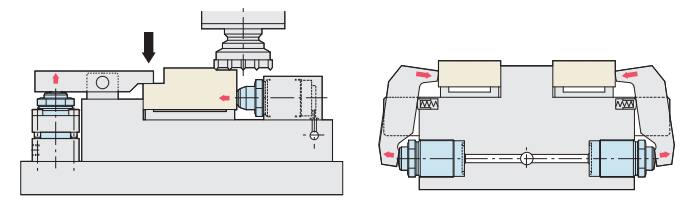

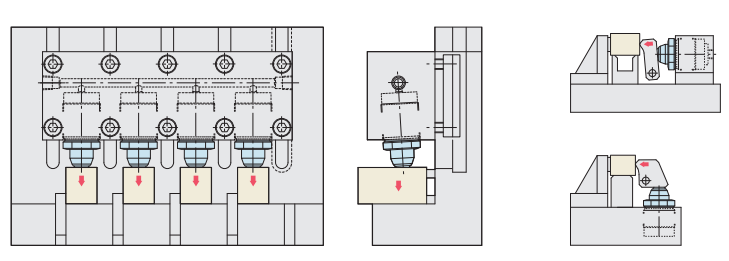

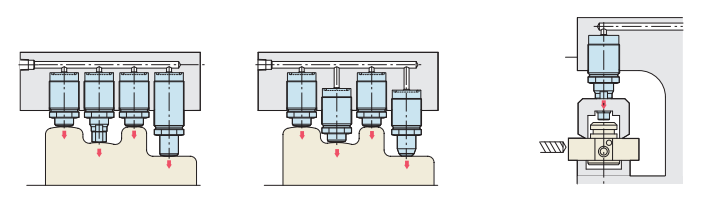

Application Examples

Female Threaded End

Rounded End

KOSMEK Single Acting Threaded Body Push Cylinder

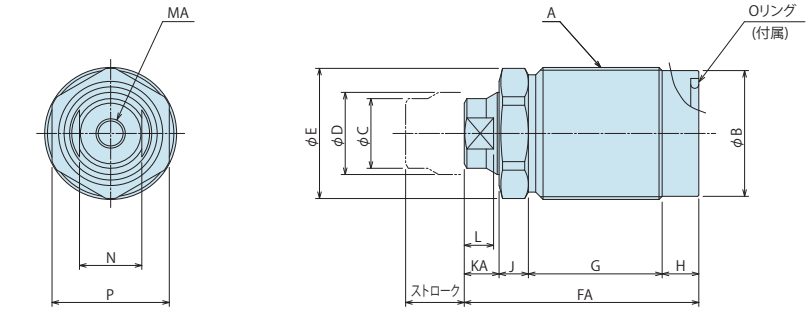

Female Threaded End

QUANTITY	PART NO.	MAX HYDRAULIC PRESSURE (BAR)	MAX PUSH FORCE (kN)	STROKE	A	B	D	G	FA	MA
	DP0160-AS	250	1.23	6	M16x1.5	14.3	8	18.5	35	M5x0.8x8
	DP0160-AM	250	1.23	10	M16x1.5	14.3	8	24.5	41	M5x0.8x8
	DP0221-AS	250	2.78	6	M22x1.5	20.3	12	13	35	M6x7
	DP0221-AM	250	2.78	10	M22x1.5	20.3	12	21	43	M6x7
	DP0241-AM	250	3.79	12	M24x1.5	22.3	14	25	47	M6x7
	DP0241-AL	250	3.79	20	M24x1.5	22.3	14	41.5	63.5	M6x7
	DP0301-AM	250	6.25	12	M30x1.5	28.3	18	27	43.5	M8x10
	DP0301-AL	250	6.25	20	M30x1.5	28.3	18	46.5	52.5	M8x10
	DP0361-AL	250	9.7	25	M36x1.5	34.3	22.4	57.5	85	M8x10

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

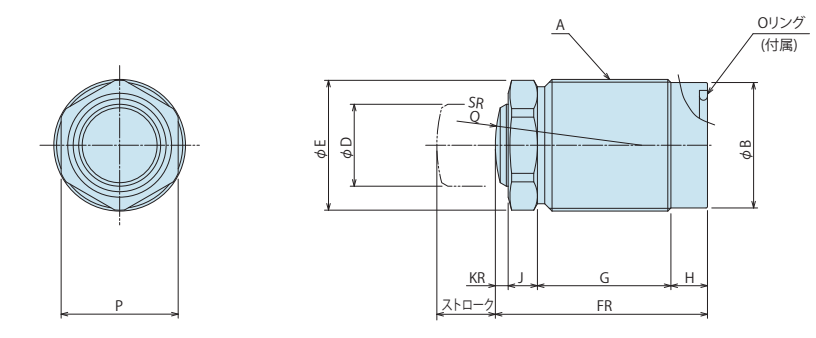

Rounded End
