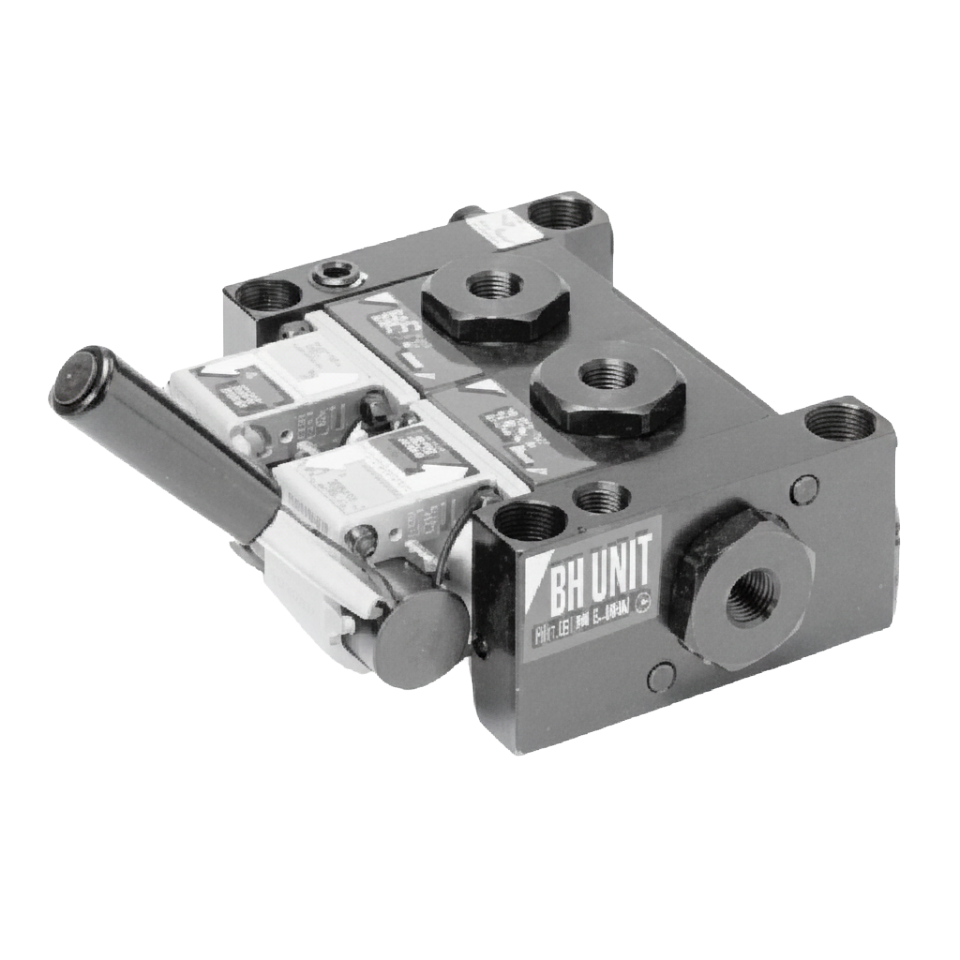

KOSMEK Manual Direction Control Valve

KOSMEK Power Workholding

Save to My Project

What is this?

Product Information

Manual hydraulic directional control valves are lever-operated valves designed to control fluid flow direction in hydraulic circuits. A pull-and-pivot lever mechanism provides misoperation protection: the lever must be pulled outward before being moved up or down through a 45° arc to shift the valve, preventing accidental actuation. Available in three circuit configurations Normal Close (B), and Double Action (NN).

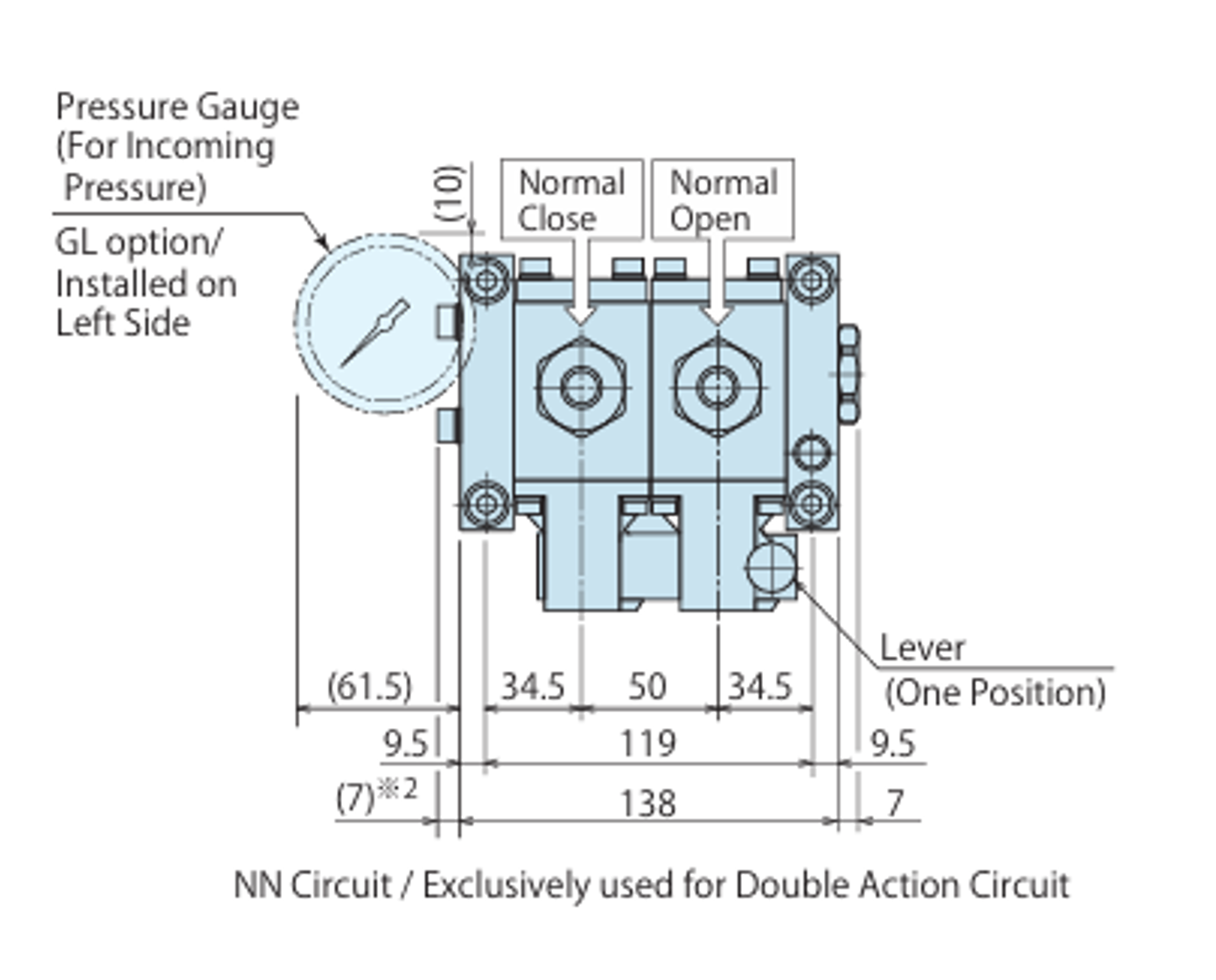

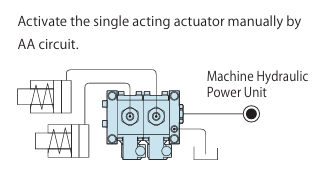

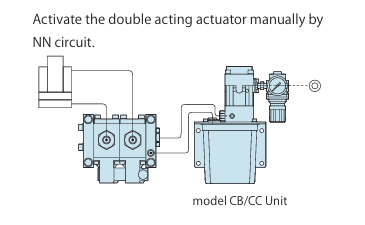

The valve accommodates both single-action and double-action actuator applications. The NN configuration is particularly well suited for operating double-acting cylinders from a single-acting hydraulic pump, paired with a model CB/CC unit. Normally open and higher operating pressure versions are also available.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Technical Information

Documents

Manual Direction Control Valve

Hydraulic Valve Index

KOSMEK Manual Direction Control Valve

QUANTITY	PART NO.	PRESSURE RANGE (BAR)	NORMAL OPERTING PRESSURE (BAR)
	BH0041-B-0-P7.0MPa	25 - 70	70
	BH0041-NN-0-P7.0MPa	25 - 70	70

Check Price & Availability
