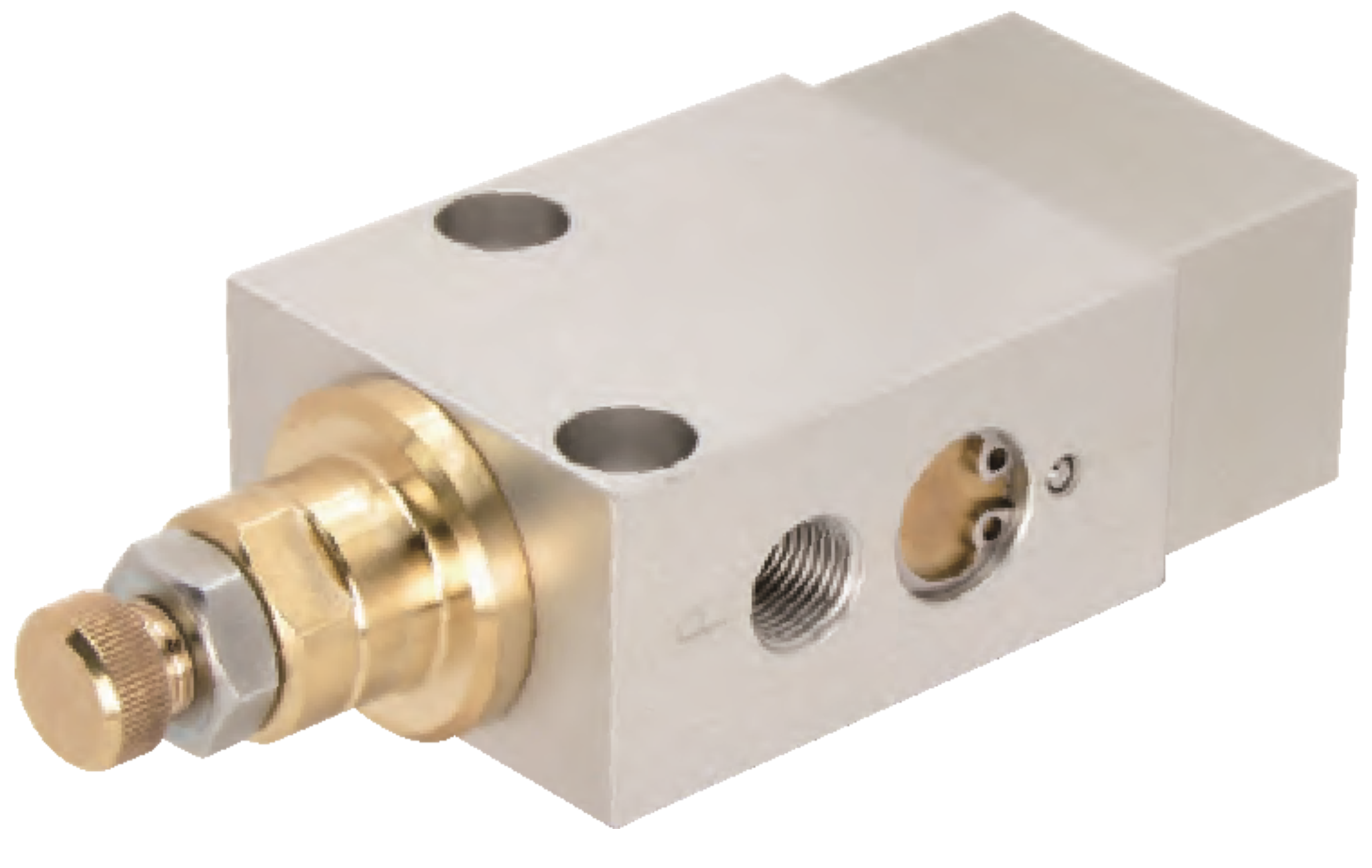

KOSMEK Pneumatic Sequence Valve

Toggle Clamps,KOSMEK Power Workholding

Save to My Project

What is this?

Product Information

Air Sequence Valves activate multiple pneumatic actuators in sequence without electrical control, using an internal check valve, flow control valve, air tank, and switching valve to introduce a programmable delay between actuator operations. When air pressure is applied, the primary actuator operates immediately while the internal tank fills; once the tank reaches operating pressure, the switching valve activates the secondary actuator. Delay time is adjustable from 1 to 10 seconds via an external adjustment screw secured by a lock nut, with no tools required for setting changes.

The all-pneumatic design makes this valve well suited for machining center fixtures, explosion-proof environments, and any application where electrical control is restricted or where minimizing the number of pilot ports is required. The compact, high-performance sealing structure allows direct integration into fixture bodies. Filtered, dry air supply is required.

Available in one configuration, part number BWD0100, with an operating pressure range of 2 to 6 Bar. Patented design.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Technical Information

Documents

Pneumatic Sequence Valve

Air Sequence Valve

KOSMEK Pneumatic Sequence Valve

QUANTITY	PART NO.	PRESSURE RANGE (BAR)
	BWD0100	2 - 6 Bar
