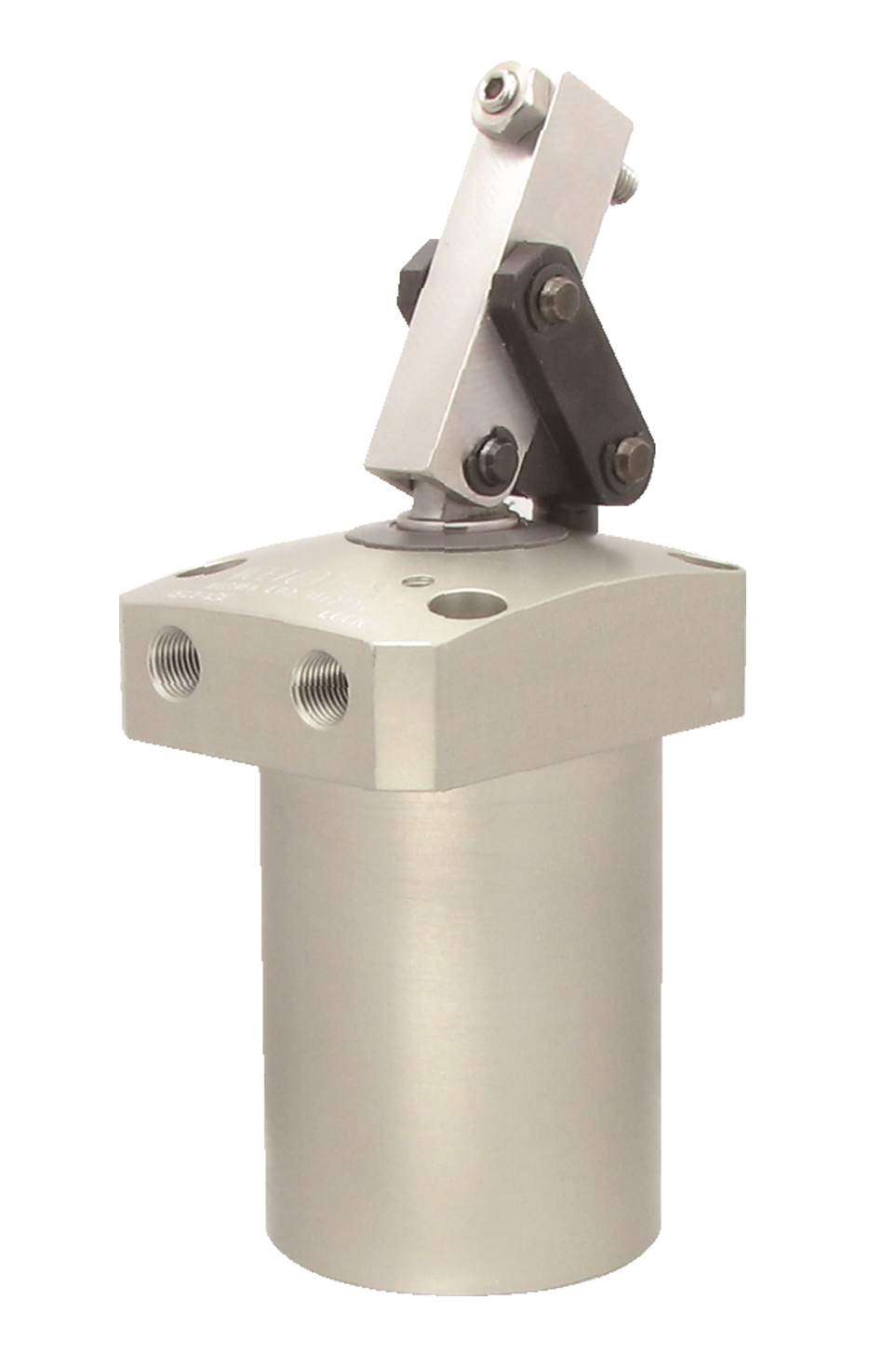

Pneumatic Locking Link Clamps

Power Workholding

Save to My Project

What is this?

Product Information

KOSMKEK's Pneumatic Locking Link Clamps are high-power pneumatic work clamps with a built-in mechanical lock, designed to replace hydraulic clamping in fixture applications. The mechanical locking system multiplies holding force to approximately three times clamping force, enabling heavy-load and high-precision machining while minimizing work distortion. Eliminating the need for a hydraulic power pack and associated piping simplifies installation and reduces system complexity.The WCE delivers approximately 2.5 times the clamping force of the same-size WCA model, allowing equivalent clamping force two sizes smaller. Compact dimensions are maintained even with the integrated mechanical lock. A purpose-built dust seal with chemically resistant sealing material protects against high-pressure coolant, including chlorine-based formulations.

WCE Pneumatic Link Clamps are available in four standard sizes at 0.5 MPa operating pressure: Size 100 (0.9 kN), Size 160 (1.6 kN), Size 250 (2.5 kN), and Size 400 (3.9 kN). Additional sizes are available. Made in Japan.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Technical Information

Documents

Pneumatic Link Clamps

Clamping force which replaces hydraulic clamp Development of high-power pneumatic link clamp

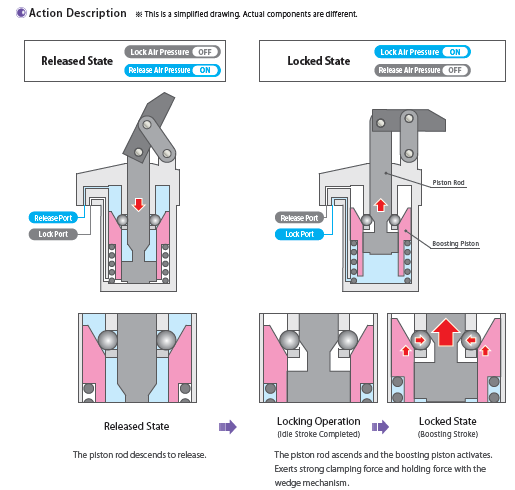

Locking Action

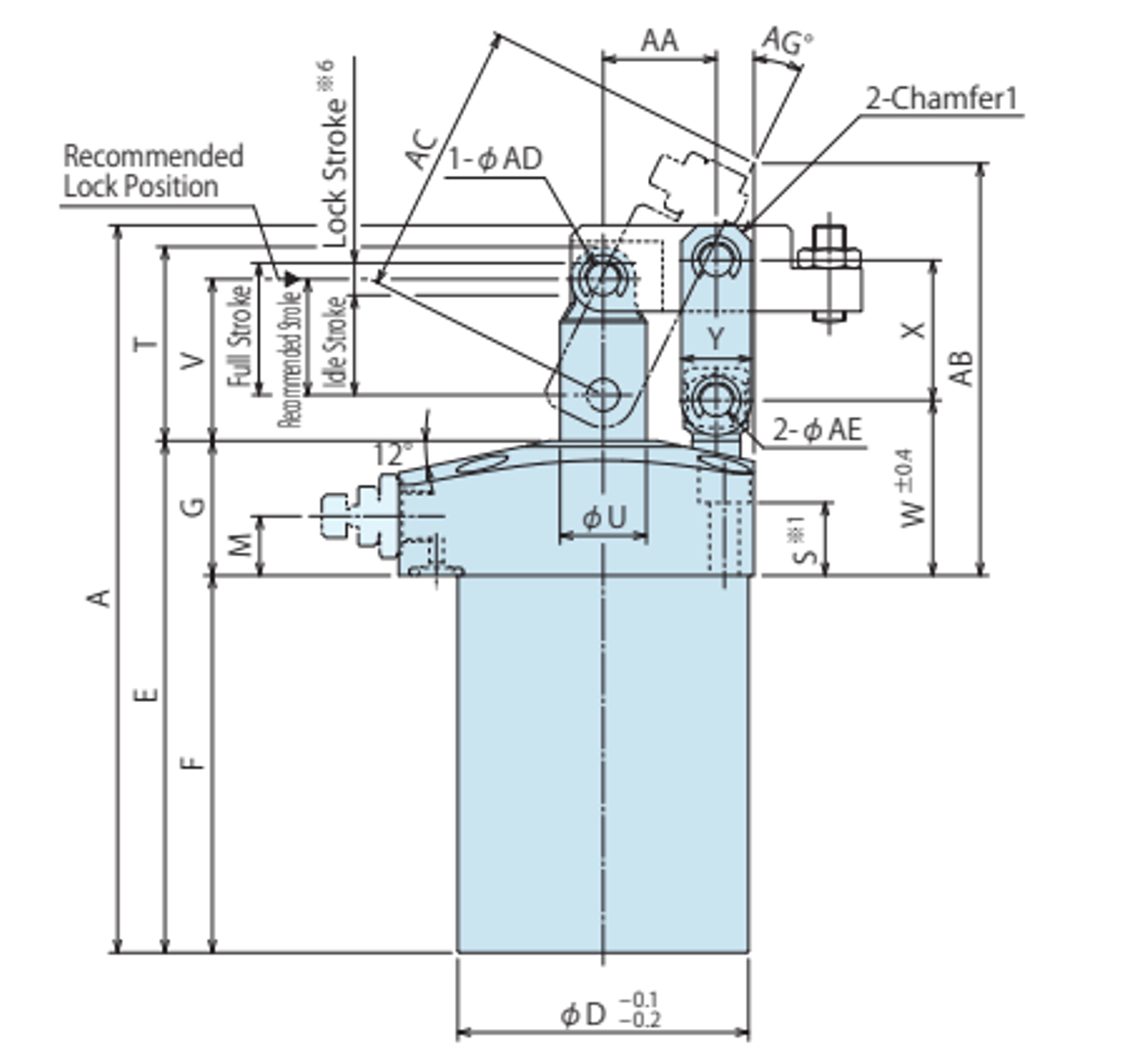

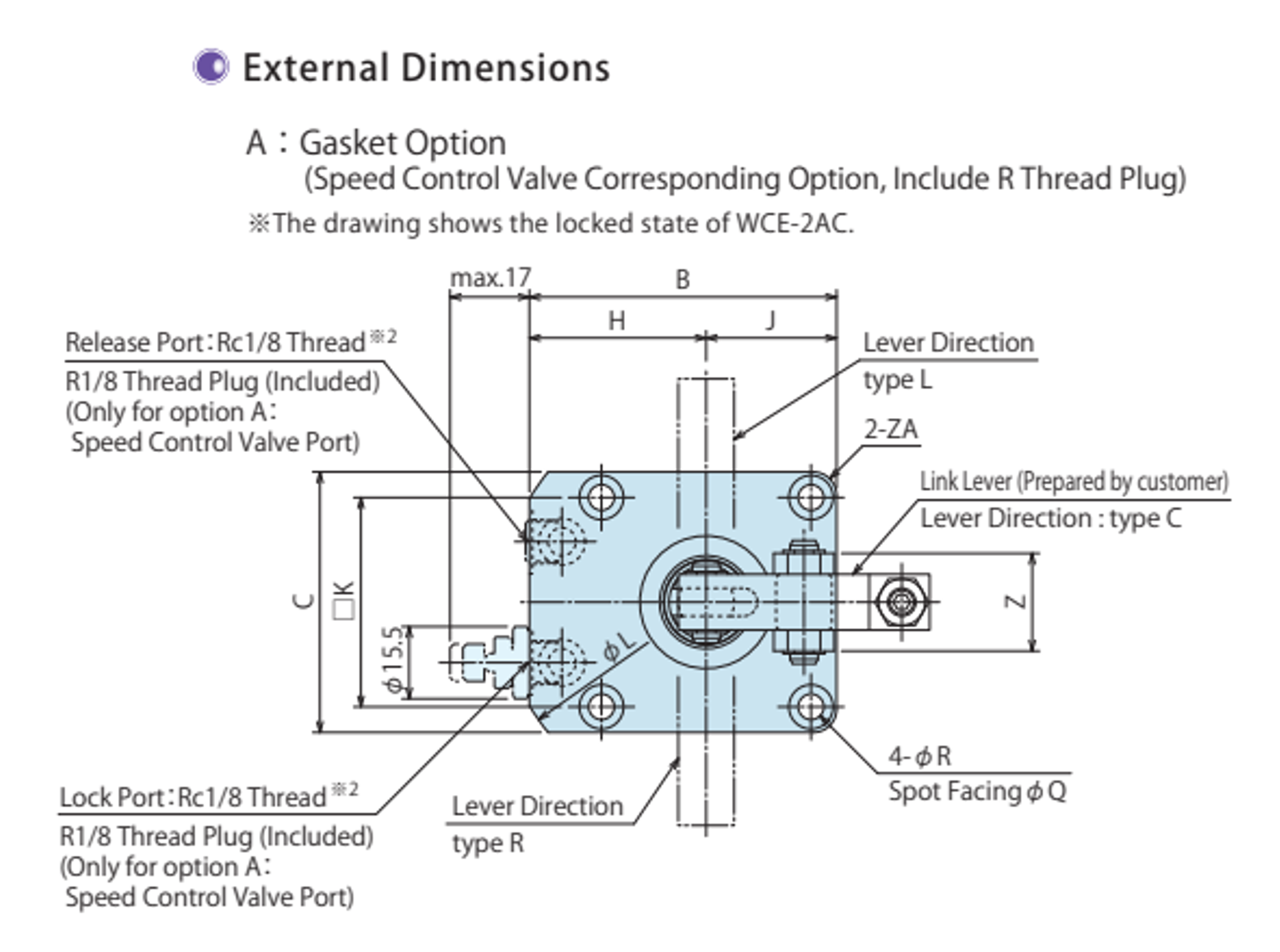

Pneumatic Locking Link Clamps

PART NO.	MAX CLAMPING FORCE (kN)	MAX RETENTION FORCE (kN)	MAX AIR PRESSURE (BAR)	A	B	C	D	T
WCE1002-2GC	.94	2	5	123	60	50	46	31.5
WCE1602-2GC	1.59	3	5	134.5	66	56	54	36
WCE2502-2GC	2.46	4.5	5	157.5	76	66	64	40
WCE4002-2GC	3.92	6.5	5	184	87	78	77	50.5

Check Price & Availability
