QUANTITY PART NO. Max
Pressure
(Bar)
Max
Clamping
Force
(Kn)
Stroke
(One Side)

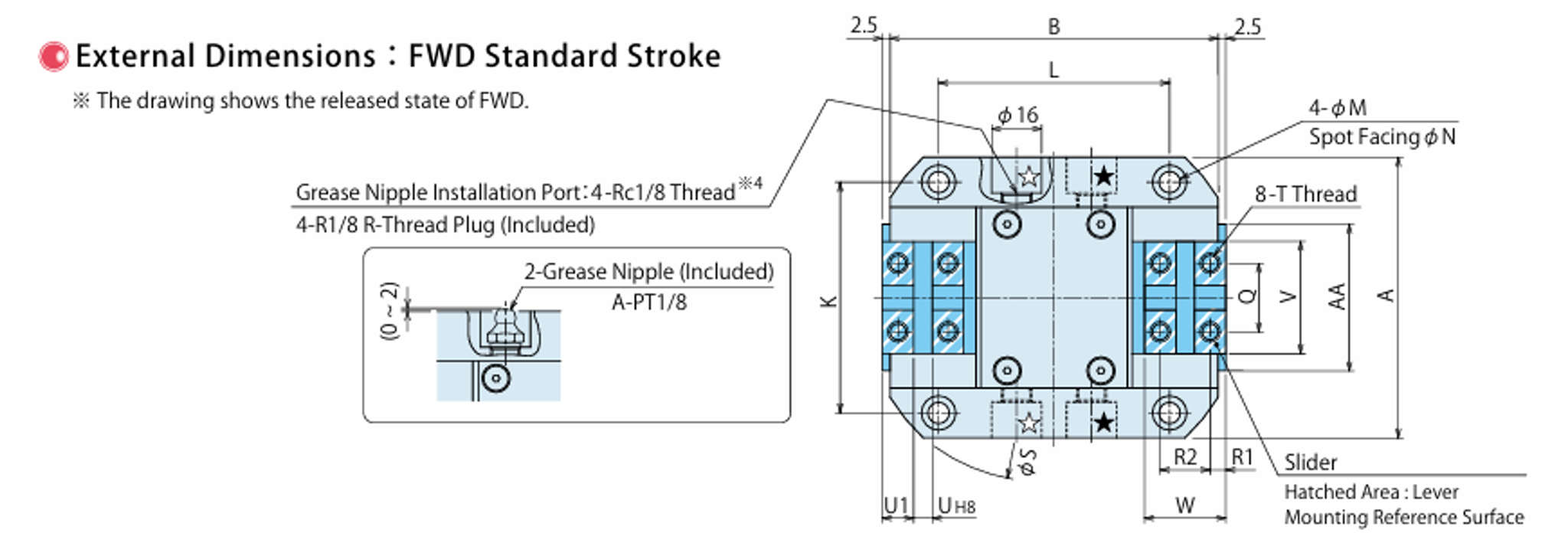

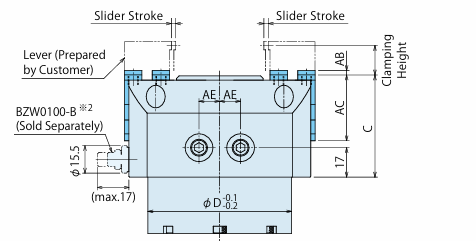

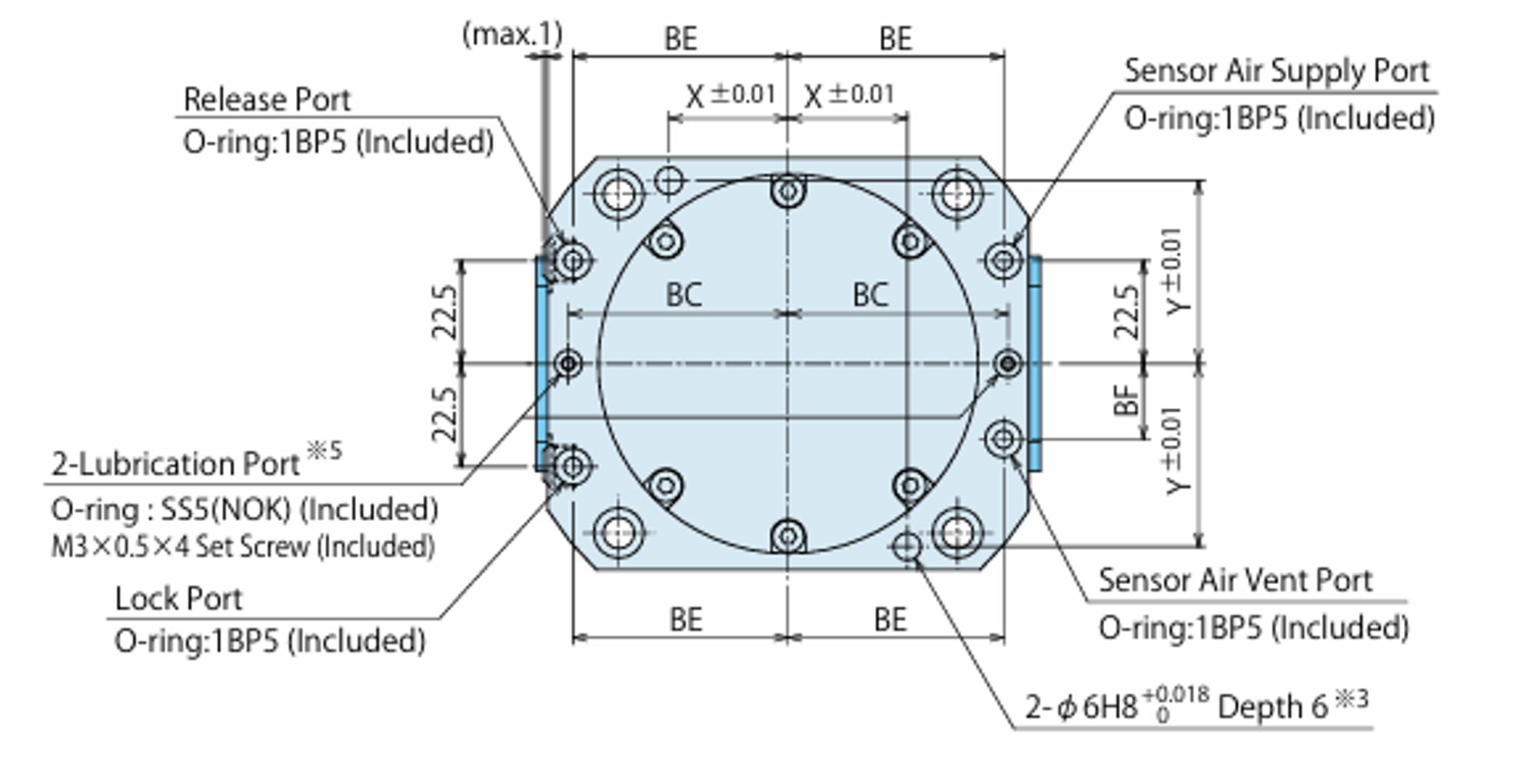

A B C L BE
FWD0650 10 12 2.5 90 105 59 74 47
FWD0850 10 20.7 2.5 110 125 61.5 82 57
FWD1000 10 28.7 2.5 125 140 63.5 105 64.5
