Rectangular Tooling Plates – Blank (16" x 20") * Model

Product Catalog

Catalog Tools

Material

Cast Iron

Products

Exclusive Products New Products Quick Ship Products

Remove All Filters

Language

Convert Units of Measure =

Rectangular Tooling Plates – Blank (16" x 20") *

Save to My Project

What is this?

Product Information

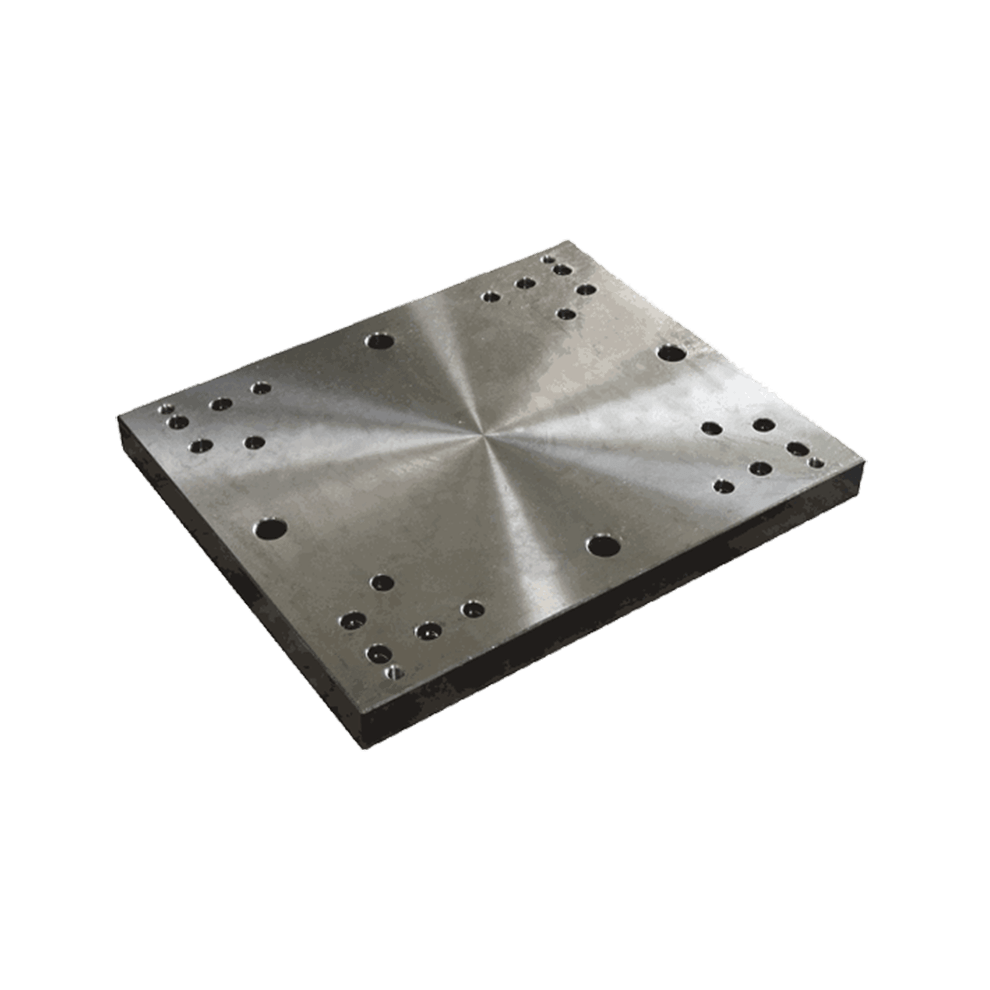

Precision blank tooling plates that are ready to mount on virtually any milling machine, reducing tooling cost and lead time considerably. Cast iron material, finish ground to tight tolerances. Available in two sizes – with the smaller, 16" x 20" size shown here.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Two sets of Locating-Key holes allow mounting plates either lengthwise or widthwise on a machine table.

Mounting

T-Slotted Table

Precision Locating-Key holes allow accurate mounting on a machine table. Two sets of locating holes allow mounting plates either lengthwise or widthwise on a machine table. Universal mounting holes fit almost any inch or metric slot spacing. See Related Products below for mounting accessories.

Material

Gray cast iron, ASTM class 40. DFARS and RoHS compliant.

Click here for detailed material and finish specifications.

Rectangular Tooling Plates – Blank (16" x 20") *

QUANTITY	PART NO.	A NOMINAL	A ACTUAL	B NOMINAL	B ACTUAL	C	NO. OF MOUNTING SCREWS REQUIRED	APPROX WEIGHT (lbs)
	CL-BF00-0111	16	15.875	20	19.875	2.0000	4	160

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
