ROEMHELD Concentric Clamping Elements (16 to 121mm Bores)

ROEMHELD Power Workholding,ID & Bore Clamps

Save to My Project

What is this?

Product Information

3600 psi max

Double Acting

Concentric Clamping Elements provide internal clamping for a wide range of bore diameters with 0.02mm centering repeatability. These hydraulically operated elements can be equipped with especially low clamping jaws to receive workpieces with interior bores of shallow depth. Many workpieces can directly rest on the clamping jaws so that additional support points are not required. By using a 3-point element for zero-point location together with a 2-point element for radial location, workpieces with two centering holes can be exactly positioned. 2-point elements can also be used for clamping in slots.

Contact Customer Service
Contact Customer Service

Browse our Selection of ROEMHELD Concentric Clamping Elements (16 to 121mm Bores)

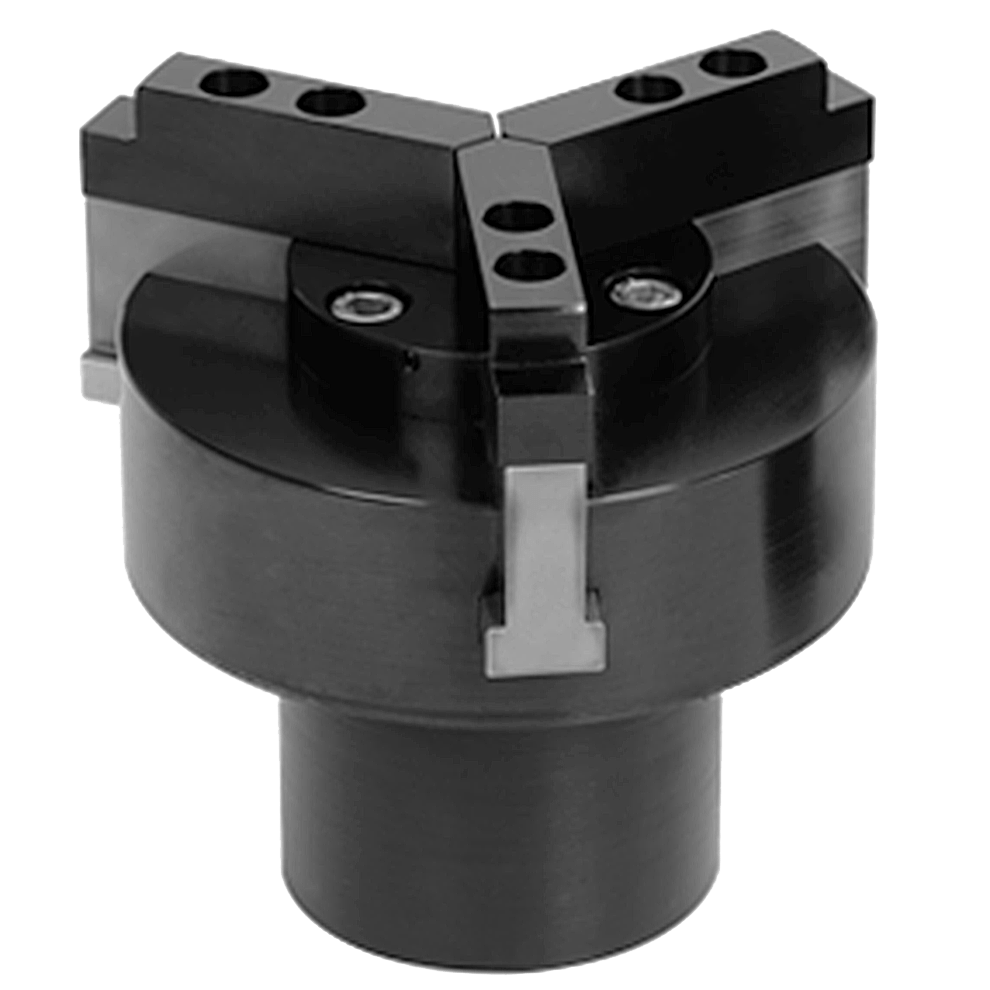

ROEMHELD Concentric Clamping Elements – 3 Point, H4.306 (16 to 121mm Bores)

ROEMHELD Concentric Clamping Elements – 2 Point, H4.306 (16 to 121mm Bores)
