ROEMHELD Mini Compact Clamps – Top Flange, Cartridge Type, B1.8271

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

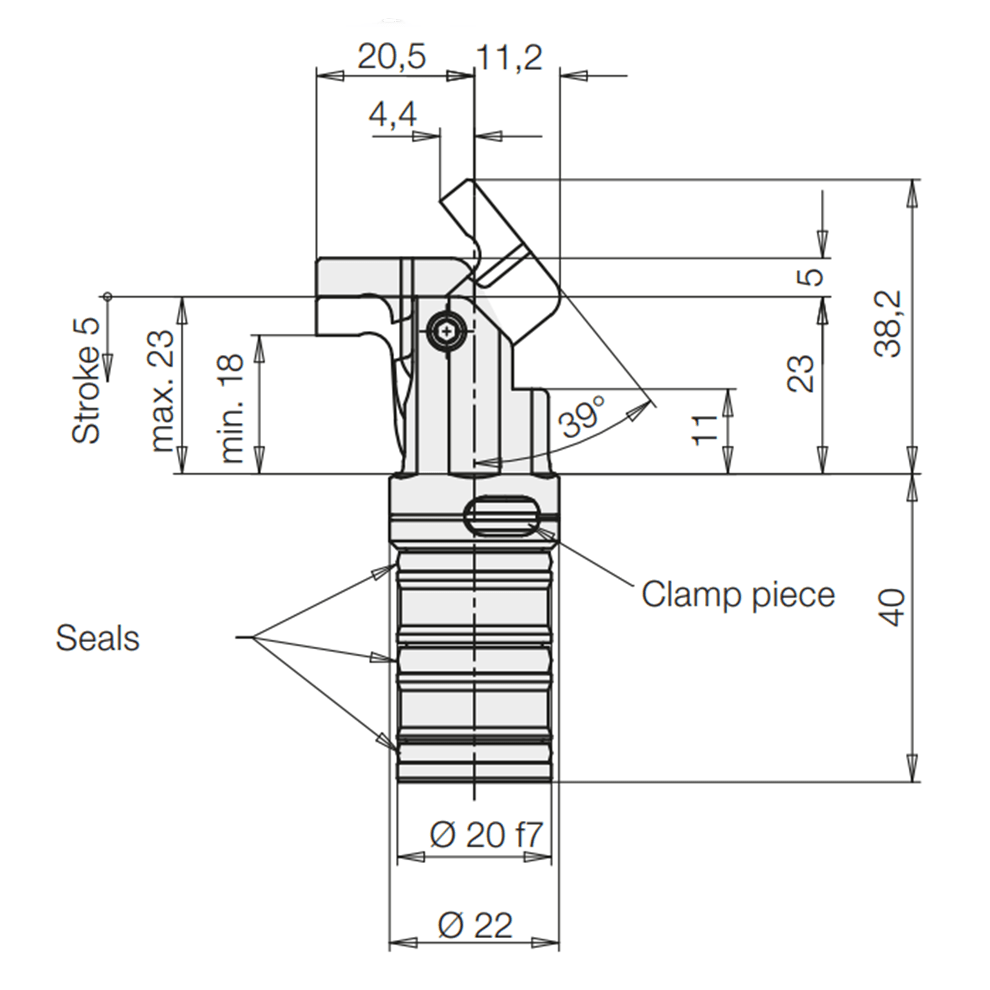

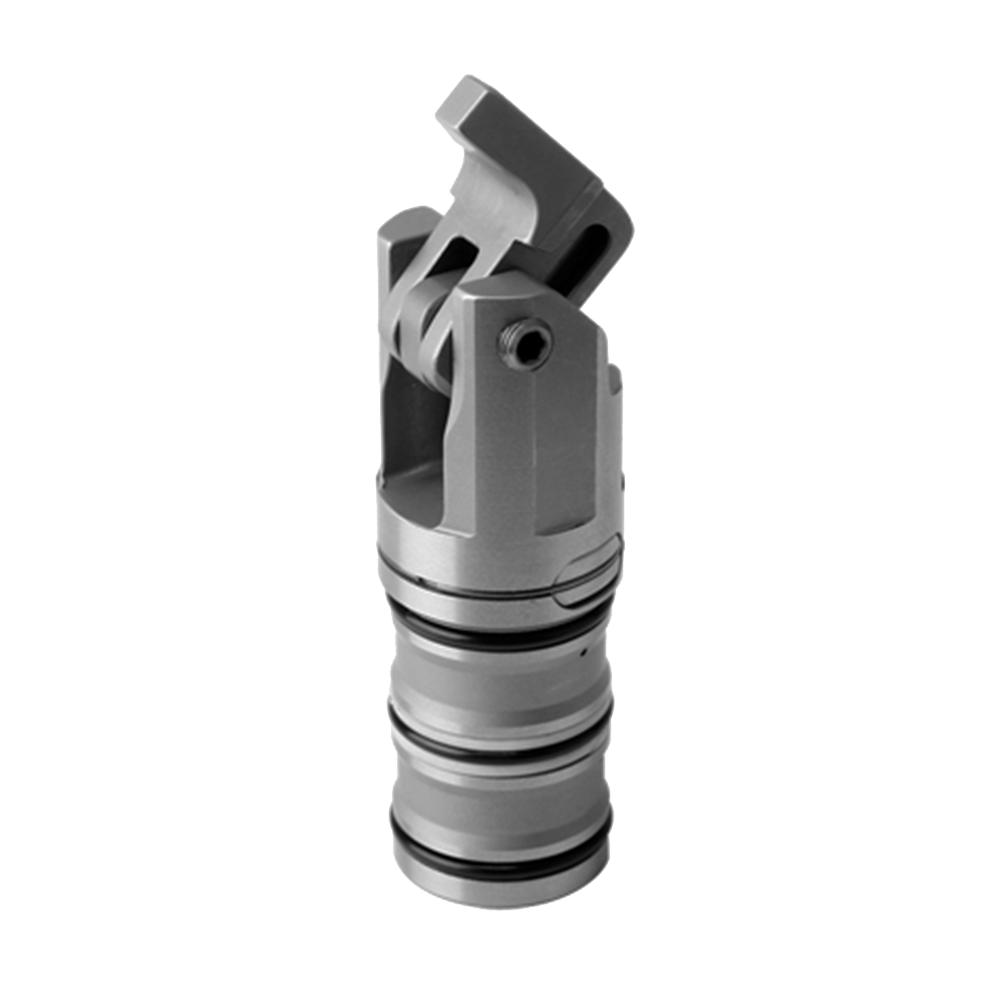

ROEMHELD Mini Compact Clamps – Top Flange, Cartridge Type, B1.8271

2900 psi max

Double Acting

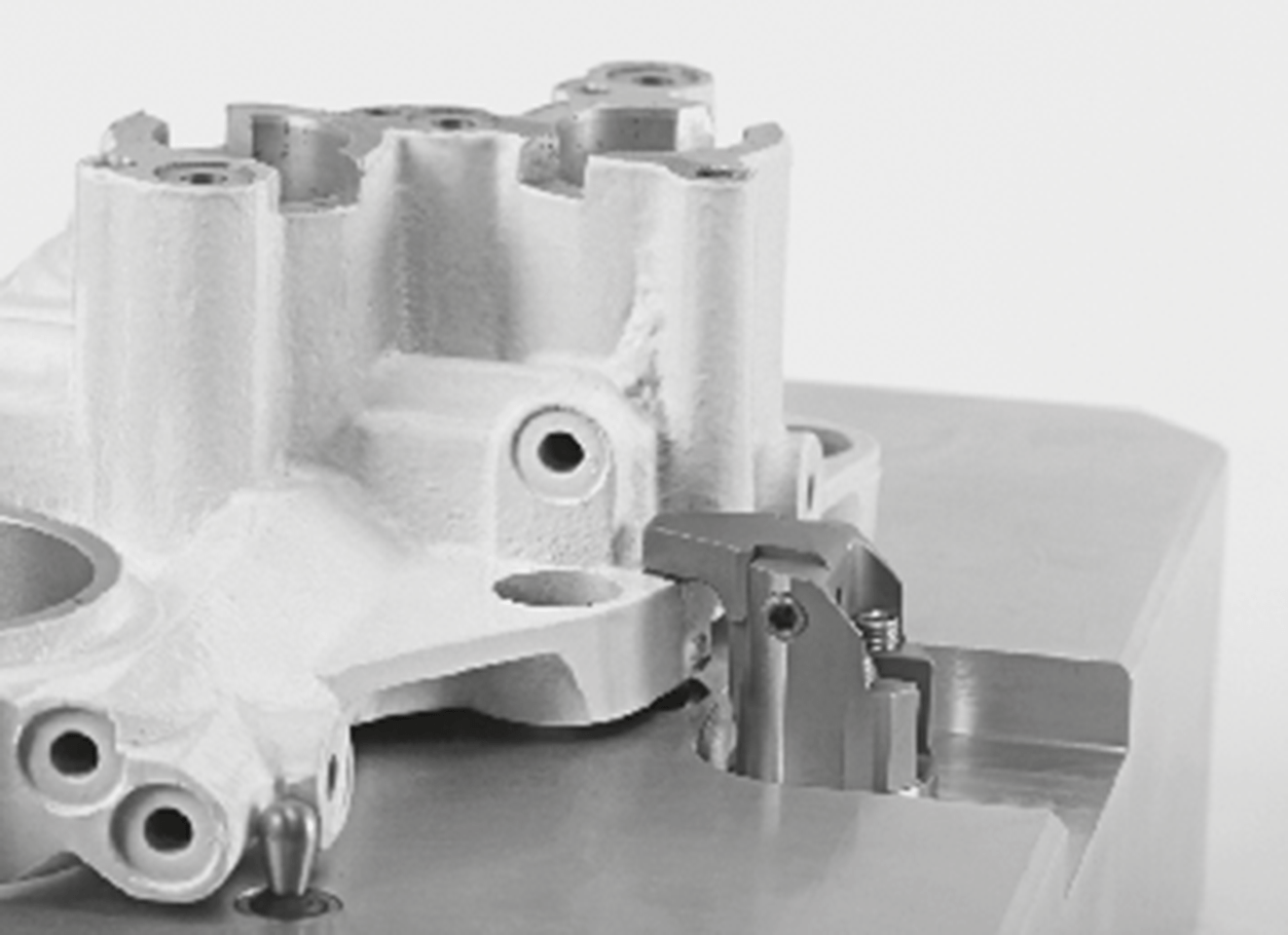

Compact Clamps have a sturdy lever mechanism that pivots into clamping position. These clamps are extremely compact both in footprint and overall height. The clamping lever pivots a full 90° for clear loading even when using custom long clamping levers. Ideal for clamping in narrow recesses. The top-flange cartridge-type version shown here is designed specifically for space-saving manifold mounting. Thanks to the small housing diameter of only 22mm, this clamp can be installed in places where up to now there was insufficient space for a hydraulic clamping element. The minimum centerline distance between clamps is 28 mm.

Available in one clamp size, double acting only. Clamping force at 2900 psi with standard clamping arm:

560 lbs

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Documents

B1.8271

Data sheet

Clamping Action

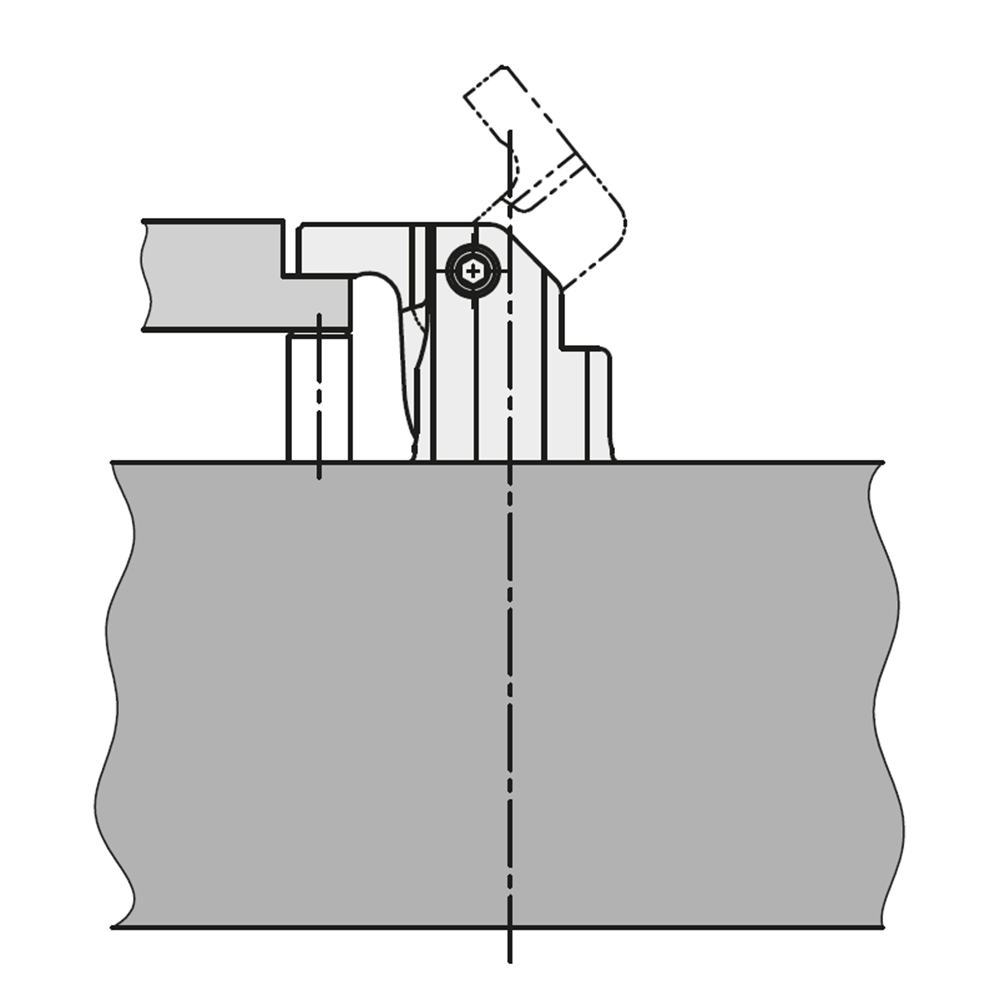

Applying fluid pressure to the A (clamping) port advances the piston, which pivots the clamping arm into position. Switching pressure to the B (unclamping) port positively retracts the piston and the attached clamping arm.

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Steel	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

ROEMHELD Mini Compact Clamps – Top Flange, Cartridge Type, B1.8271

QUANTITY	PART NO.	MAXIMUM CLAMPING FORCE (lbs)	MAXIMUM CLAMPING FORCE (kN)	STROKE (mm)
	CLR-1800-110	290	1.3	5
