ROEMHELD Power Workholding Swivel Contact Bolt

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

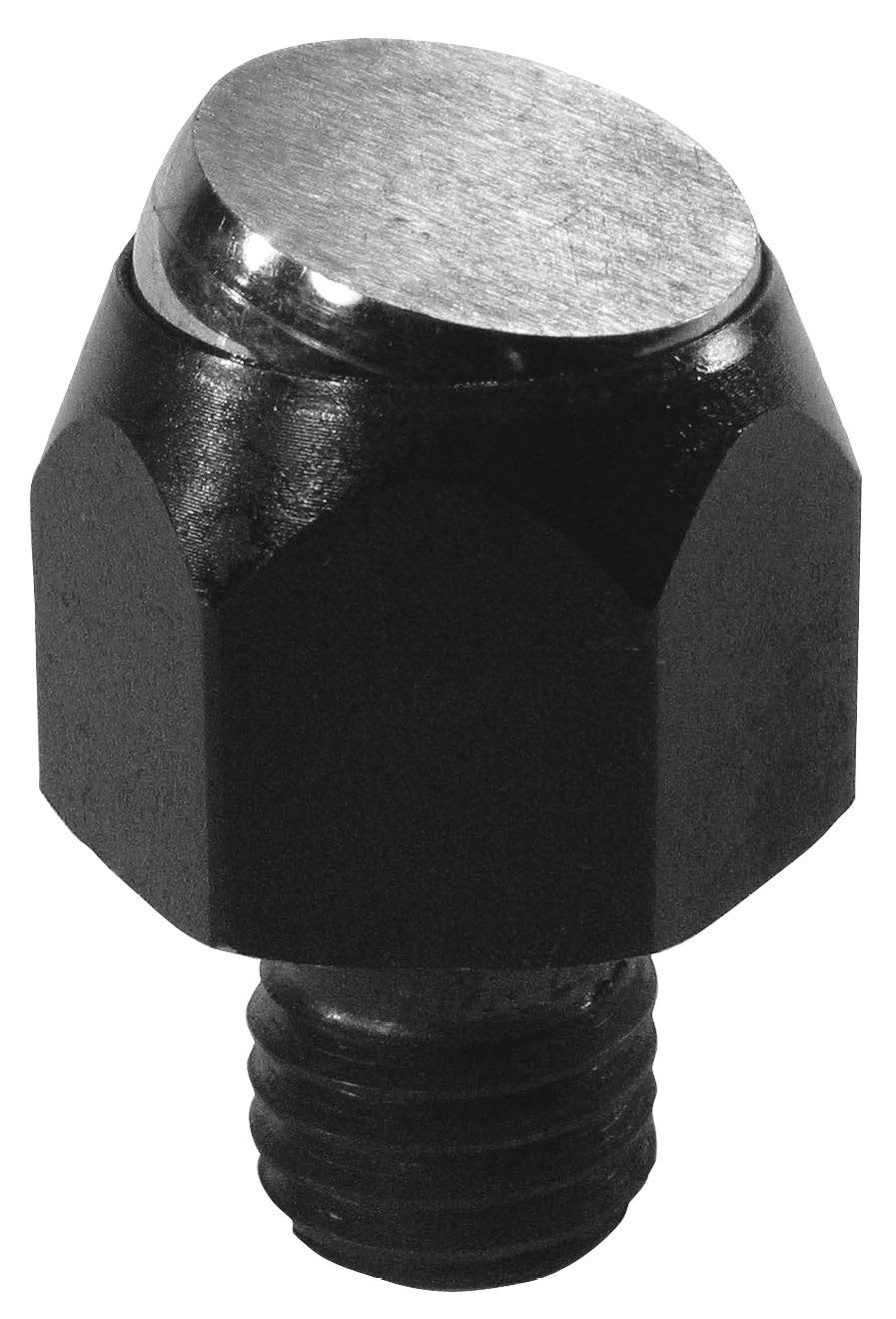

ROEMHELD Power Workholding Swivel Contact Bolt

Power Workholding Swivel Contact Bolts are for general-purpose use as contact points on Threaded-Body Push Clamps, Block Cylinders, Threaded Cylinders, and other workholding clamps. These hardened steel bolts protect the cylinder rod and provide a contact point to hold the workpiece securely. The swivel-head version shown here distributes clamping force to prevent marring.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Material

MATERIAL	HEAT TREAT	FINISH
Steel	Heat Treated Rc 50-60	Black Oxide

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

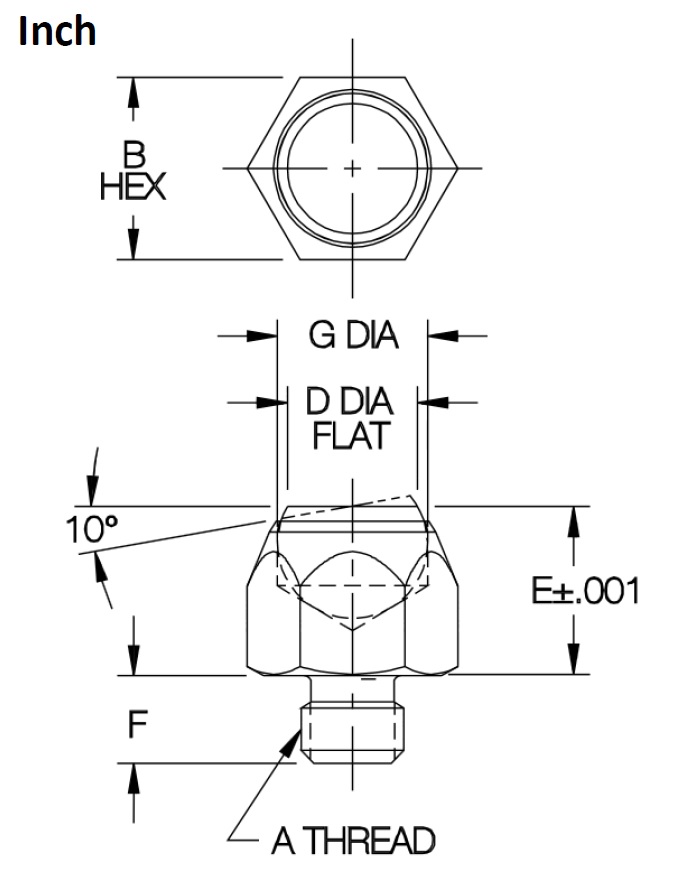

ROEMHELD Power Workholding Swivel Contact Bolt

Inch

Part No.	A THREAD	B	D DIA	E NOMINAL	E ACTUAL	F	G
CLR-420-CB	5/16-18	9/16	13/32	1/2	.5000	.32	15/32
CLR-421-CB	3/8-16	13/16	19/32	13/16	.8125	.47	23/32
CLR-422-CB	1/2-13	7/8	5/8	13/16	.8125	.41	23/32
CLR-423-CB	5/8-11	1-1/16	13/16	1	1.0000	.61	29/32

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

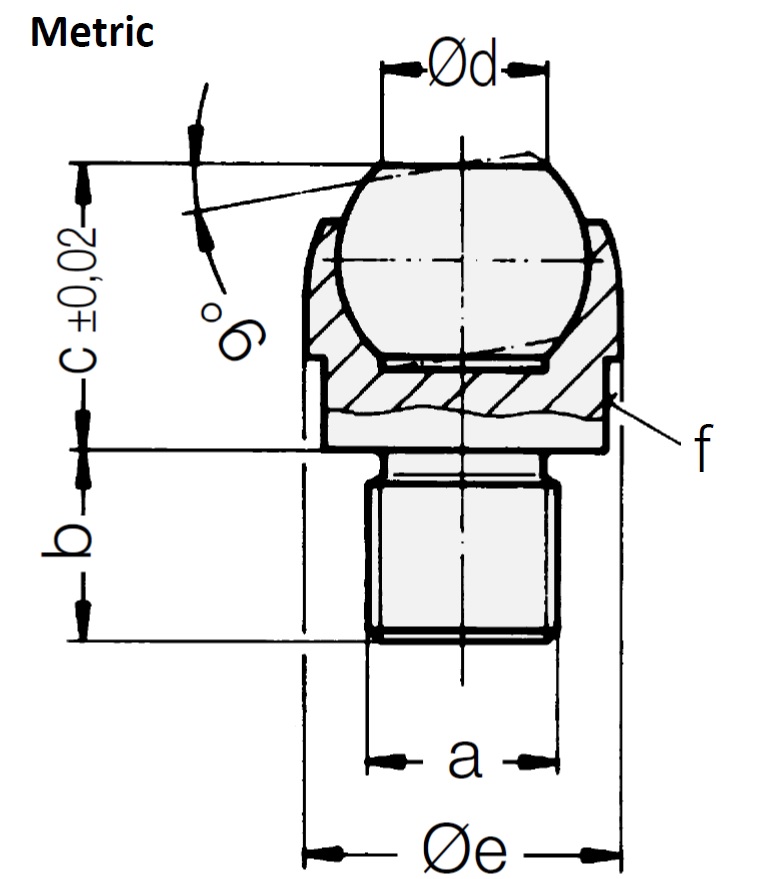

Metric

Part No.	a THREAD	b (mm)	c (mm)	Ød (mm)	Øe (mm)	f (mm) Across Flats
CLR-3614-228-CB	M6	6	13	7.2	13	11
CLR-3614-072-CB	M8	8	13	7.2	13	11
CLR-3614-073-CB	M10	10	18	10.5	20	17
CLR-3614-074-CB	M12	12	18	10.5	20	17
CLR-3614-075-CB	M16	16	27	20	30	27

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
