Banjo Elbow (Compression Type)

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

CLR-402-F

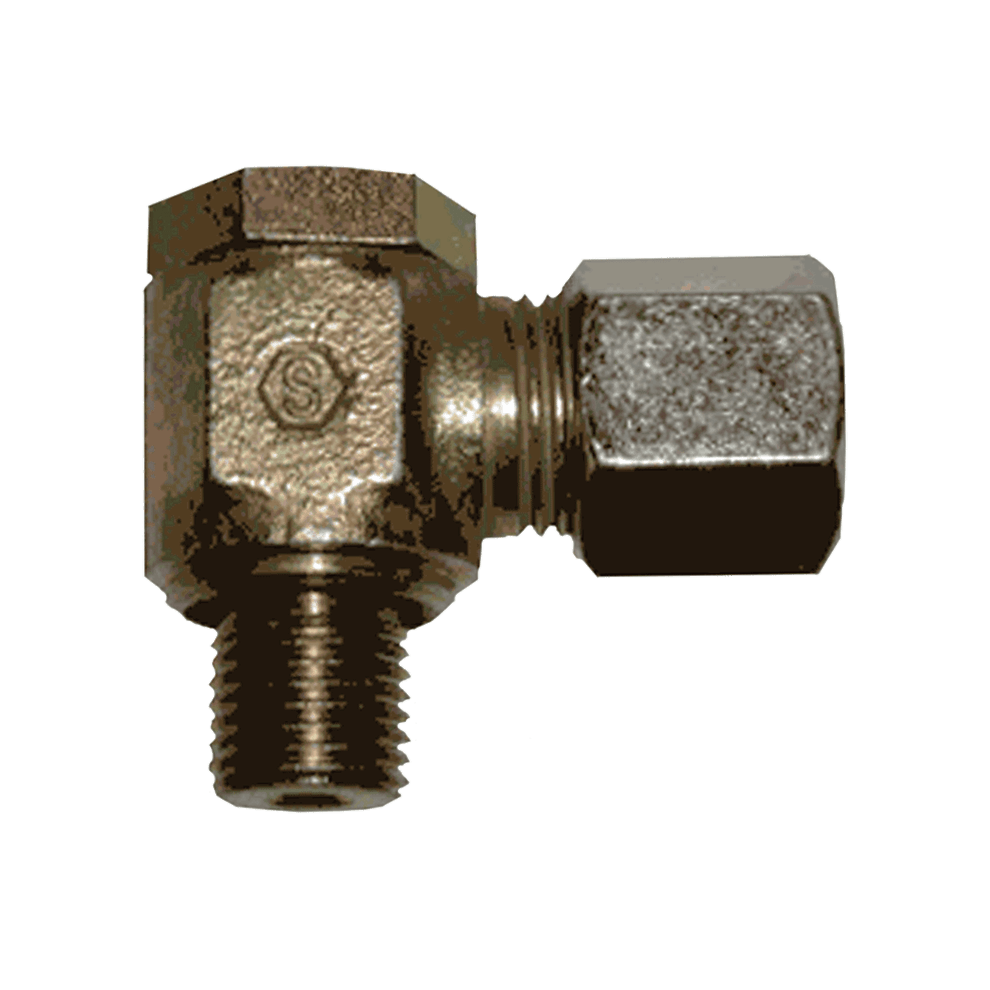

90° banjo-type elbow fitting for any standard 1/4" BSPP port. Compression nut accepts standard 5/16" O.D. tubing. Compression fittings are designed to secure heavy-wall tubing using a bite-type ferrule and compression nut. These fittings accept our standard 5/16" O.D. tubing (cut off straight and deburred) as well as Fixture Hose and Heavy-Duty Hose with compression-type tube ends.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Design Considerations & Safety Precautions

7250 psi maximum operating pressure. Use these fittings only with our standard steel tubing and hydraulic hose. Our standard tubing is 5/16" O.D. seamless heavy-wall tubing, C1010 steel, cold drawn, fully annealed, .065" wall thickness, 22,800 psi minimum burst pressure.

Material

MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Steel	-	-	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Banjo Elbow (Compression Type)

QUANTITY	Part No.	Maximum operating pressure (psi)	Fits port size	Tubing O.D. size
	CLR-803-F	7500	1/4 BSPP	5/16
