SAE Port Fittings (Compression Type)

ROEMHELD Power Workholding

Product Information

These adaptor fittings allow using other brands of power-workholding components that have SAE O-ring ports in our standard power-workholding systems (5/16" O.D. tubing). Please note: SAE O-ring fittings are limited to 5000 psi operating pressure and limit the entire system to that pressure.

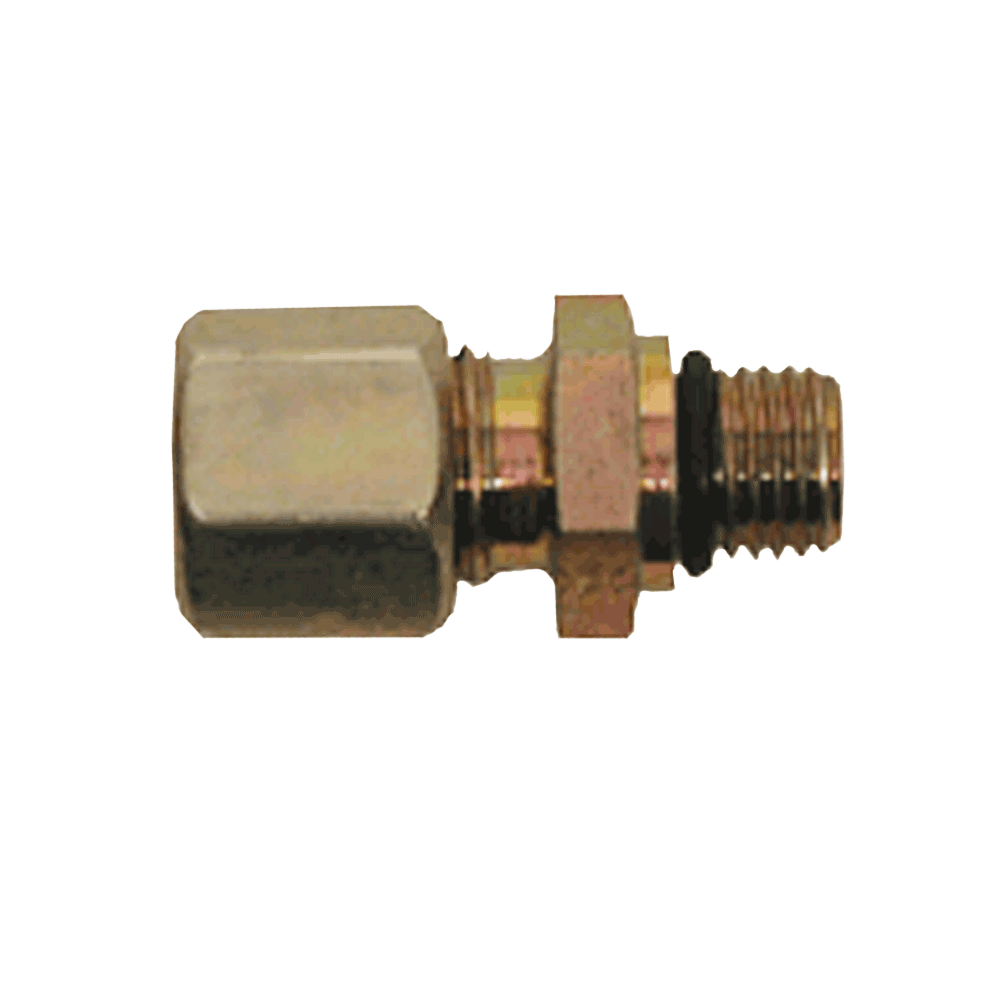

Straight port fitting with a 5/16" compression nut. Compression fittings are designed to secure heavy-wall tubing using a bite-type ferrule and compression nut. These fittings accept our standard 5/16" O.D. tubing (cut off straight and deburred) as well as Fixture Hose and Heavy-Duty Hose with compression-type tube ends. Available to fit three sizes of SAE O-ring ports:

#2 SAE

#4 SAE

#6 SAE

Application Information

Available Sizes

CLR-922-F

For #2 SAE Port

CLR-942-F

For #4 SAE Port

CLR-962-F

For #6 SAE Port

Design Considerations & Safety Precautions

Use these fittings only with our standard tubing and hose. Our standard tubing is 5/16" O.D. seamless heavy-wall tubing, C1010 steel, cold drawn, fully annealed, .065" wall thickness, 22,800 psi minimum burst pressure. SAE O-ring fittings are limited to 5000 psi operating pressure and limit the entire system to that pressure. Other brands of power-workholding components are usually not totally leak-free, so they should not be used on pallet fixtures disconnected from the hydraulic power source.
