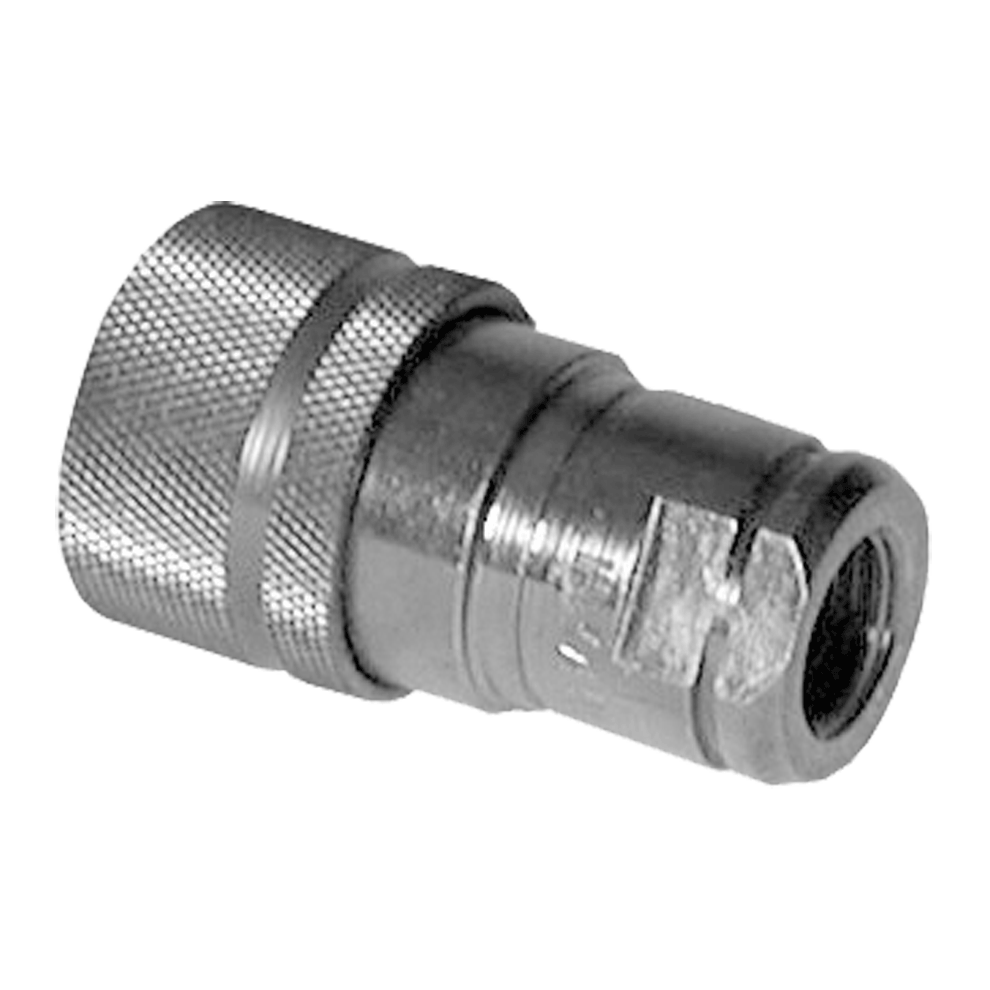

Quick Disconnects – Heavy Duty, F9.381 (Female Coupler)

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

Quick Disconnects – Heavy Duty, F9.381 (Female Coupler)

7250 psi max

Quick Disconnects allow the fluid line to be uncoupled from a machining fixture, automatically sealing the fluid lines on both sides to prevent leakage. Easy one-hand operation without any wrenches or tools. The male Quick Disconnect is usually mounted on the fixture, with the female Quick Disconnect mounted on the hose. To keep Quick Disconnects clean while uncoupled, the female coupling has an available protective plug (order separately below), and the male coupling has an available protective cap.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Documents

F9.381

Data Sheet

Operation

To couple, push the female coupling's knurled sleeve forward manually, then advance the coupling against spring force until a positive mechanical stop is reached. When the sleeve is released in this forward position, the locking balls of the female section snap into the groove of the male section for positive retention. To uncouple, pull the knurled sleeve back manually. This frees the locking balls and allows the male and female sections to disengage.

Design Considerations & Safety Precautions

Quick Disconnects should only be operated with both sides depressurized. When uncoupling a pressurized pallet fixture after clamping, a Shutoff Valve must be used on the fixture side.

Quick Disconnects – Heavy Duty, F9.381 (Female Coupler)

QUANTITY	PART NO.	ITEM
	CLR-9384-106	Quick Disconnect Coupler (Female)
	CLR-9384-300	Protective Plug
