Fixture Hoses (37-Degree Flare)

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

7250 psi max

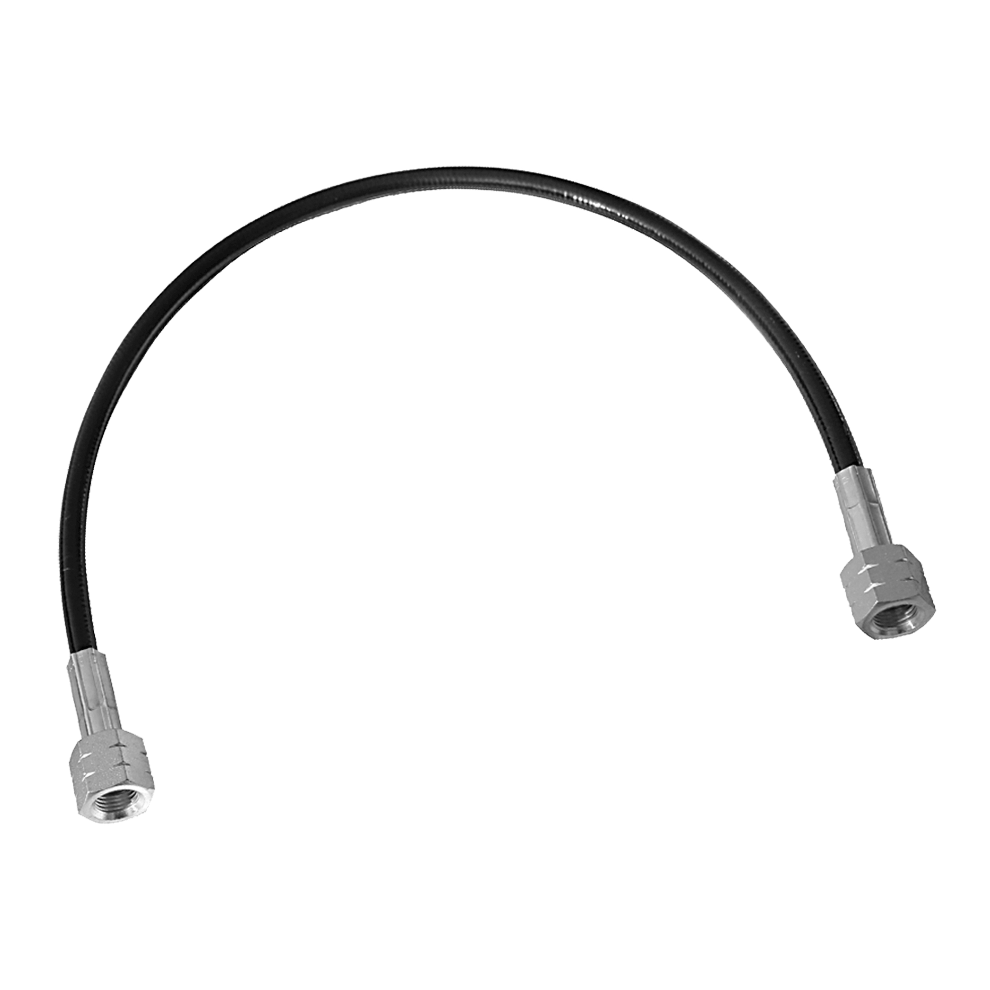

This exclusive small-diameter high-pressure hydraulic hose is especially designed for workholding applications. Can be used for flexible connections, or for rigid connections as an alternative to tubing. Easy to fit into tight spots, with a 1-5/8" minimum bend radius. 5/32" inside diameter, .090" wall thickness. Operating temperature range -40 to 212°F. 25,520 psi minimum burst pressure provides a 3.5 to 1 safety factor at 7250 psi.

The version shown here has swivel-nut ends for 37°-flare fittings. Choice of many standard lengths, from 6 to 24" long. Special lengths are available upon request. For longer runs, see Heavy-Duty Hoses in Related Products below.

Design Considerations & Safety Precautions

Do not use any type of hose other than our Heavy-Duty Hose or Fixture Hose with our power workholding products.

Fixture Hoses (37-Degree Flare)

PART NO.	OVERALL LENGTH	ID	MINIMUM BEND RADIUS
CLR-HH-156-006-5J5J	6	5/32	1.62
CLR-HH-156-007-5J5J	7	5/32	1.62
CLR-HH-156-008-5J5J	8	5/32	1.62
CLR-HH-156-009-5J5J	9	5/32	1.62
CLR-HH-156-010-5J5J	10	5/32	1.62
CLR-HH-156-011-5J5J	11	5/32	1.62
CLR-HH-156-012-5J5J	12	5/32	1.62
CLR-HH-156-013-5J5J	13	5/32	1.62
CLR-HH-156-014-5J5J	14	5/32	1.62
CLR-HH-156-015-5J5J	15	5/32	1.62
CLR-HH-156-016-5J5J	16	5/32	1.62
CLR-HH-156-017-5J5J	17	5/32	1.62
CLR-HH-156-018-5J5J	18	5/32	1.62
CLR-HH-156-019-5J5J	19	5/32	1.62
CLR-HH-156-020-5J5J	20	5/32	1.62
CLR-HH-156-021-5J5J	21	5/32	1.62
CLR-HH-156-022-5J5J	22	5/32	1.62
CLR-HH-156-023-5J5J	23	5/32	1.62
CLR-HH-156-024-5J5J	24	5/32	1.62
