ROEMHELD 4-Way Clamping Valves (Lever Type)

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

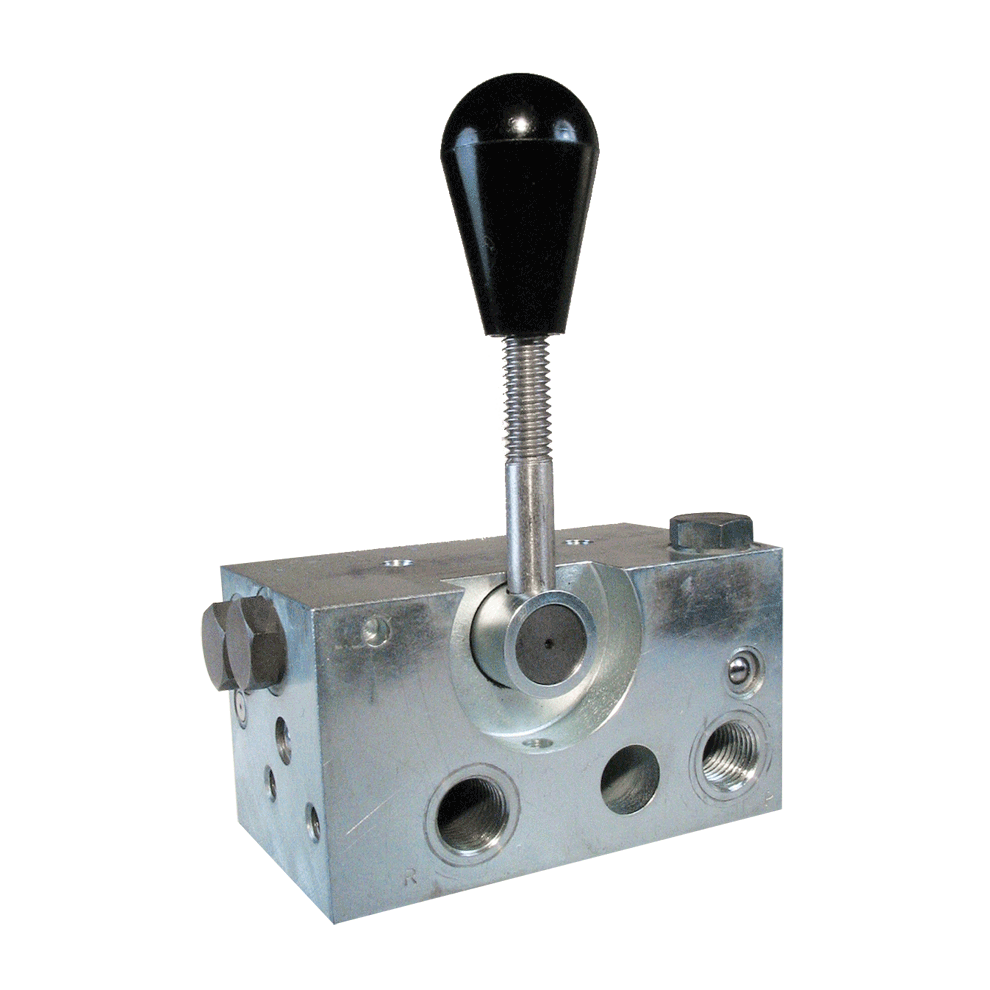

ROEMHELD 4-Way Clamping Valves (Lever Type)

7250 psi max

For Single-Acting or Double-Acting Systems

Lever-type 4-way clamping valves are large, heavy valves that are usually mounted individually rather than series mounted. 4-way valves can be used to control either double-acting or single-acting clamps. These high-quality valves have a zero-leakage double poppet design, with built-in check valves to ensure fail-safe clamping. The lever has two positions: swing 84° to clamp; swing back to unclamp.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Mounting & Fluid Supply

Fasten valve to fixture using the two tapped mounting holes on the side. Mount in any position, horizontal or vertical.

Clamping valve has four 1/4" BSPP ports:

P = Pressure into valve from power source

R = Return from valve to power source

A = Flow from valve to clamps, clamping

B = Flow from valve to clamps, unclamping

Port connections and flow directions must be exactly as shown on the drawings; otherwise the valve will not function correctly. Use only with clean, approved hydraulic fluid (CLR-2-FL or equivalent). Fluid must be kept clean (10 micron or better nominal filtration). Do not use NPT fittings.

ROEMHELD 4-Way Clamping Valves (Lever Type)

QUANTITY	PART NO.	MAXIMUM FLOW RATE (cu in/min)	PORT SIZE
	CLR-302-V	730	1/4" BSPP

Check Price & Availability
