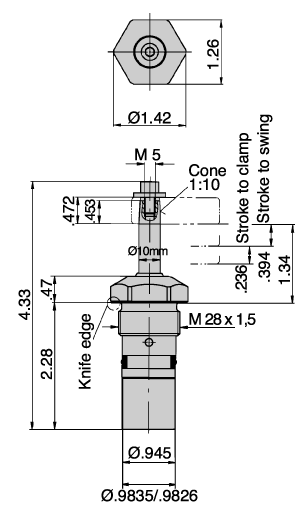

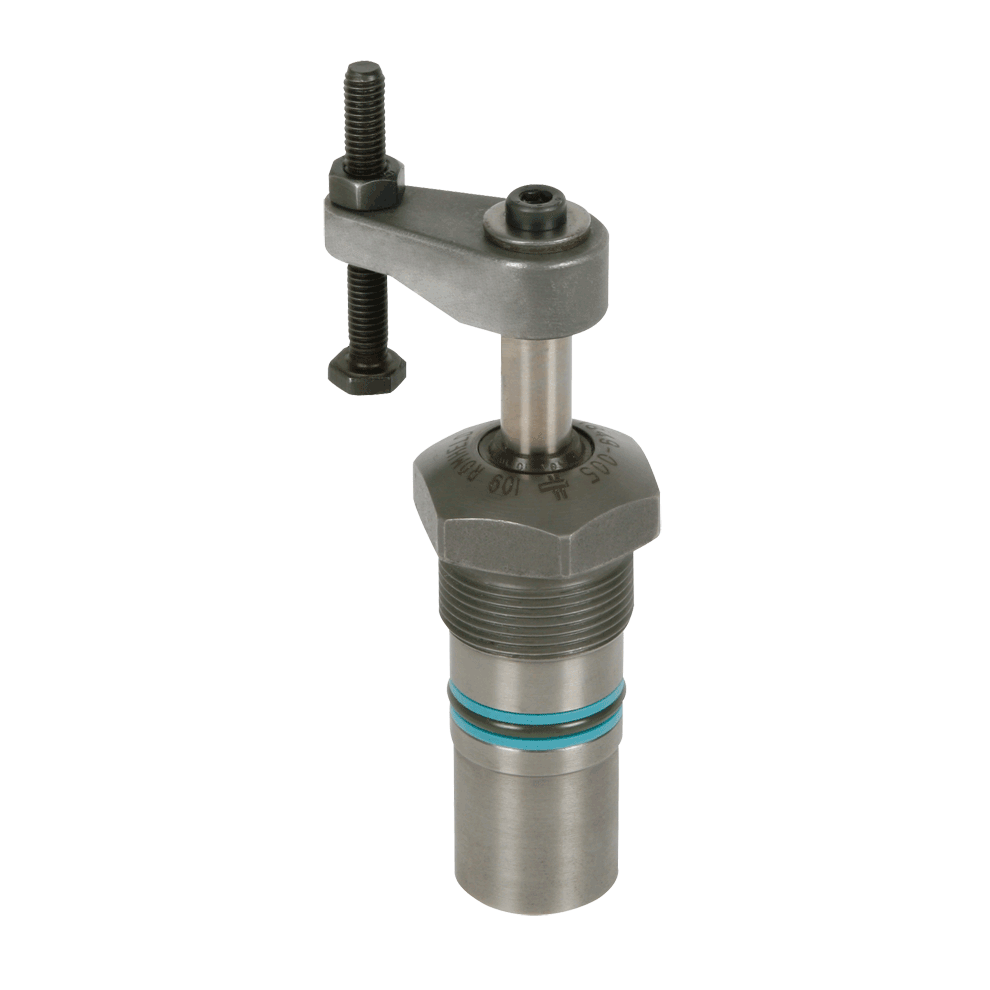

ROEMHELD Compact Swing Clamps – Threaded Cartridge, Double Acting, B1.8491 (1 Series)

ROEMHELD Power Workholding

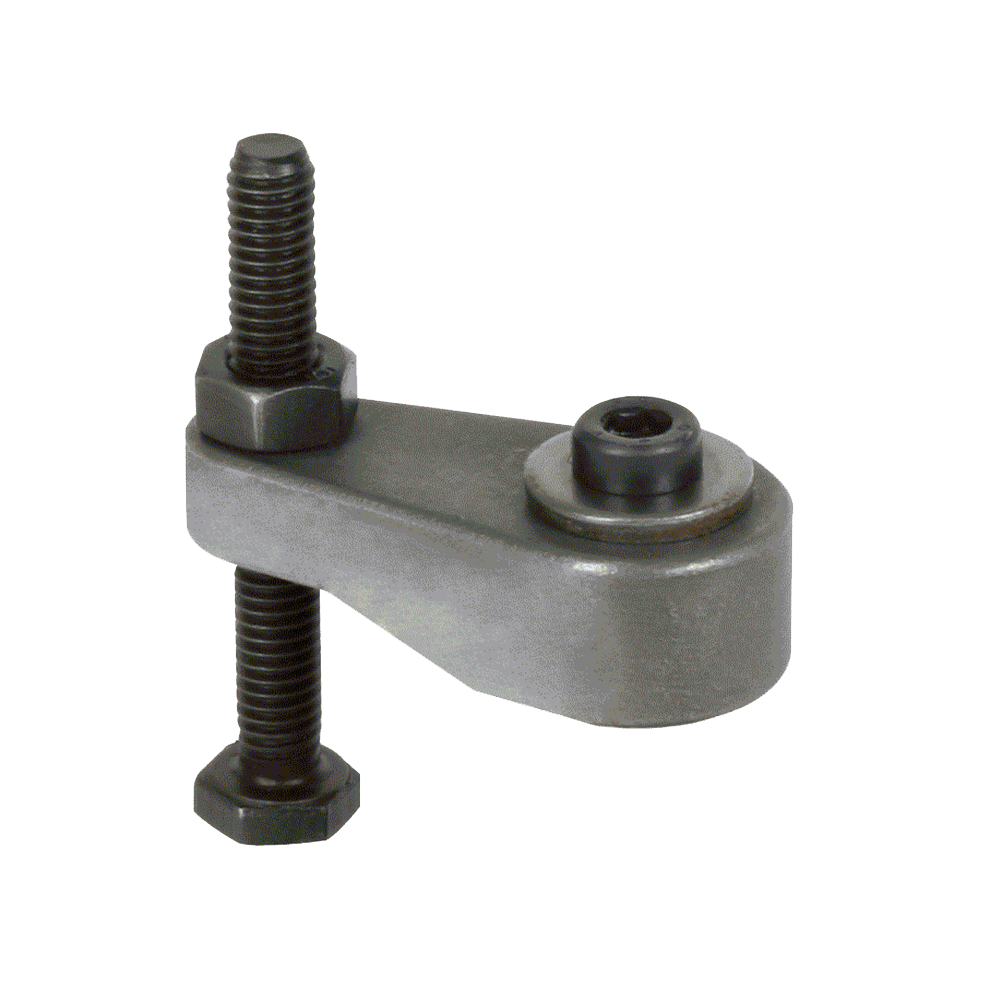

Order clamping arm separately below.
QUANTITY PART NO. CLAMP
SIZE

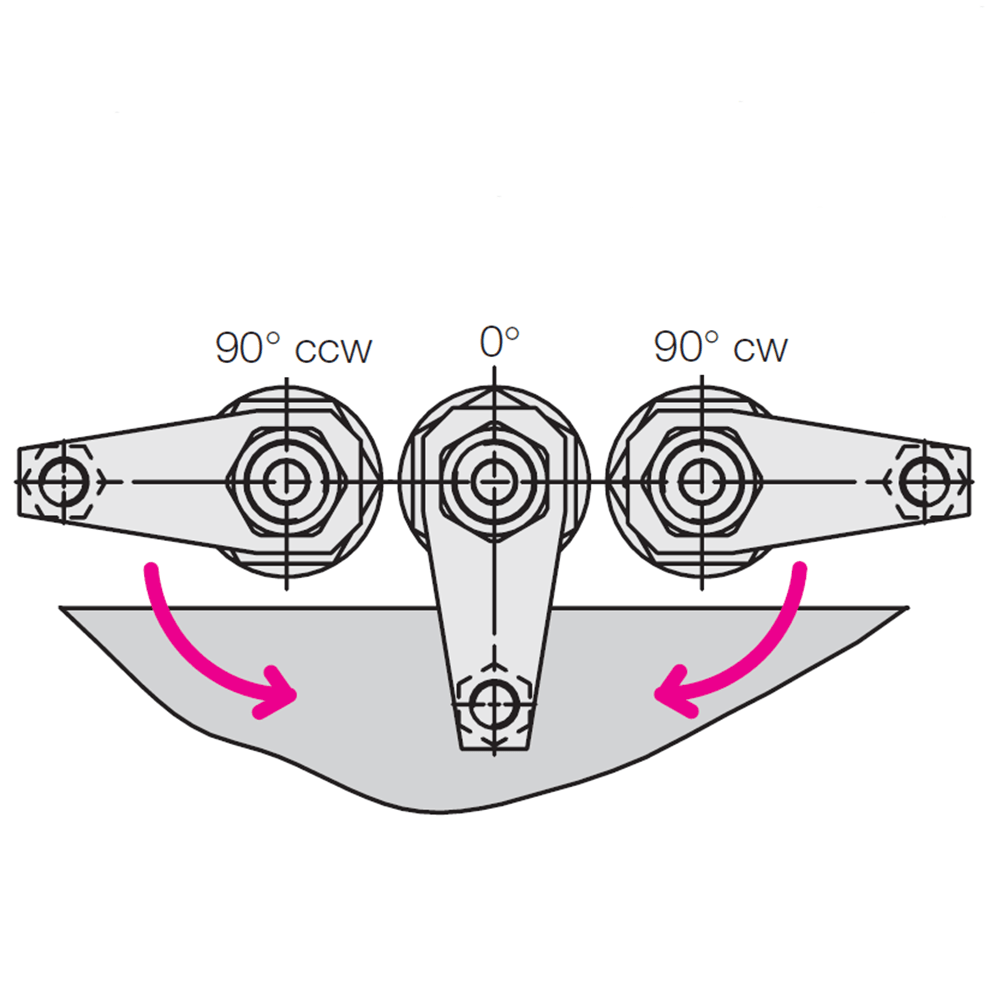

SWING
DIRECTION
MAXIMUM
CLAMPING
FORCE
(lbs)
MAXIMUM
CLAMPING
FORCE
(kN)
CLAMPING
STROKE
(mm)
TOTAL
STROKE
(mm)
A
THREAD
CLR-1850-115-SCD 1 Series 90° cw 490 2.2 6 16 M28x1.5
CLR-1850-125-SCD 1 Series 90° ccw 490 2.2 6 16 M28x1.5
CLR-1850-105-SCD 1 Series zero° 490 2.2 6 16 M28x1.5
