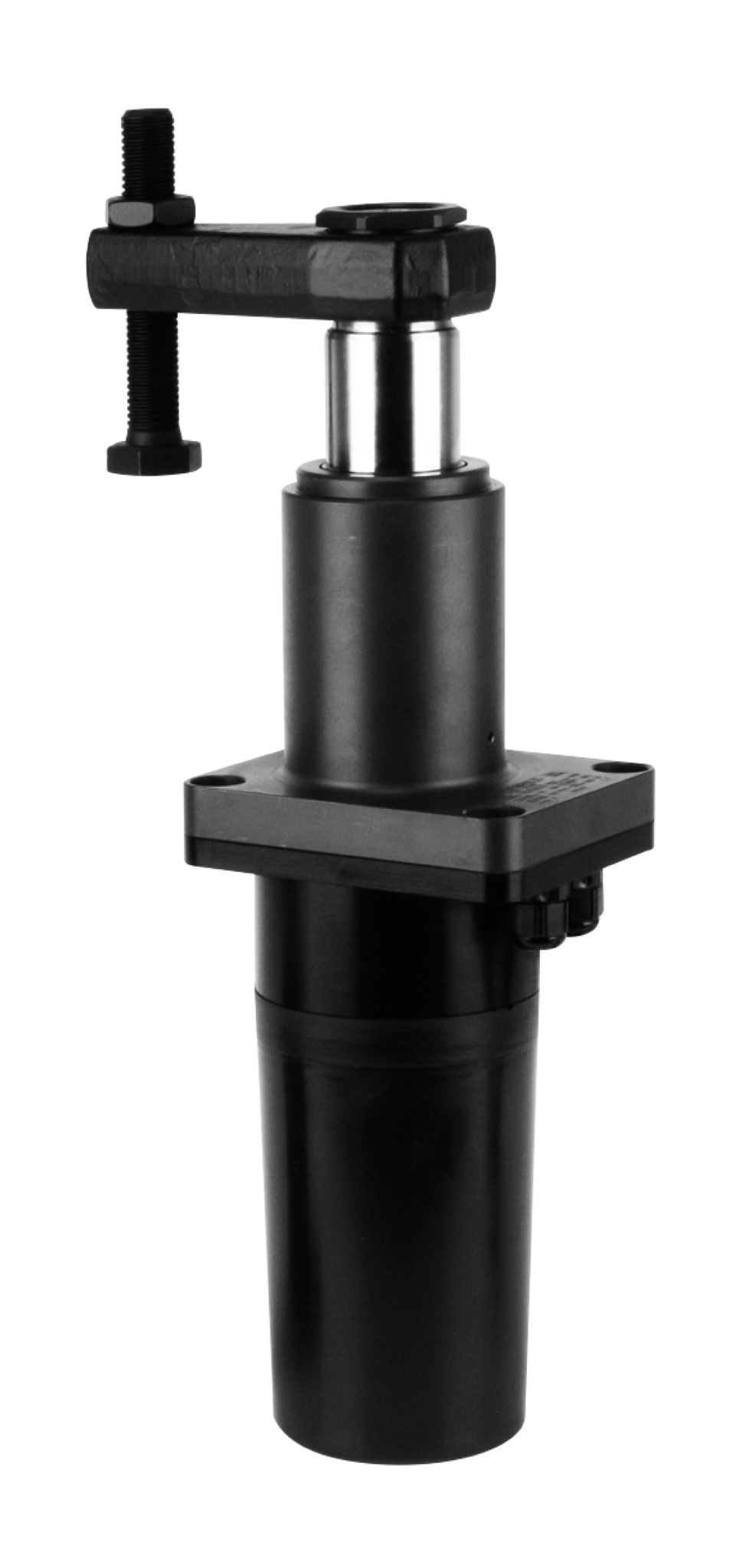

ROEMHELD Electric Swing Clamps

ROEMHELD Power Workholding

Save to My Project

What is this?

Product Information

The electric swing clamp is driven by a wear-resistant brushless DC motor. The motor speed is transformed by means of a gear and a threaded spindle into the swing and stroke movement of the piston rod. During the 180° swing of the clamping, an axial stroke of only 3 mm is required. If the clamping arm collides during the swing motion with a workpiece, the mechanism is protected against overload. The direct current motor is automatically and immediately switched off. When unclamping, the clamping arm always swings back to the off-position.

BENEFITS

• High clamping force

• Adjustable clamping force

• Clamping force monitoring

• FAILSAFE - High operating safety by self-locking spindle drive

• Mechanical re-clamping by Belleville springs

• Swing angle up to 180° available

• Overload protection device in the case of collisions with the clamping arm

• Electric position monitoring and extensive self-monitoring with diagnostic options

• Clamping stroke control possible

• Low voltage 24 VDC

• Maintenance free (500,000 cycles).

• Code class IP 67

Contact Customer Service
Contact Customer Service

Browse our Selection of ROEMHELD Electric Swing Clamps

ROEMHELD Electric Swing Clamps, B1.8310
