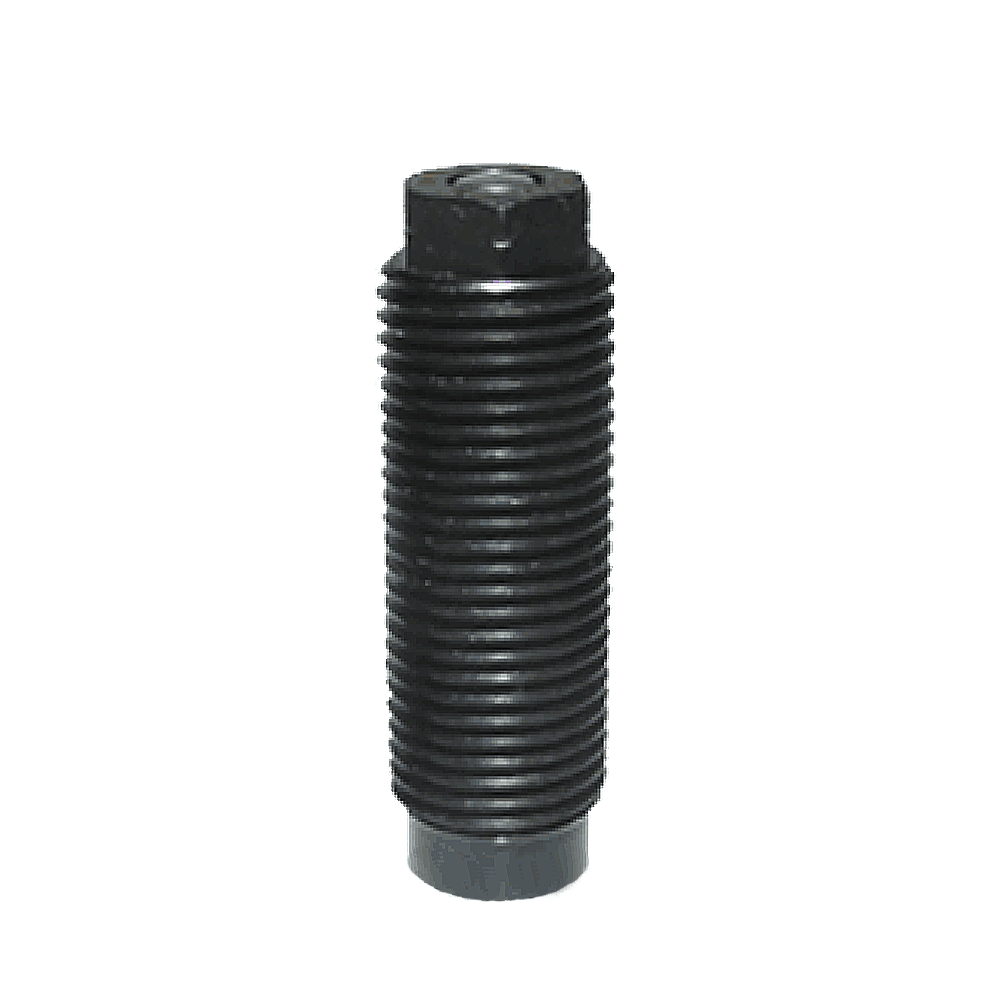

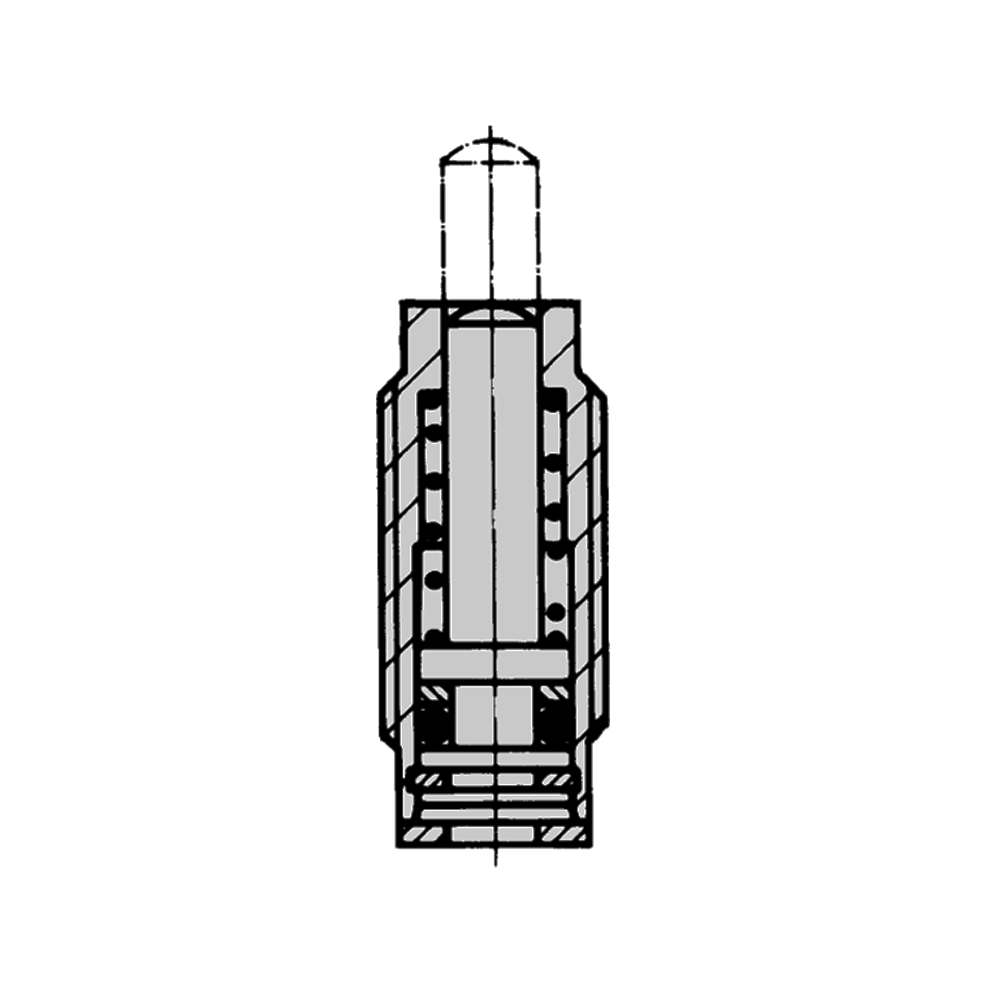

ROEMHELD Threaded-Body Cylinders – Mini, B1.458

ROEMHELD Power Workholding

Standard Version (Inch)
QUANTITY PART NO. MAXIMUM
CLAMPING
FORCE
(lbs)
MAXIMUM
CLAMPING
FORCE
(kN)
BODY
THREAD
VERSION STROKE
(mm)
OVERALL
HEIGHT
(mm)
PISTON
ROD
DIA
(mm)
PISTON ROD
EXTENSION
WHEN RETRACTED
(mm)
CLR-801-TB 560 2.5 1/2-20 Short Stroke 5 28 5 None
CLR-802-TB 560 2.5 1/2-20 Long Stroke 10 41 5 None
Standard Version (Metric)
QUANTITY PART NO. MAXIMUM
CLAMPING
FORCE
(lbs)
MAXIMUM
CLAMPING
FORCE
(kN)
BODY
THREAD
VERSION STROKE
(mm)
OVERALL
HEIGHT
(mm)
PISTON
ROD
DIA
(mm)
PISTON ROD
EXTENSION
WHEN RETRACTED
(mm)
CLR-1458-001-TB 560 2.5 M12x1.5 Short Stroke 5 28 5 None
CLR-1458-002-TB 560 2.5 M12x1.5 Long Stroke 10 41 5 None

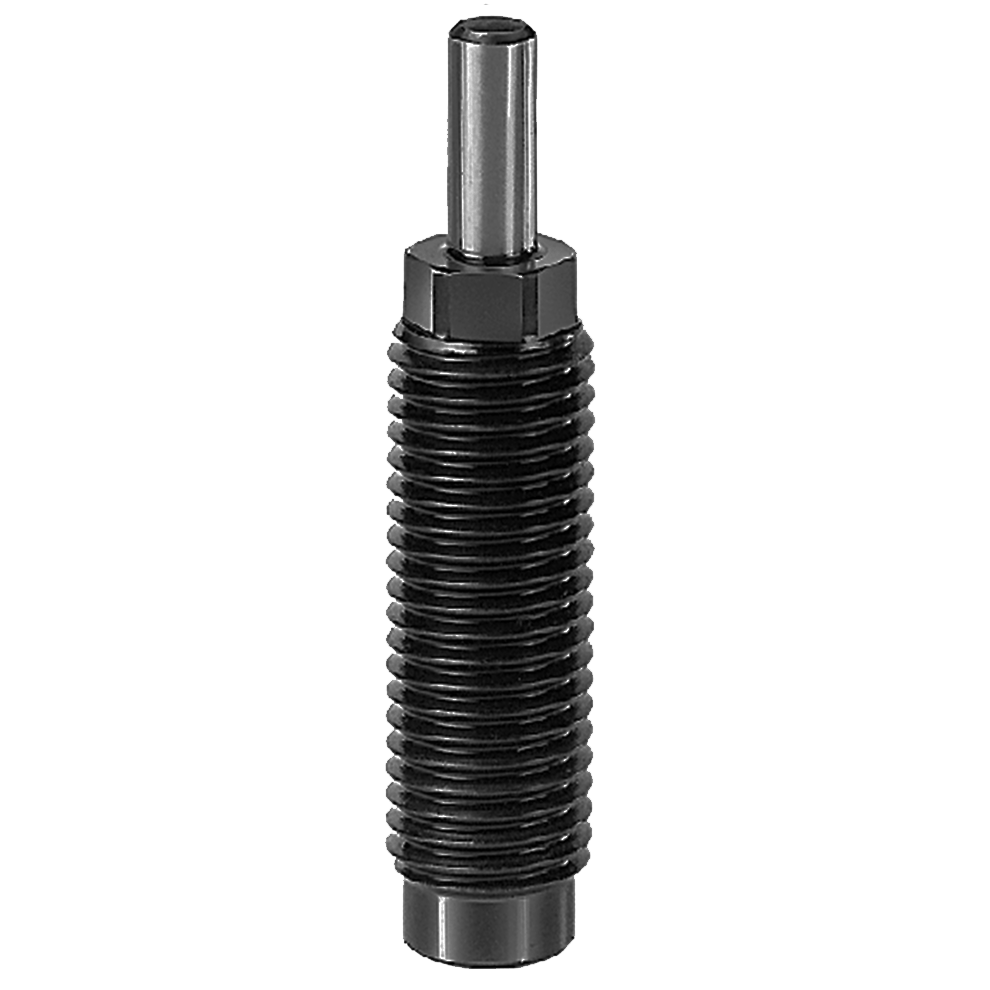

Version with Extended Piston Rod (Metric)
QUANTITY PART NO. MAXIMUM
CLAMPING
FORCE
(lbs)
MAXIMUM
CLAMPING
FORCE
(kN)
BODY
THREAD
VERSION STROKE
(mm)
OVERALL
HEIGHT
(mm)
PISTON
ROD
DIA
(mm)
PISTON ROD
EXTENSION
WHEN RETRACTED
(mm)
CLR-1458-011-TB 560 2.5 M12x1.5 Short Stroke 5 28 5 13
CLR-1458-012-TB 560 2.5 M12x1.5 Long Stroke 10 41 5 13
