ROEMHELD Power Workholding
Product Information
Application Information
Material Chart

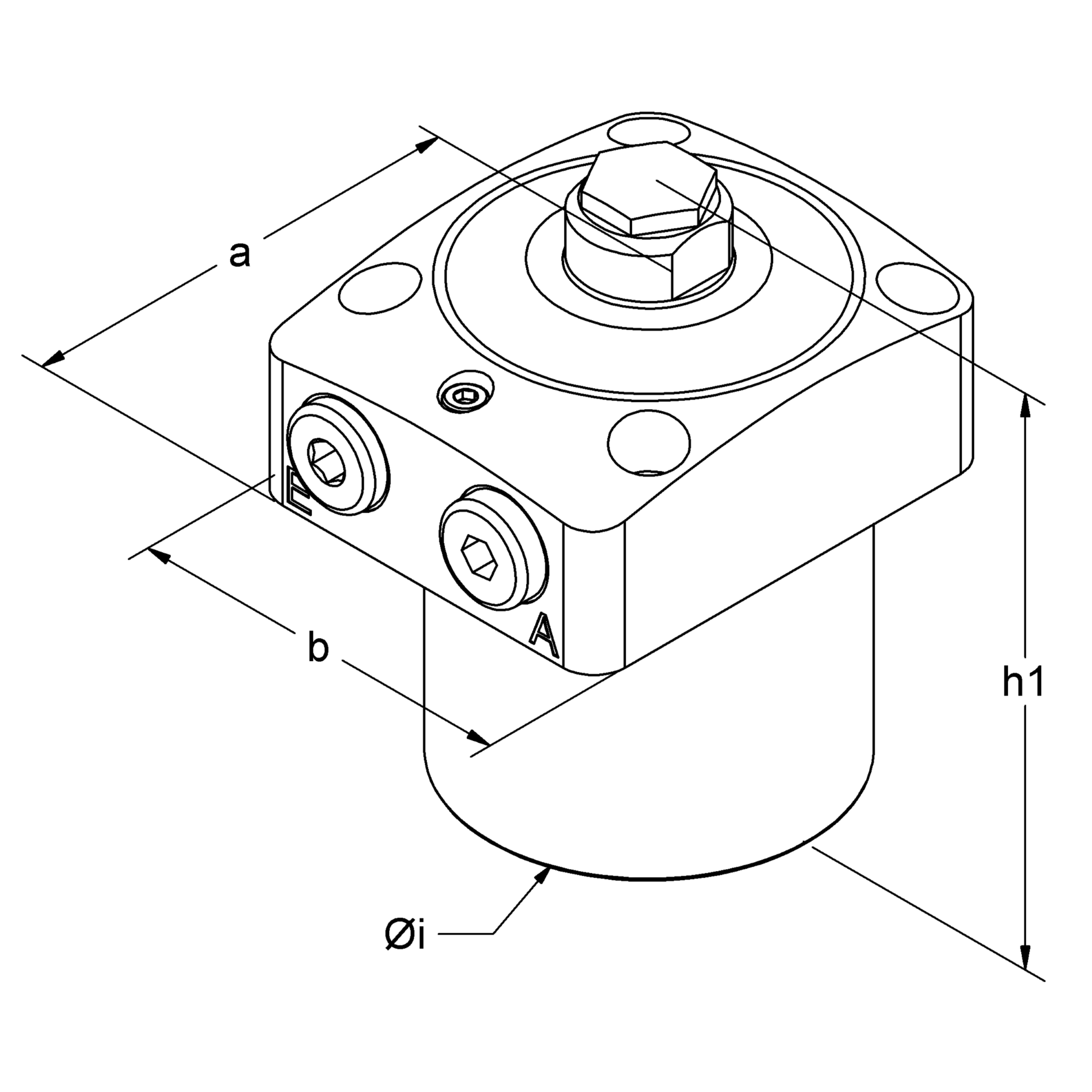

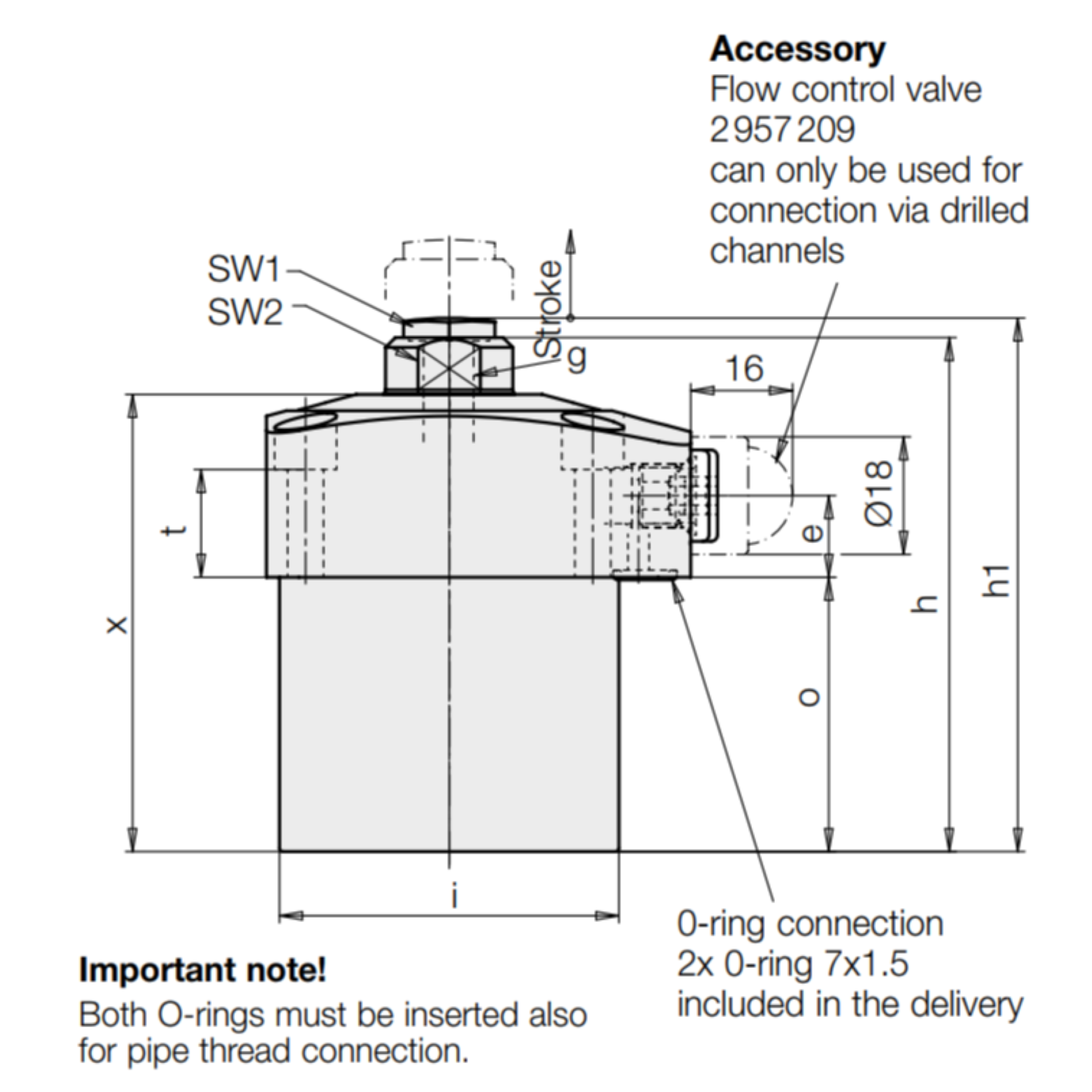

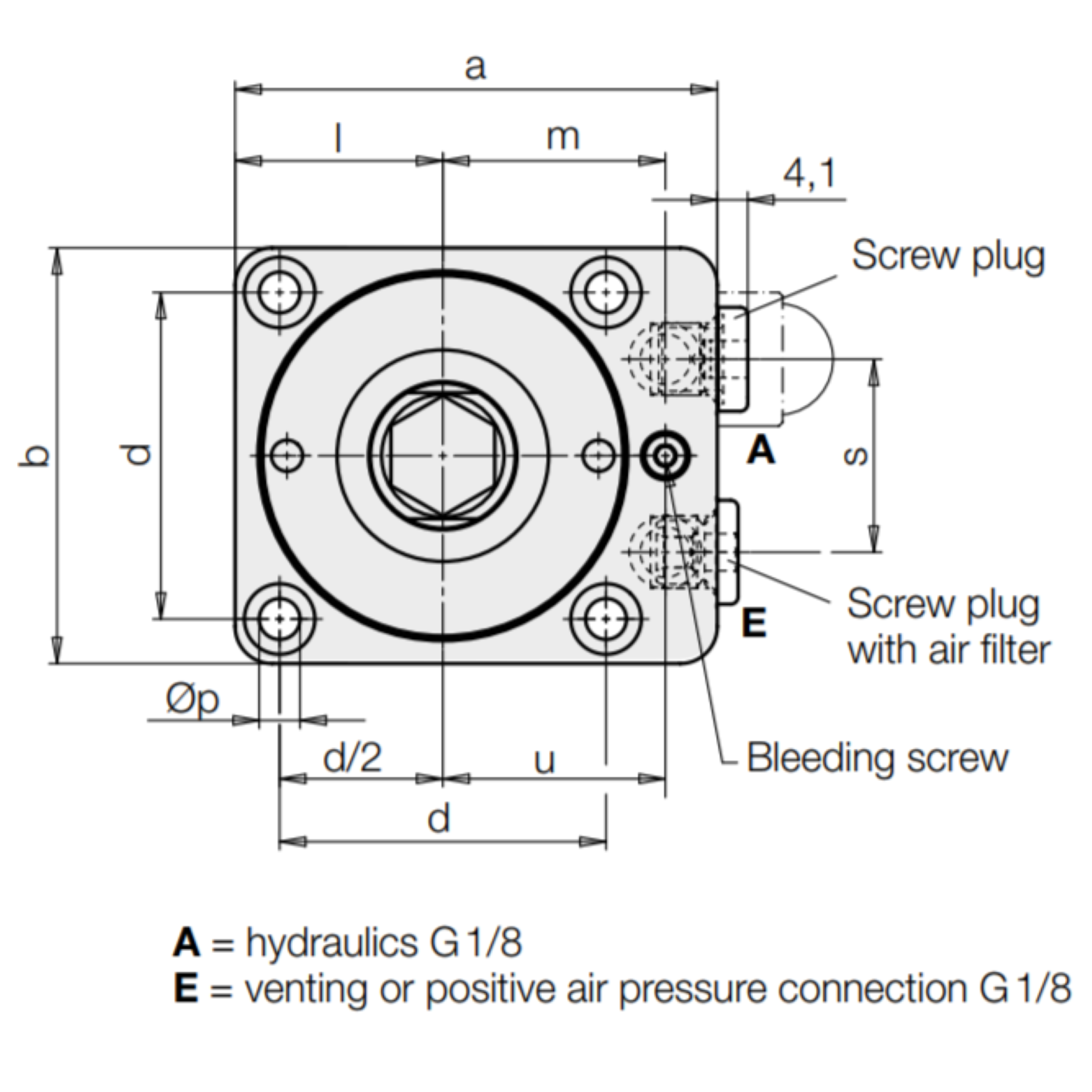

"single acting, with metallic wiper edge plunger Ø 22 mm, stroke 14 mm max. load force 25 kN plunger contact force min./max.: 4/12 N functioning: spring force max. 70 bar, as per data sheet B1.9474"
