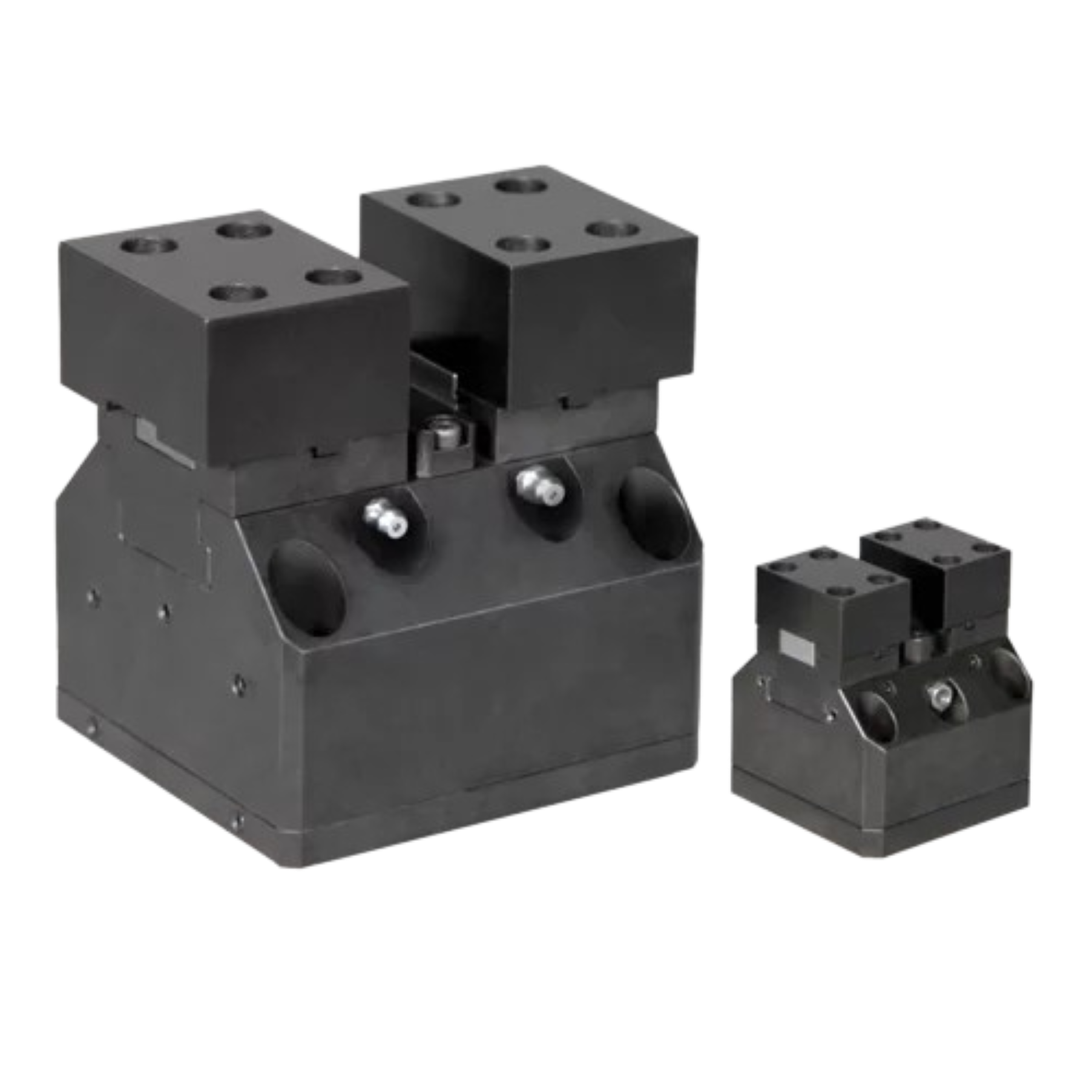

ROEMHELD PCC Concentric Hydraulic Vise, H4400

ROEMHELD Precision Vises

Product Information

The housings of the concentric PCC vises are square in design, which allows for the installation of a large-diameter clamping piston. This design provides exceptionally high clamping force in the pneumatic version. The piston force is transmitted without backlash to both base jaws, moving them synchronously and concentrically. All concentric vises include an internal flow-rate limiter.

Here’s a few additional things you need to know about the PCC

It’s compact & powerful – It’s low profile and wide base results in ultimate rigidity & clamping force up to 4000 lbs.

It’s extremely precise – Confidently position parts to center with ±5 microns repeatability.

It’s very accessible – With its high clamping point and sloped base you get great access to all 5 sides and excellent chip flow.

It’s ideal for automation – With features like ID/OD clamping, automatic lubrication, part and position sensing and quick-change jaws, giving you a worry-free process.

Application Information

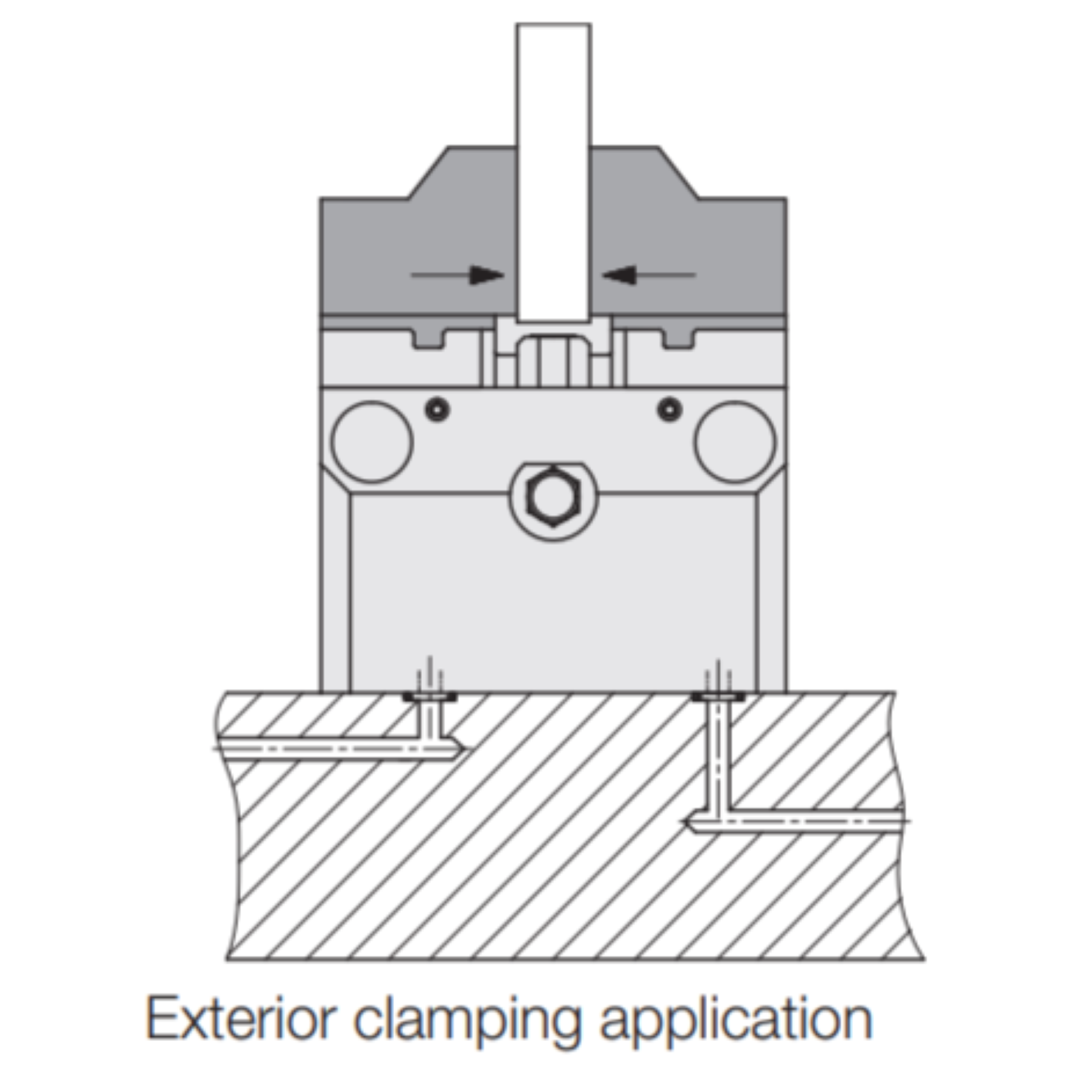

These pneumatic or hydraulic operated concentric vises position and clamp workpieces with an accuracy of ±0.005 mm. They are ideal for high-volume production of precision parts in both single- and multi-clamp fixtures. The double-acting cylinder allows for both internal and external clamping of workpieces.

Advantages

Compact design saves space
High rigidity
Hardened surfaces for long service life
Repeatable clamping accuracy of ±0.005 mm
Suitable for both I.D. and O.D. clamping
Standard manifold and pipe-thread connections

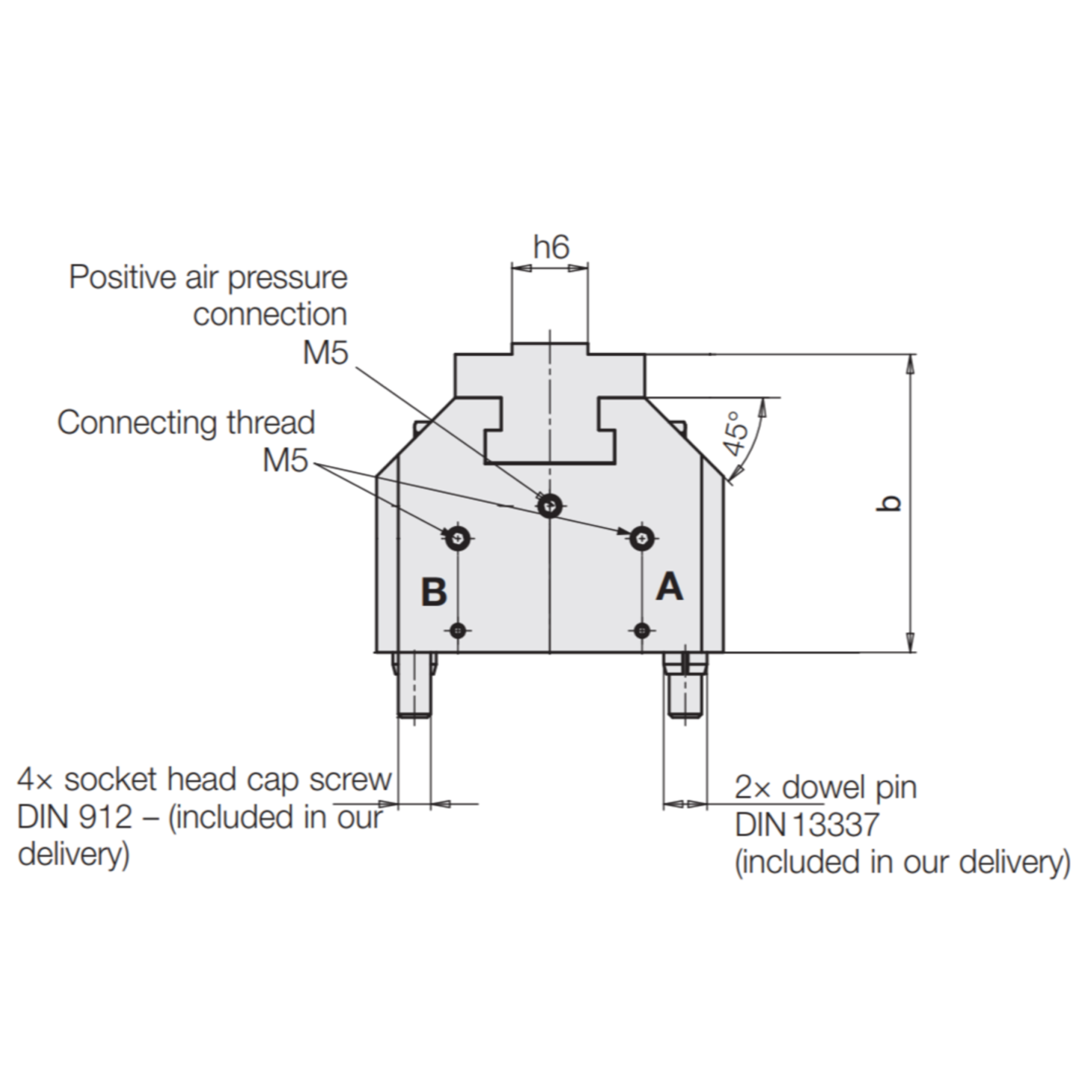

Standard connection for positive air-pressure protection

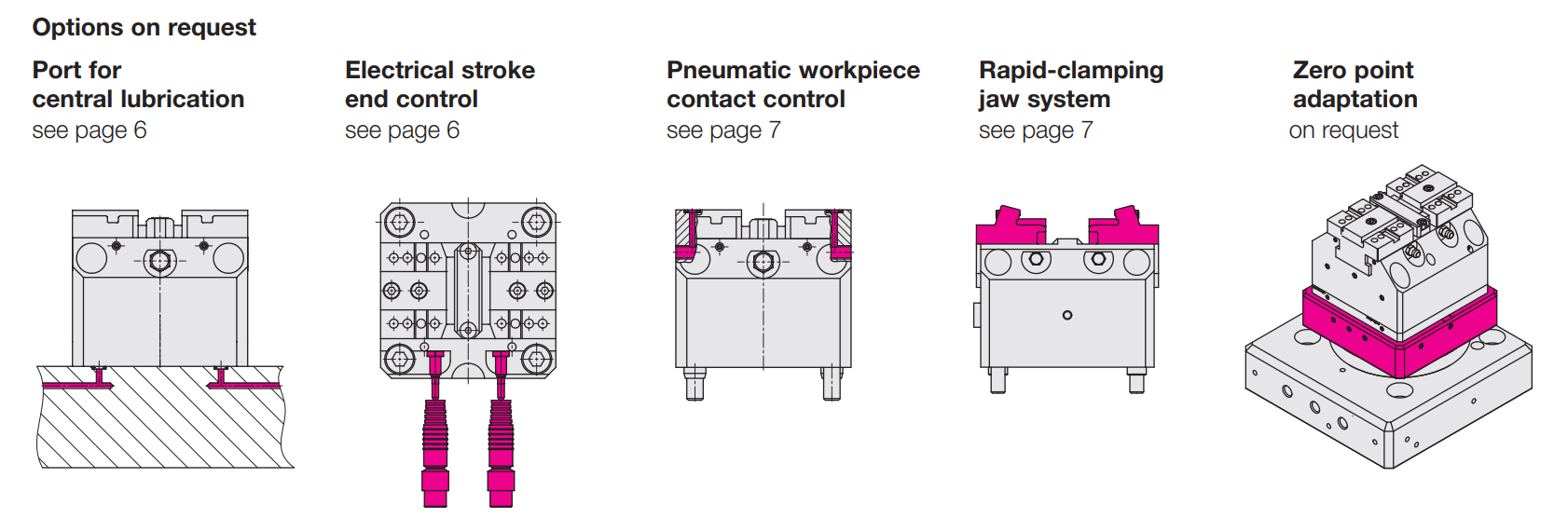

Optional Variants

Material

MATERIAL	HEAT TREAT	FINISH
Steel	-	Black Oxide

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

ROEMHELD PCC Concentric Hydraulic Vise, H4400

Hydraulic - Double Acting

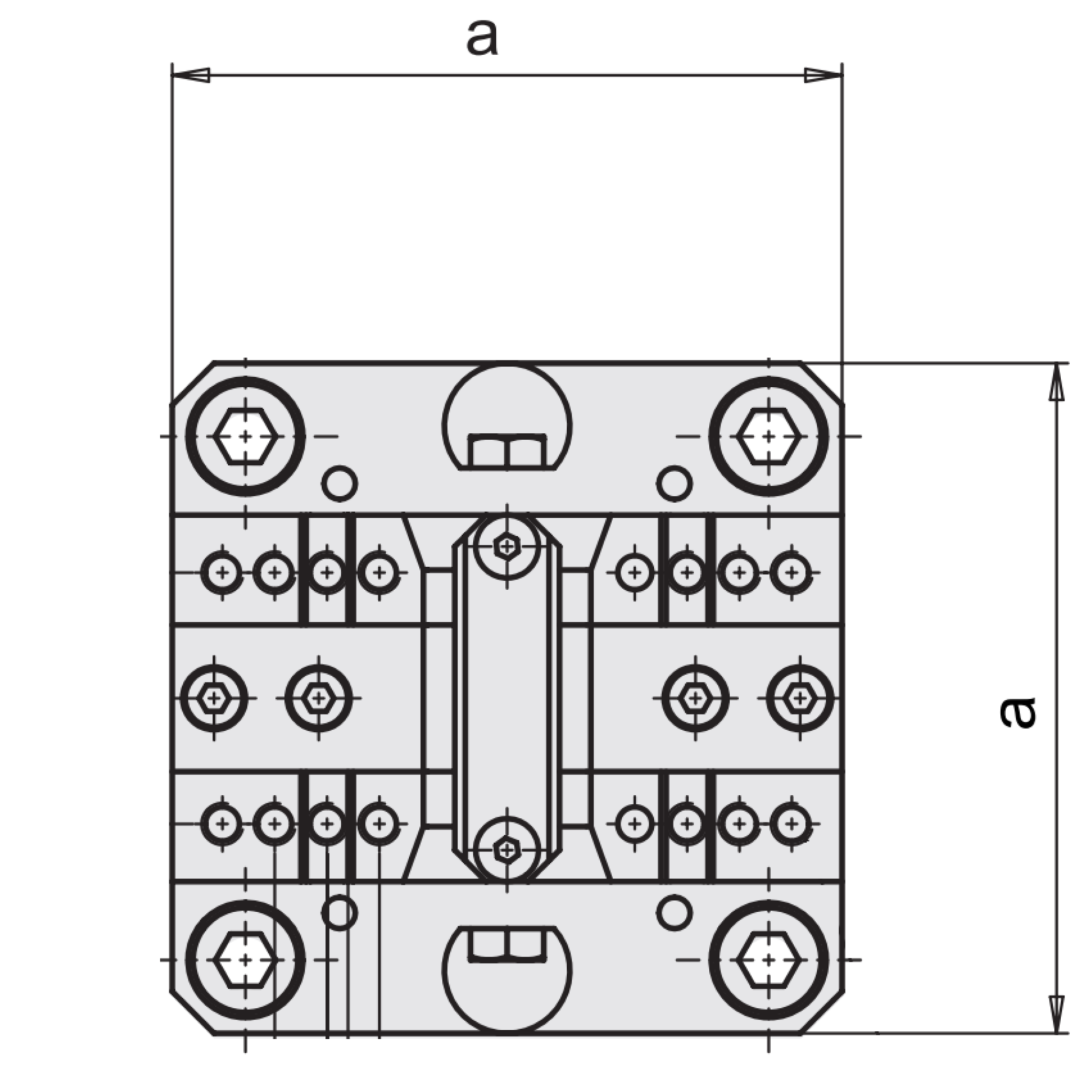

Part Number	Size (mm)	Clamping Force @Max. Pressure (lbs)	Clamping Force @Max. Pressure (kN)	Max. Pressure (PSI/bar)	Stroke per jaw (mm)	a (mm)	b (mm)	Weight (kg)	Full Technical Details
CLR-4ZBA-AAA-000-00	64	1,079	4.8	943 / 65	2.5	64	55	1.4	See Data Sheet
CLR-4ZBA-AAB-000-00	100	4,541	20.2	1305 / 90	3	100	74	5	See Data Sheet
CLR-4ZBA-BAD-000-00	160	10,566	47	1160 / 80	4	160	87	16	See Data Sheet
