Product Information

Ready to Use: Fast Clamping Plates

Economical entry-level solution from STARK, offering the highest quality on the market.

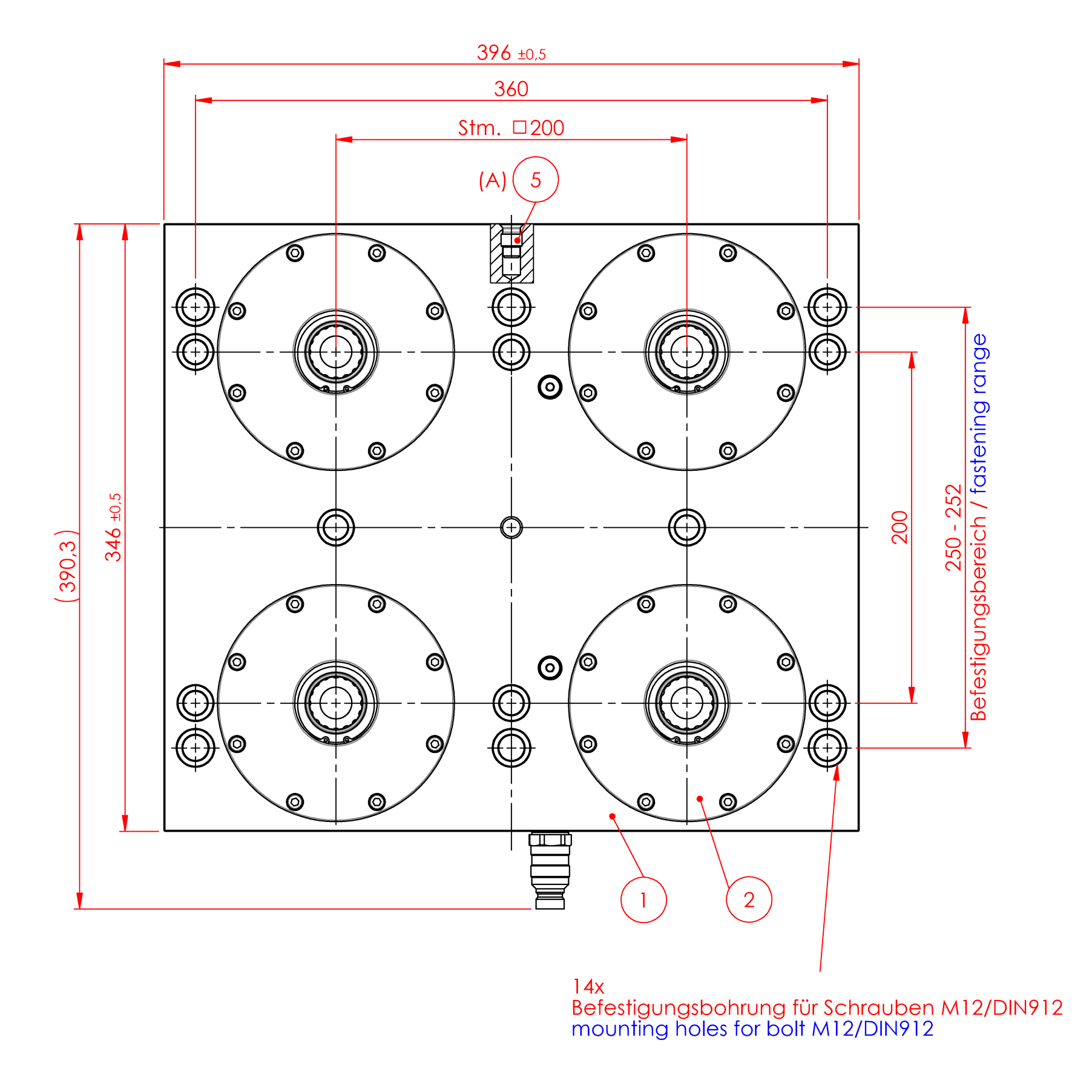

• Fast closing plate made of steel ground on both sides with fixing holes for different groove distances (63, 100 and 125 mm)

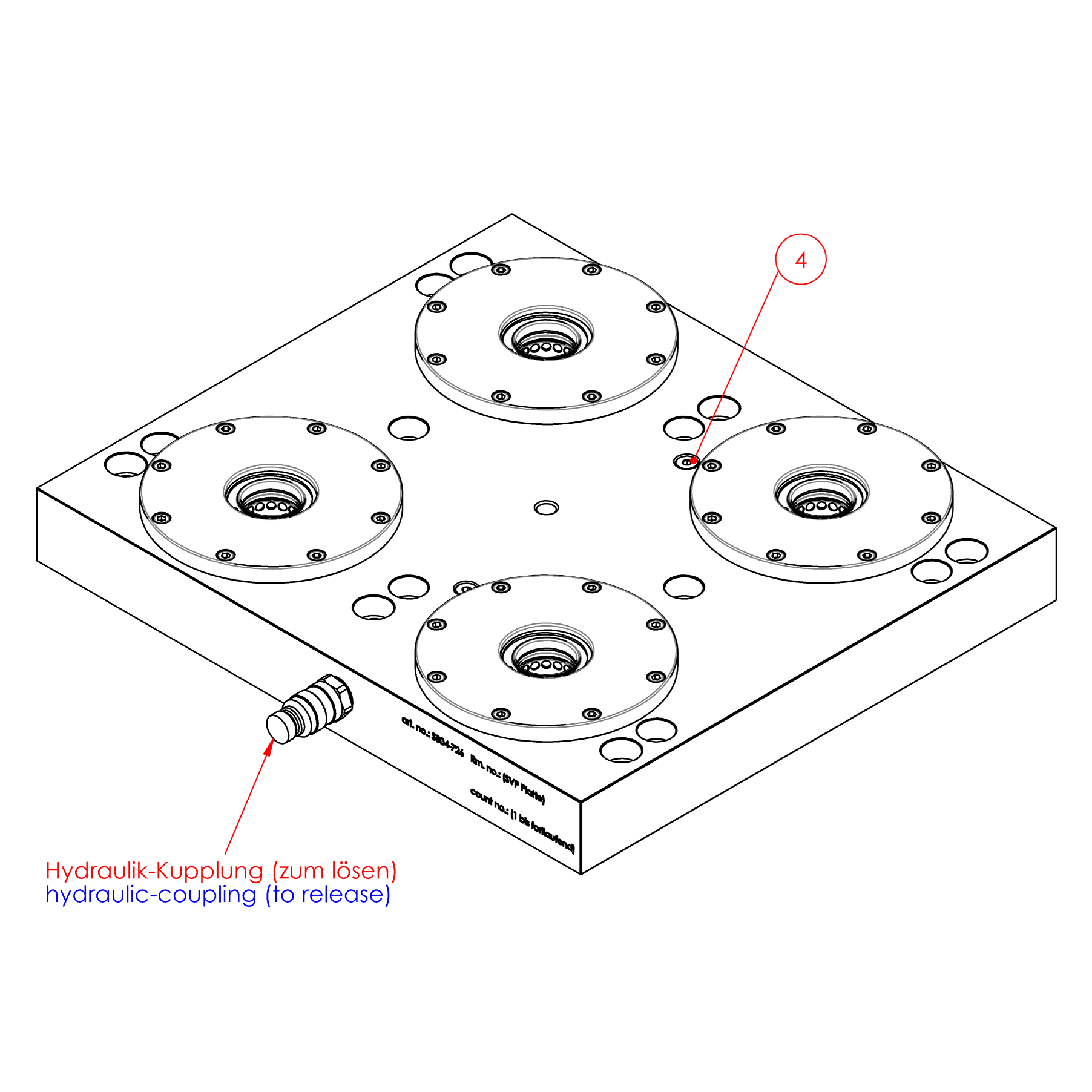

• Zero point clamping system is clamped mechanically with spring force and released hydraulically/pneumatically

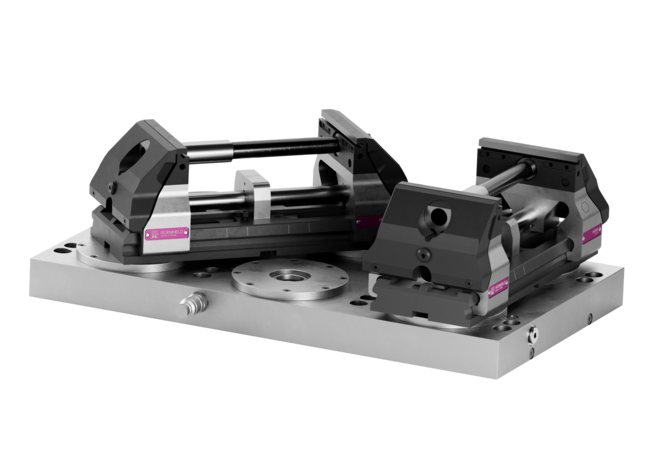

• Application on 3/4/5-axis machines for all common machining operations such as milling, grinding, EDM

Need Something Custom?

From design to installation STARK can fully customize any application to suit your needs whether it be small or large custom Turn-Key Solutions. Contact engineering for details.

Application Information

Videos

Stark SPEEDY Classic Zero Point Clamps by Roemheld

Automatic fixturing alignment, Zero Point Clamp, Stark Speedy Classic, provides wear-proof insertion and pre-centering due to its retractable nipple. Operator only needs to set down or remove the pallet. Using the zero point clamping system SPEEDY classic you will increase your production times to a maximum. Adjustment and checking processes are no longer necessary at all, this means more time for your production. SPEEDY classic has a common interface. As a result all equipment can be used on all machines. Learn more at http://roemheld-usa.com/data-sheet-ca...

Roemheld Zero Point Mounting Systems, Chip to Chip in 60 seconds

Keep your spindle turning using Stark zero point quick change systems. You can change out fixtures in a matter of seconds with the assurance of having the highest accuracy and repeatability in the industry. This comprehensive zero-point mounting system utilizes clamping components and insertion nipples, which provide an immediate zero point orientation, allowing faster and more accurate fixture set up and changes to increase machine capacity. Change-over can be accomplished in 20 sec. Learn more at https://roemheld-usa.com/data-sheet-c...

Documents

Zero Point Clamping Systems

Ready to Use: Fast Clamping Plates Economical entry-level solution from STARK, offering the highest quality on the market.

ROEMHELD STARK Classic 2 4-fold Subplate

Material

ITEM	MATERIAL	HEAT TREAT	FINISH
Plate	Steel 1.1730	-	-
Clamping Elements	High Alloy Tool Steel	Hardened support surface	-

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

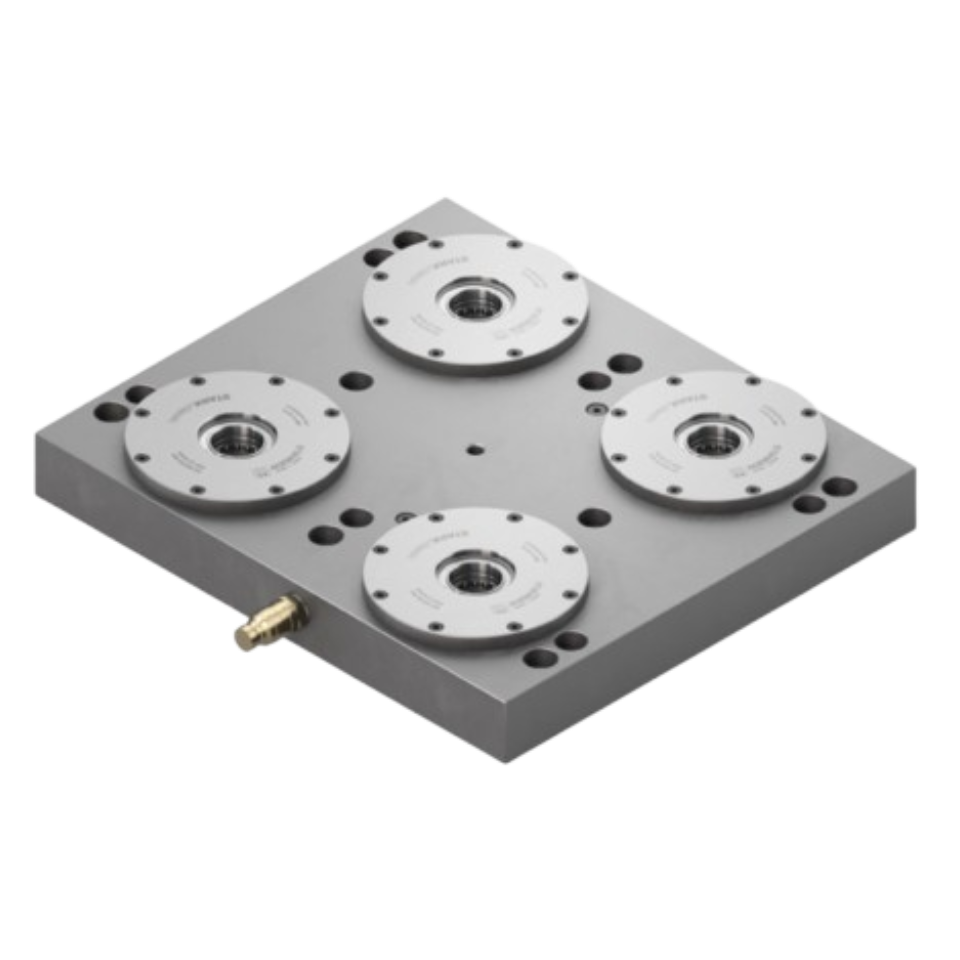

ROEMHELD STARK classic 2 4-fold subplate

STARK.classic 2 Subplates

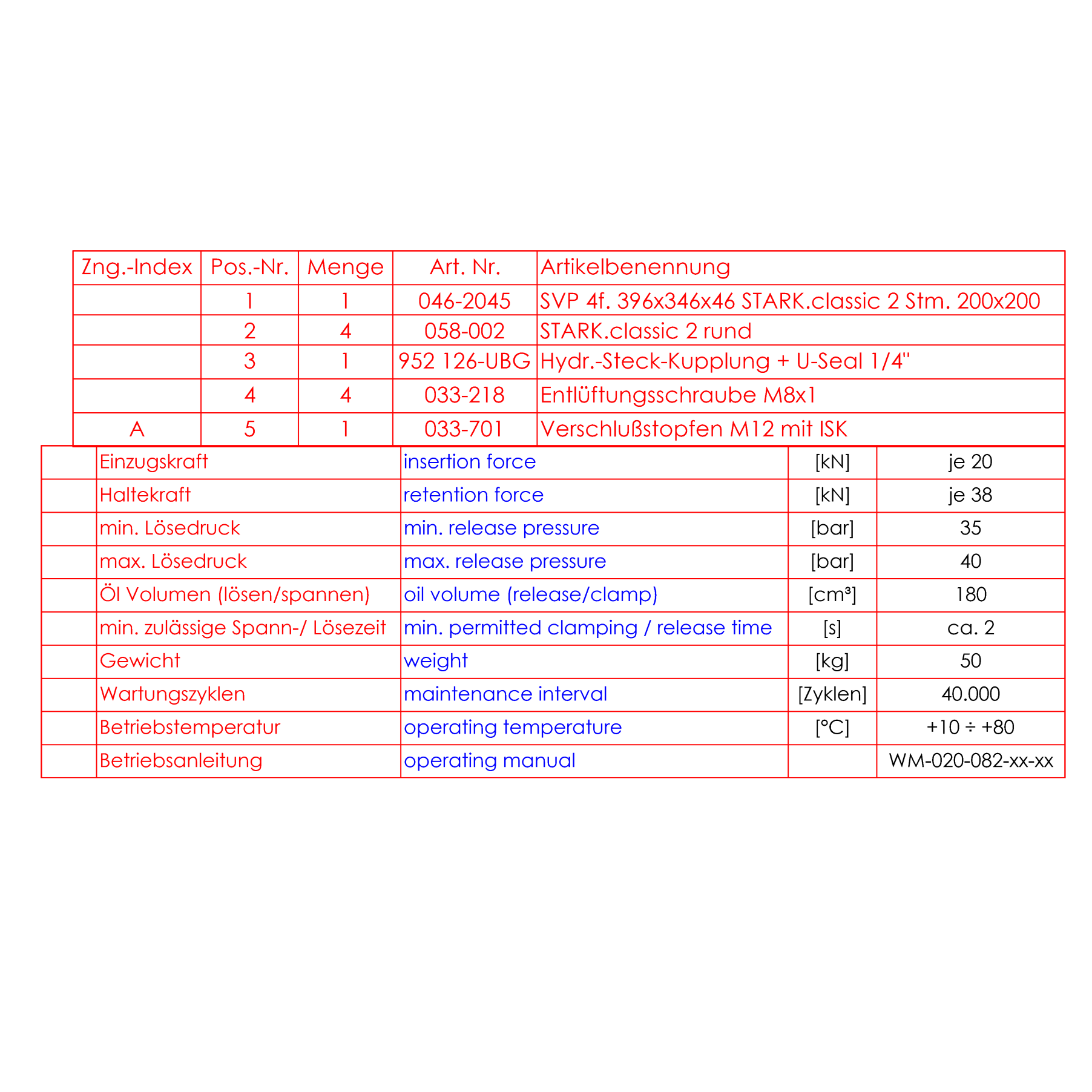

QUANTITY	PART NO.	Description	Length (mm)	Width (mm)	Overall Height (mm)	Plate Thickness (mm)	Spacing (mm)	Pull-in/Locking (Insertion) Force (kN)	Retention (Insertion) Force (kN)	Release Pressure (bar)	Repeatability (mm)	Weight (kg)

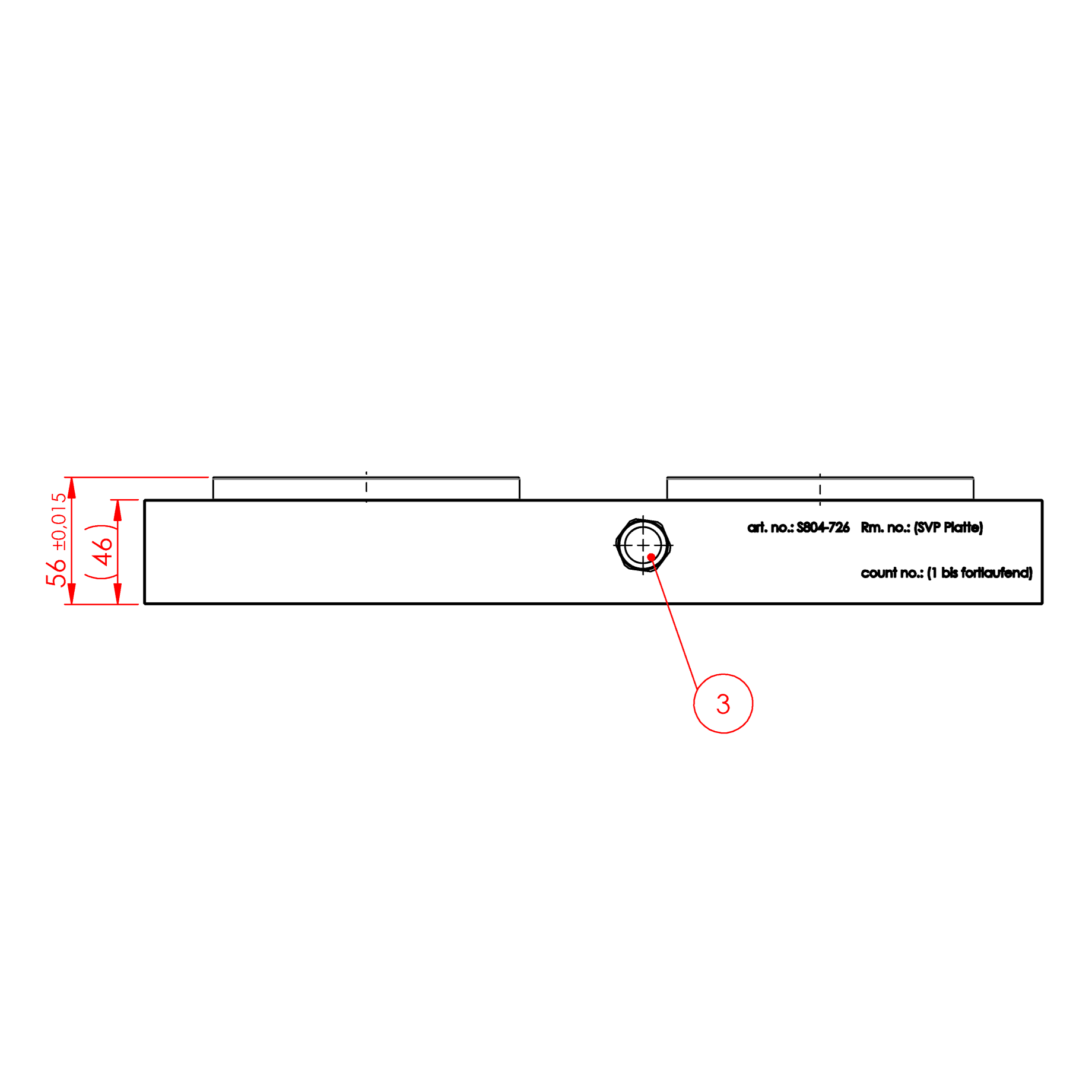

	CLR-S804-726	4-fold Fast Clamping Plate, hydraulic release	346	346	56	46	200	120	80	35	≤0.005	50
	CLR-S804-726-KIT	4-fold Fast Clamping Plate, hydraulic release, kit includes: (4x) zero point pull stud (NP) (1x) air/hyd. Pressure booster (1x) hydraulic hose	346	346	56	46	200	120	80	35	≤0.005	60

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product
Quick Ship Available

Check Price & Availability

Legend:

Get More Information
Download CAD Model
New Product
E Exclusive Product

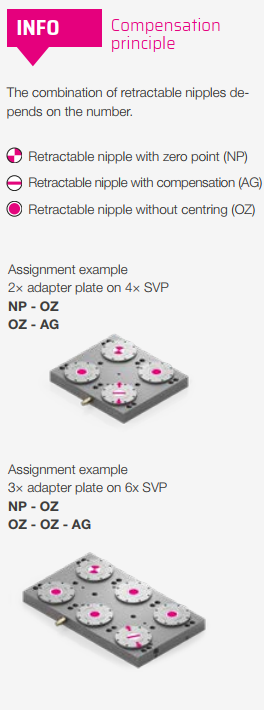

STARK.classic 2 Pull Studs (Nipples)

Part No.	Description	Size	Full Technical Details
CLR-S804-470	Zero point pull stud (NP)	For classic 2 zero-point systems	See Data Sheet
CLR-S804-471	Diamond pull stud (AG)	For classic 2 zero-point systems	See Data Sheet
CLR-S804-472	Floating pull stud (OZ)	For classic 2 zero-point systems	See Data Sheet
