ROEMHELD STARK Basic M 6-fold Subplate

ROEMHELD Zero-Point

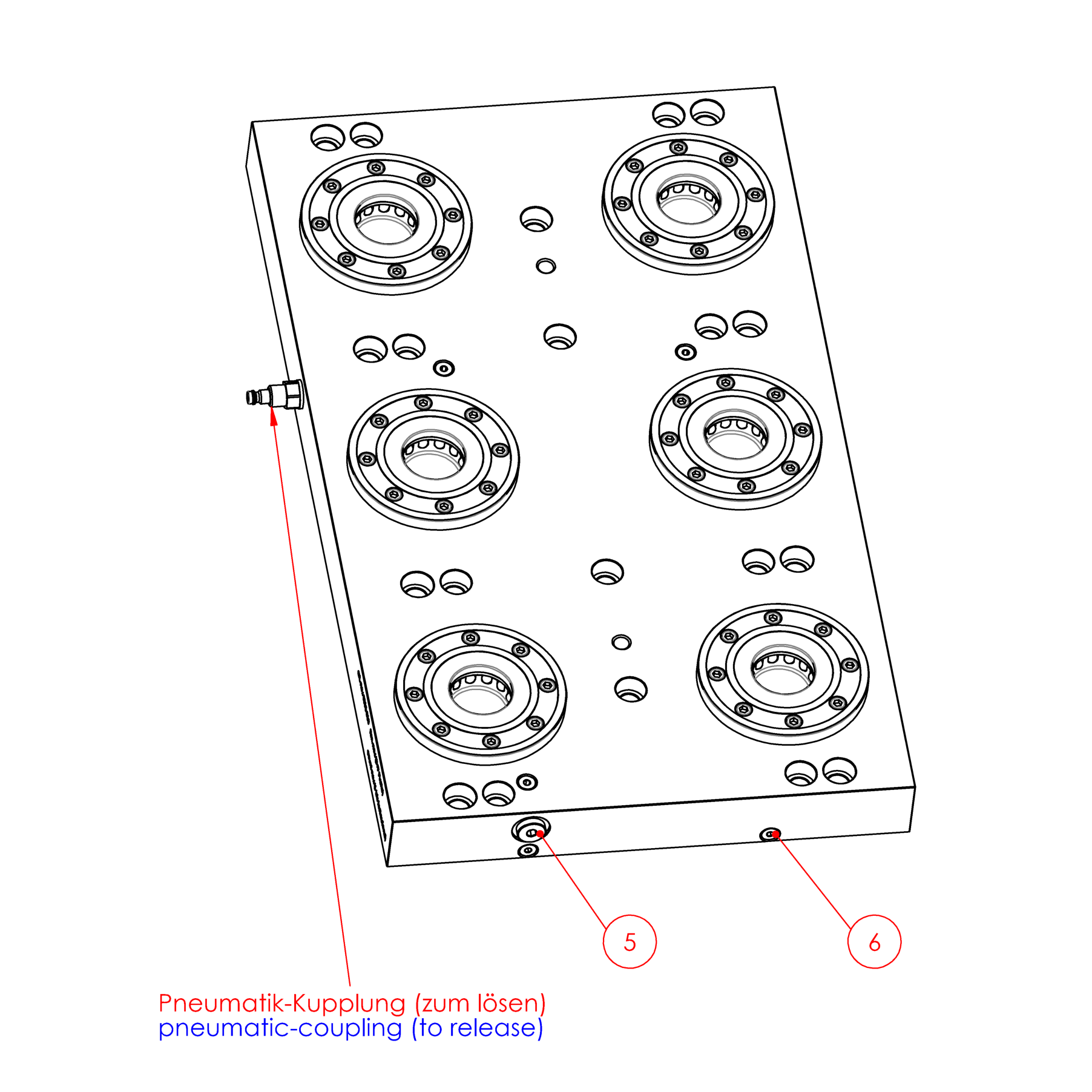

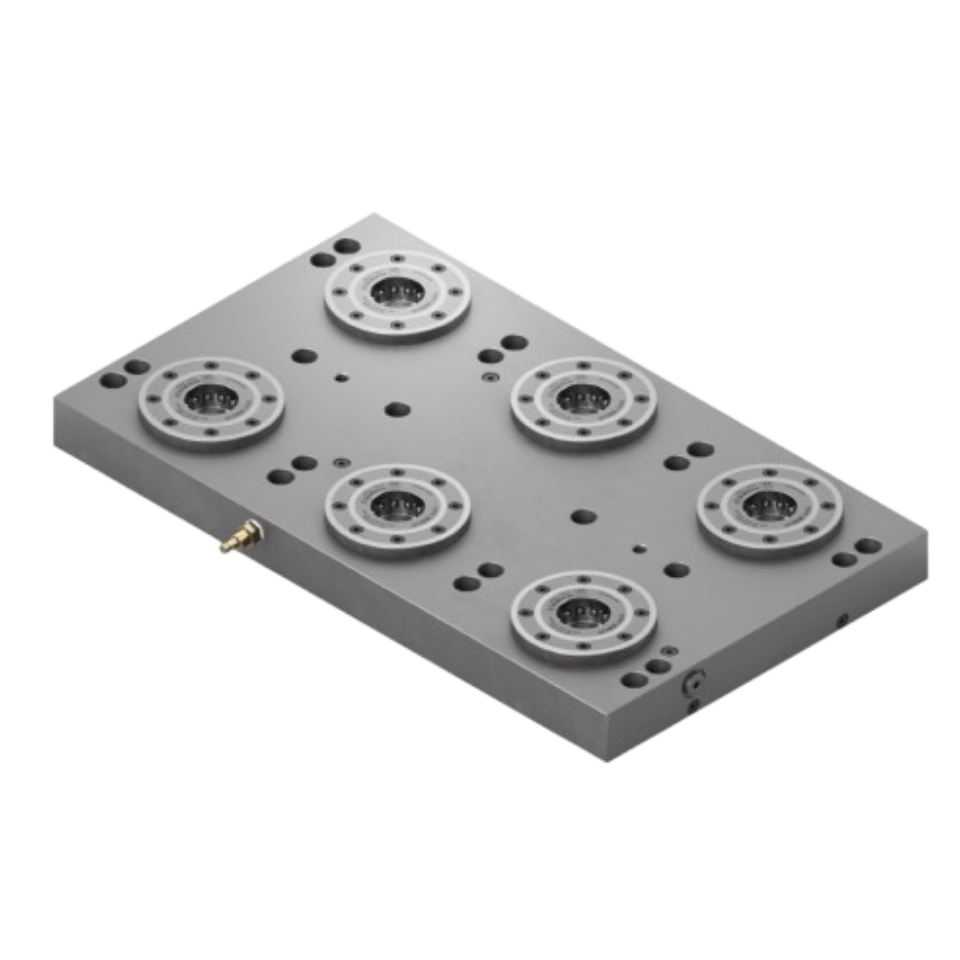

STARK.basic M 6-fold Subplate - Spring Clamp, Pneumatic Release
QUANTITY PART NO. Description Length
(mm)
Width
(mm)
Overall
Height
(mm)
Plate
Thickness
(mm)
Clamp
Spacing
(mm)
Pull-in/Locking
(Insertion) Force
(kN)
Retention
(Insertion) Force
(kN)
Release
Pressure
(bar)
Repeatability
(mm)
Weight
(kg)
CLR-S805-308 6-fold Fast Clamping Plate,
pnuematic release
596 346 56 46 200 54 54 4 ≤0.01 74
CLR-S805-308-KIT 6-fold Fast Clamping Plate,
pnuematic release, kit includes:

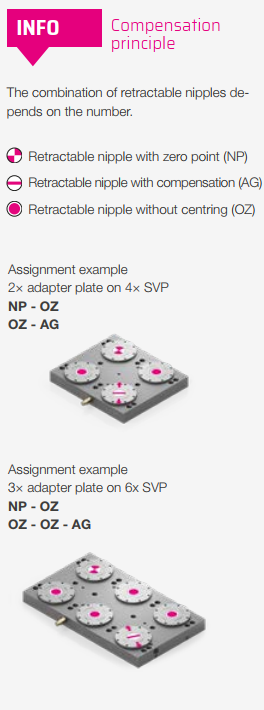

1x zero point pull stud (NP) 1x diamond pull stud (AG) 4x floating pull stud (OZ)
596 346 56 46 200 54 54 4 ≤0.01 75
STARK.basic M Pull Studs (Nipples)
QUANTITY Part No. Description Size Full Technical
Details
CLR-S8000-300 Zero point pull stud (NP) For basic M zero-point systems See Data Sheet
CLR-S8000-301 Diamond pull stud (AG) For basic M zero-point systems See Data Sheet
CLR-S8000-302 Floating pull stud (OZ) For basic M zero-point systems See Data Sheet
