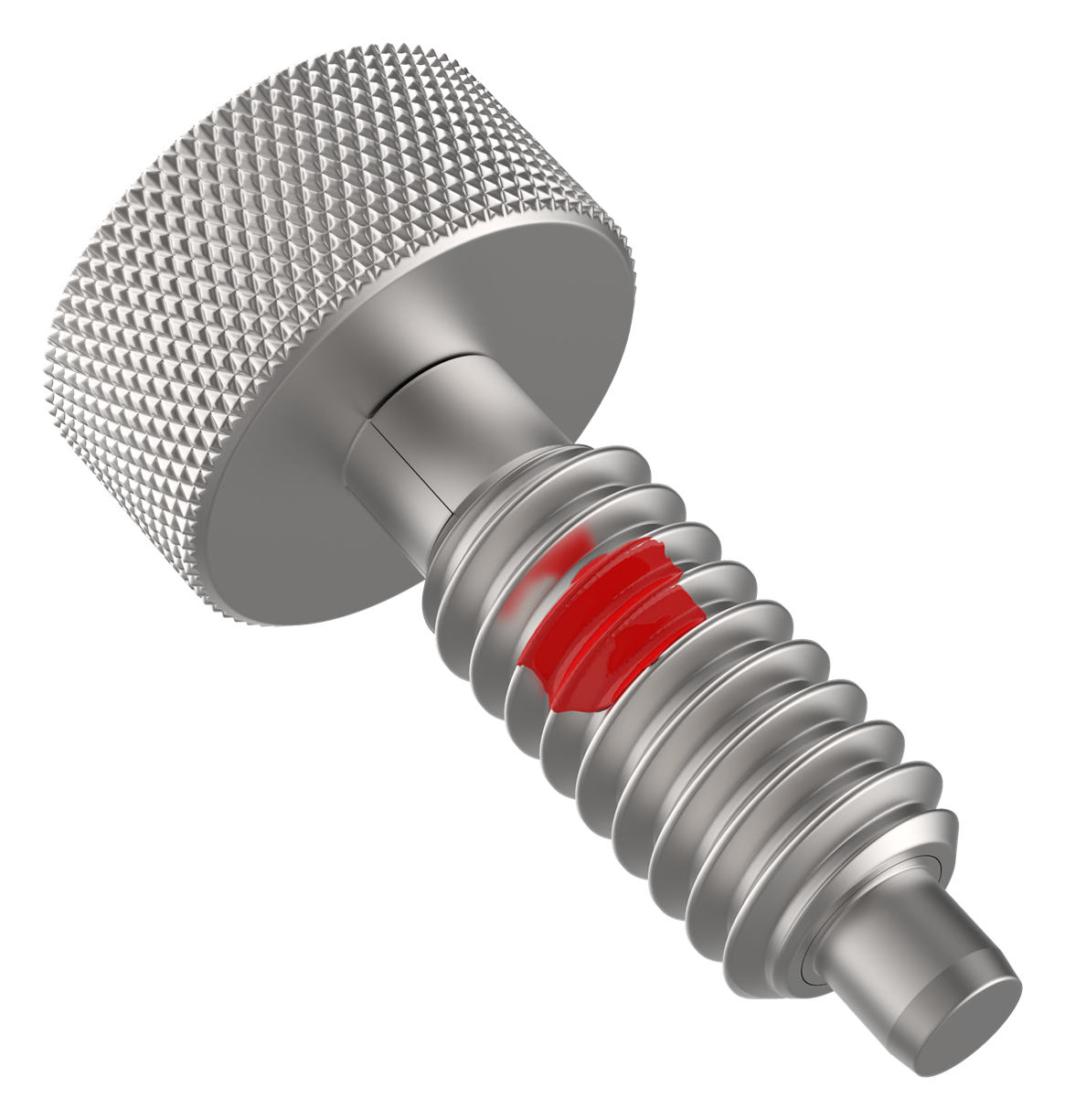

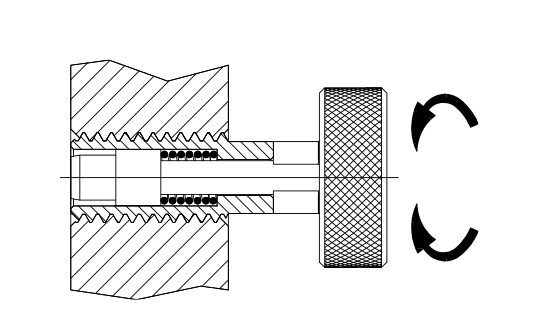

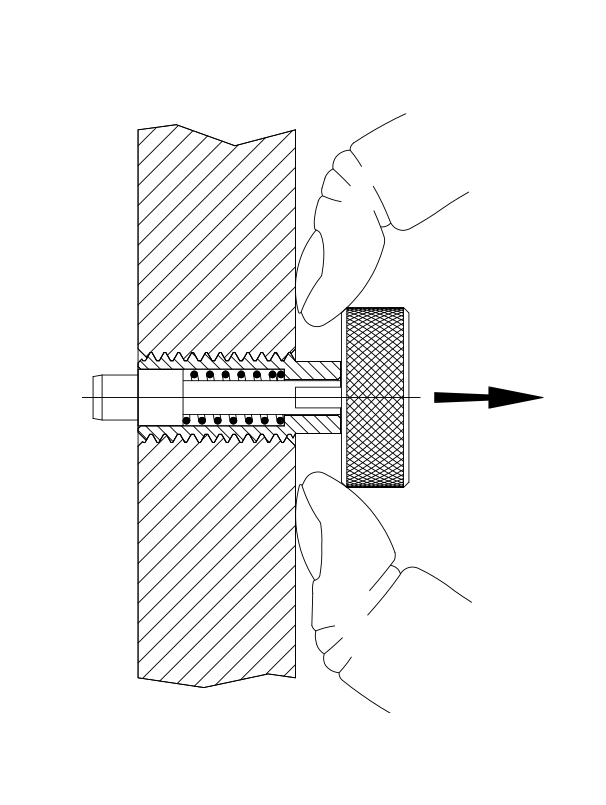

Hand-Retractable Plungers – Knurled Head (Locking Type)

Spring-Loaded Devices

Steel (Inch)
QUANTITY PART NO. A
THREAD
INITIAL
END
FORCE
(lbs)
FINAL
END
FORCE
(lbs)
B
DIA
NOMINAL
B
DIA
ACTUAL
C D E F
DIA
CL-3-HRP #10-32 1 3.5 7/64 .105 3/32 13/32 3/16 3/8
CL-4-HRP 1/4-20 1 5 1/8 .125 1/8 1/2 1/4 1/2
CL-5-HRP 5/16-18 1.5 6 5/32 .156 3/16 5/8 9/32 5/8
CL-6-HRP 3/8-16 1.5 8 3/16 .187 7/32 3/4 5/16 3/4
CL-8-HRP 1/2-13 2.5 10 1/4 .250 1/4 7/8 3/8 1
CL-10-HRP 5/8-11 5 10 5/16 .312 5/16 1 3/8 1-1/8
Stainless Steel (Inch)
QUANTITY PART NO. A
THREAD
INITIAL
END
FORCE
(lbs)
FINAL
END
FORCE
(lbs)
B
DIA
NOMINAL
B
DIA
ACTUAL
C D E F
DIA
CL-3-HRP-S #10-32 1 3.5 7/64 .105 3/32 13/32 3/16 3/8
CL-4-HRP-S 1/4-20 1 5 1/8 .125 1/8 1/2 1/4 1/2
CL-5-HRP-S 5/16-18 1.5 6 5/32 .156 3/16 5/8 9/32 5/8
CL-6-HRP-S 3/8-16 1.5 8 3/16 .187 7/32 3/4 5/16 3/4
CL-8-HRP-S 1/2-13 2.5 10 1/4 .250 1/4 7/8 3/8 1
CL-10-HRP-S 5/8-11 5 10 5/16 .312 5/16 1 3/8 1-1/8
Steel (Metric)
QUANTITY PART NO. A
THREAD
THREAD
PITCH
(mm)
INITIAL
END
FORCE
(N)
FINAL
END
FORCE
(N)
B
DIA
(mm)
C
(mm)
D
(mm)
E
(mm)
F
DIA
(mm)
CLM-6-HRP M6 1 4 22 3 3.2 12.5 6.5 12.5
CLM-8-HRP M8 1.25 7 27 4 4.8 16 7 16
CLM-10-HRP M10 1.5 7 36 5 5.5 19 8 19
CLM-12-HRP M12 1.75 11 44 6 6.5 22 9.5 25.5
CLM-16-HRP M16 2 22 44 8 8 25.5 9.5 28.5
Stainless Steel (Metric)
QUANTITY PART NO. A
THREAD
THREAD
PITCH
(mm)
INITIAL
END
FORCE
(N)
FINAL
END
FORCE
(N)
B
DIA
(mm)
C
(mm)
D
(mm)
E
(mm)
F
DIA
(mm)
CLM-6-HRP-S M6 1 4 22 3 3.2 12.5 6.5 12.5
CLM-8-HRP-S M8 1.25 7 27 4 4.8 16 7 16
CLM-10-HRP-S M10 1.5 7 36 5 5.5 19 8 19
CLM-12-HRP-S M12 1.75 11 44 6 6.5 22 9.5 25.5
CLM-16-HRP-S M16 2 22 44 8 8 25.5 9.5 28.5
