Threaded Tube Ends (Square)

Supports, Rests & Feet

Save to My Project

What is this?

Product Information

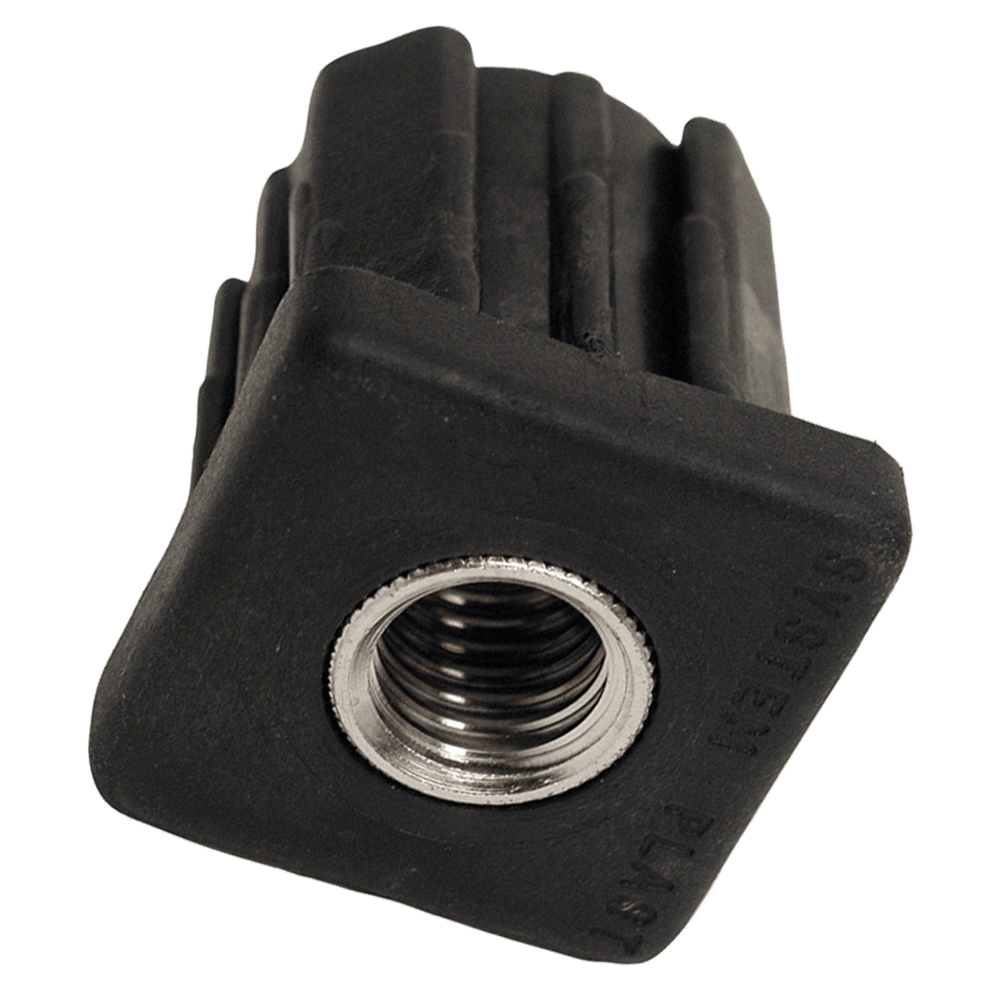

Ideal for mounting a Leveling Foot into the end of a square tube (also available for round tubing). High-strength ribbed design presses into the tube end, up to the shoulder, providing 1300 lbs load capacity. Available in 1/2-13 and 5/8-11 thread sizes, to fit 1-1/2" square tubing with .065 to .070" wall thickness. Also available in the same thread sizes to fit 1-1/2" heavy-wall square tubing with .120 to .130" heavy wall thickness.

View in Catalog Page
Contact Customer Service
Contact Customer Service

Application Information

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	DFARS	RoHS
Body	Black nylon thermoplastic	-	-	✔	✔
Threaded Insert	Brass	-	Molded in Brass	✔	✔

Click here for detailed material and finish specifications.

California residents click here for Prop 65 information.

Threaded Tube Ends (Square)

Inch

PART NO.	TUBING EXTERNAL DIA	TUBING WALL THICKNESS	A THREAD	B	C	D	E	LOAD RATING (lbs)
CL-8-TTES-112	1.50	.065 / .070	1/2-13	1.50	1.37	1.69	1.38	1300
CL-10-TTES-112	1.50	.065 / .070	5/8-11	1.50	1.37	1.69	1.38	1300
CL-8-TTES-112H	1.50	.120 / .130	1/2-13	1.50	1.25	1.69	1.38	1300
CL-10-TTES-112H	1.50	.120 / .130	5/8-11	1.50	1.25	1.69	1.38	1300
