One-Touch Quick-Acting Swing Clamps (Hex Drive)

Swing Clamps

Product Information

One-Touch Quick-Acting Swing Clamps (Hex Drive)

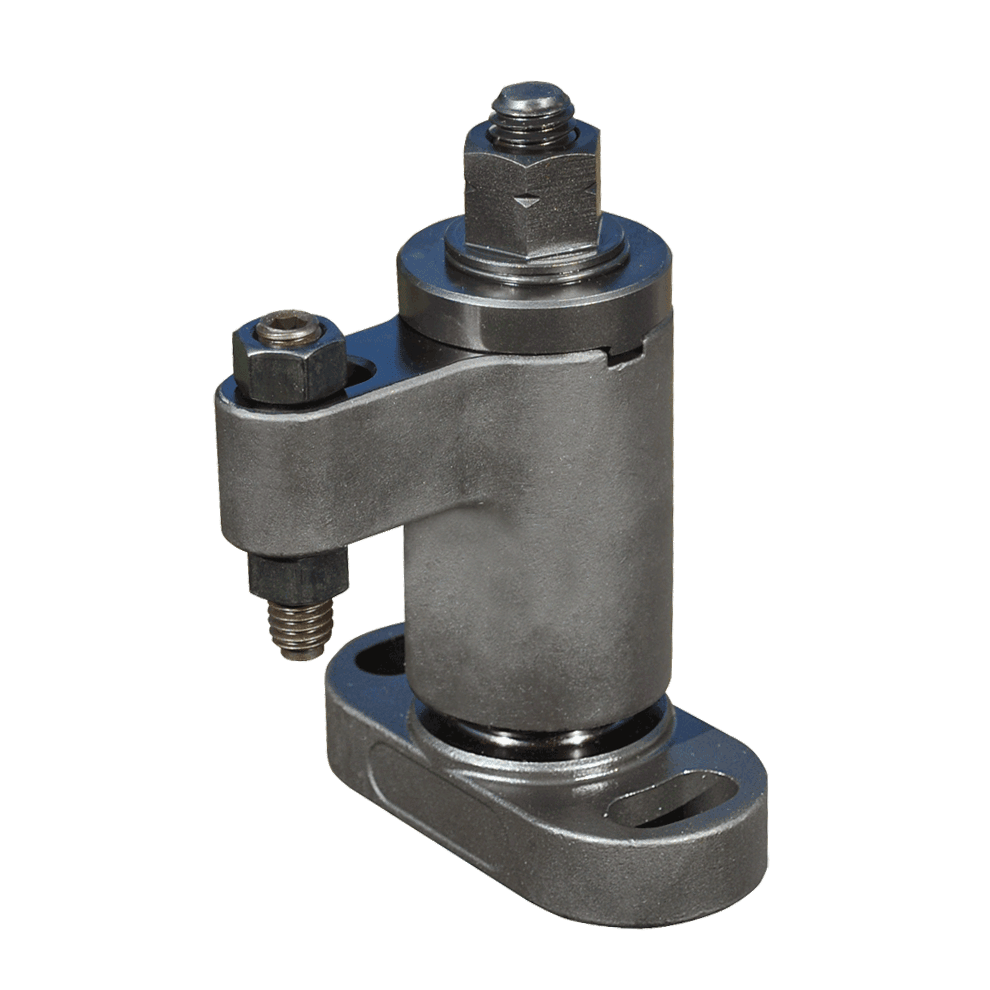

One-Touch Swing Clamps are manually operated clamps that first rotate exactly 70° clockwise into position then clamp straight down in one continuous motion. The version shown here is operated by a screw mechanism with a hex drive nut. This allows for exact clamping-force control using a torque wrench. The screw mechanism also provides a longer clamping stroke and greater clamping force than the versions with cam locking. Available in four clamp sizes, with the following maximum clamping forces that can be applied:

500 Lbs

800 Lbs

1300 Lbs

1700 Lbs

Operation

Starting with the clamping arm swung away for loading, tighten the flange nut to rotate the arm into clamping position and automatically move the arm downward to apply clamping force.

Starting with the clamping arm swung away for loading, tighten the hex drive nut to rotate the arm into clamping position and automatically move the arm downward to apply clamping force. A small portion of the total vertical stroke is used to swing the clamping arm, then the remaining stroke is available as the clamping range. To unclamp, turn the flange nut counterclockwise to lift the arm straight up and automatically return the arm to its original position for loading.

Mounting

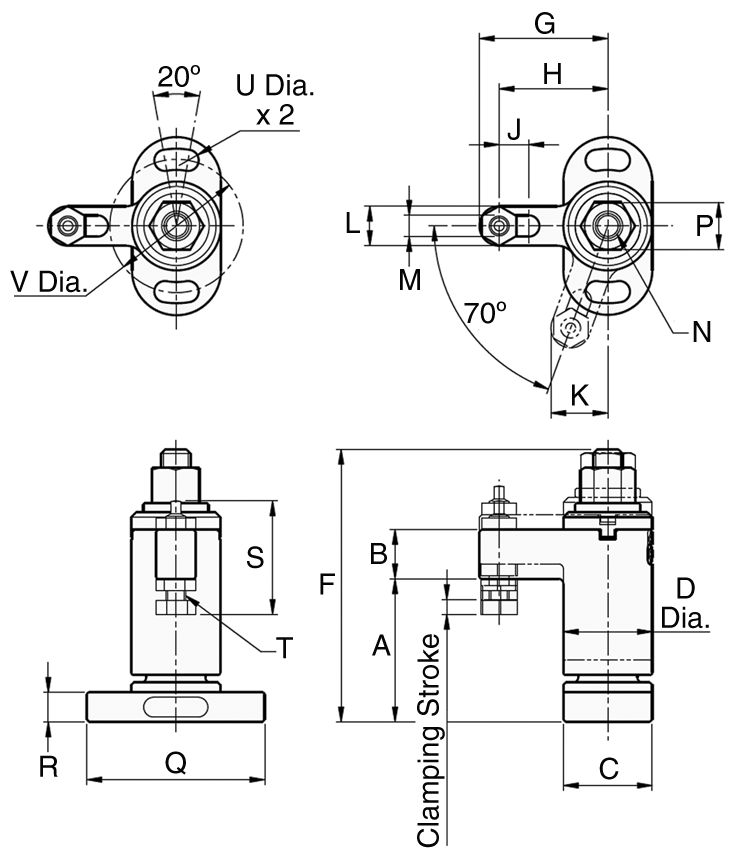

Fasten with two socket-head cap screws using the two mounting slots. To allow for workpiece variation, adjust spindle extension so that full clamping force is achieved approximately in the middle of the clamping stroke.

Material

ITEM	MATERIAL	HEAT TREAT	FINISH	RoHS
Base, washer, spindle and hex drive nut	1045 Steel	Heat Treated	Black Oxide	✔
Clamping-arm body	Alloy Steel	Heat Treated	Black Oxide	✔
