KOSMEK Hydraulic Link Clamps

Toggle Clamps

Product Information

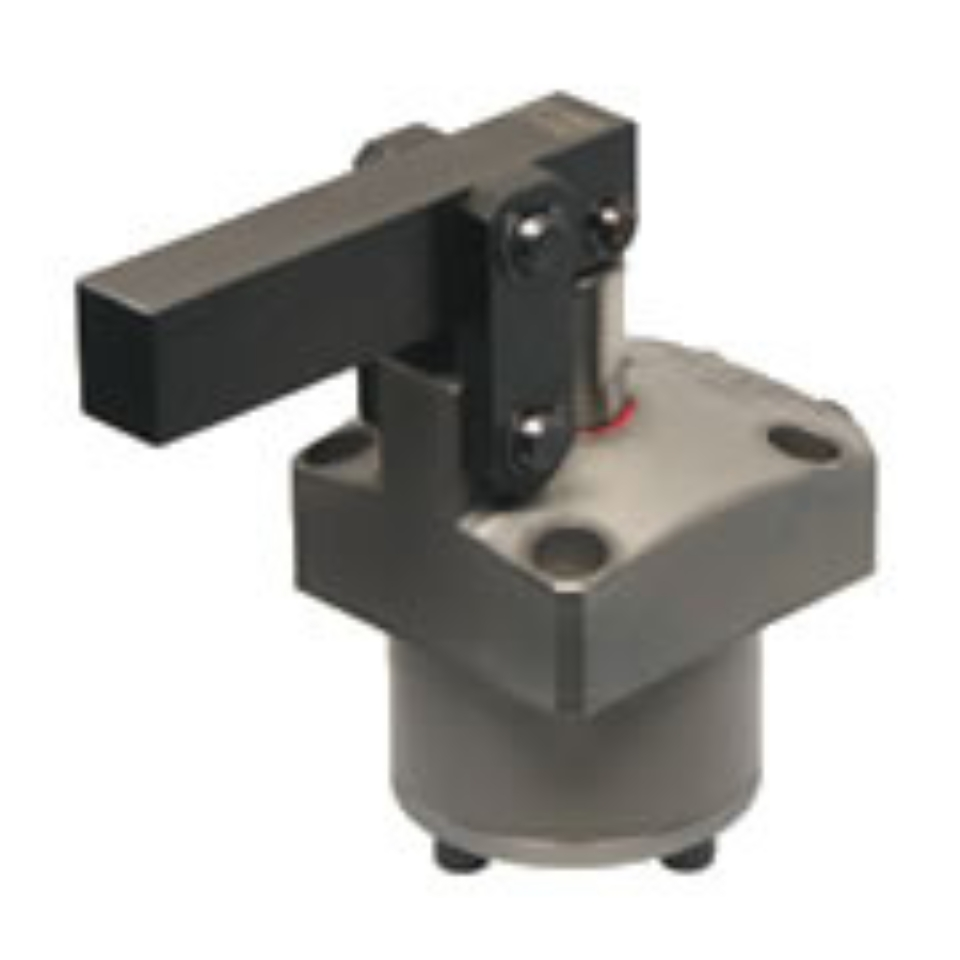

KOSMEK LKA Hydraulic Link Clamps are compact, high-strength clamping devices designed for fixture applications where space is limited and coolant exposure is constant. The below-flange dimension is reduced by 40 percent compared to standard link clamps, enabling thinner and lighter fixture designs while maintaining full clamping and holding force. A high-strength supporting point cast into the body cylinder delivers clamping forces from 3.2kN to 16.7kN in sizes stocked at Carr Lane Mfg, with larger sizes also available. Items shown in the table below have connection ports that support either direct piping or via gasket sealed passages, selectable by customer. Maximum input pressure is 70Bar (1,000PSI).

The lever is available in three positions (Left, Center, or Right as viewed from the port side), allowing flexible integration into fixture layouts. An exclusive dust seal protects against high-pressure coolant ingress and provides excellent chemical resistance to chlorine-based coolants. A high-strength link plate option accommodates a larger range of allowable offset for applications requiring greater positional tolerance.. Made in Japan

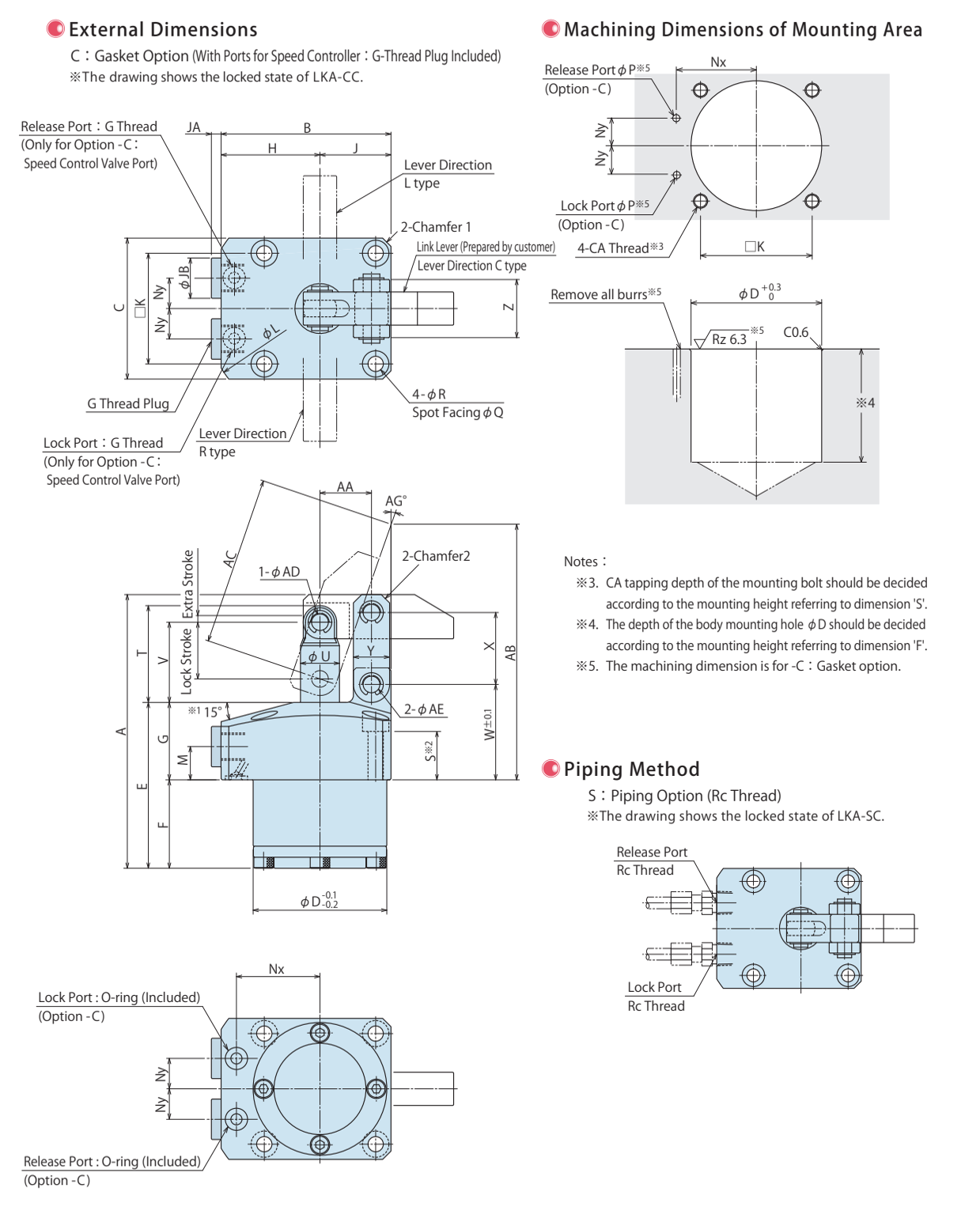

Technical Information

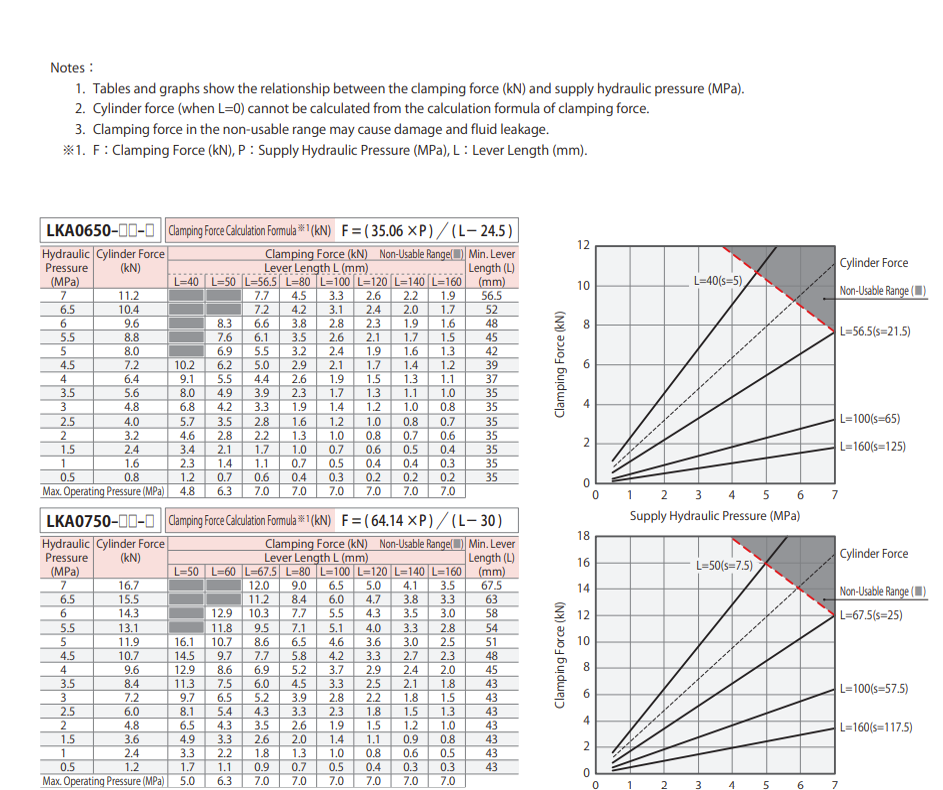

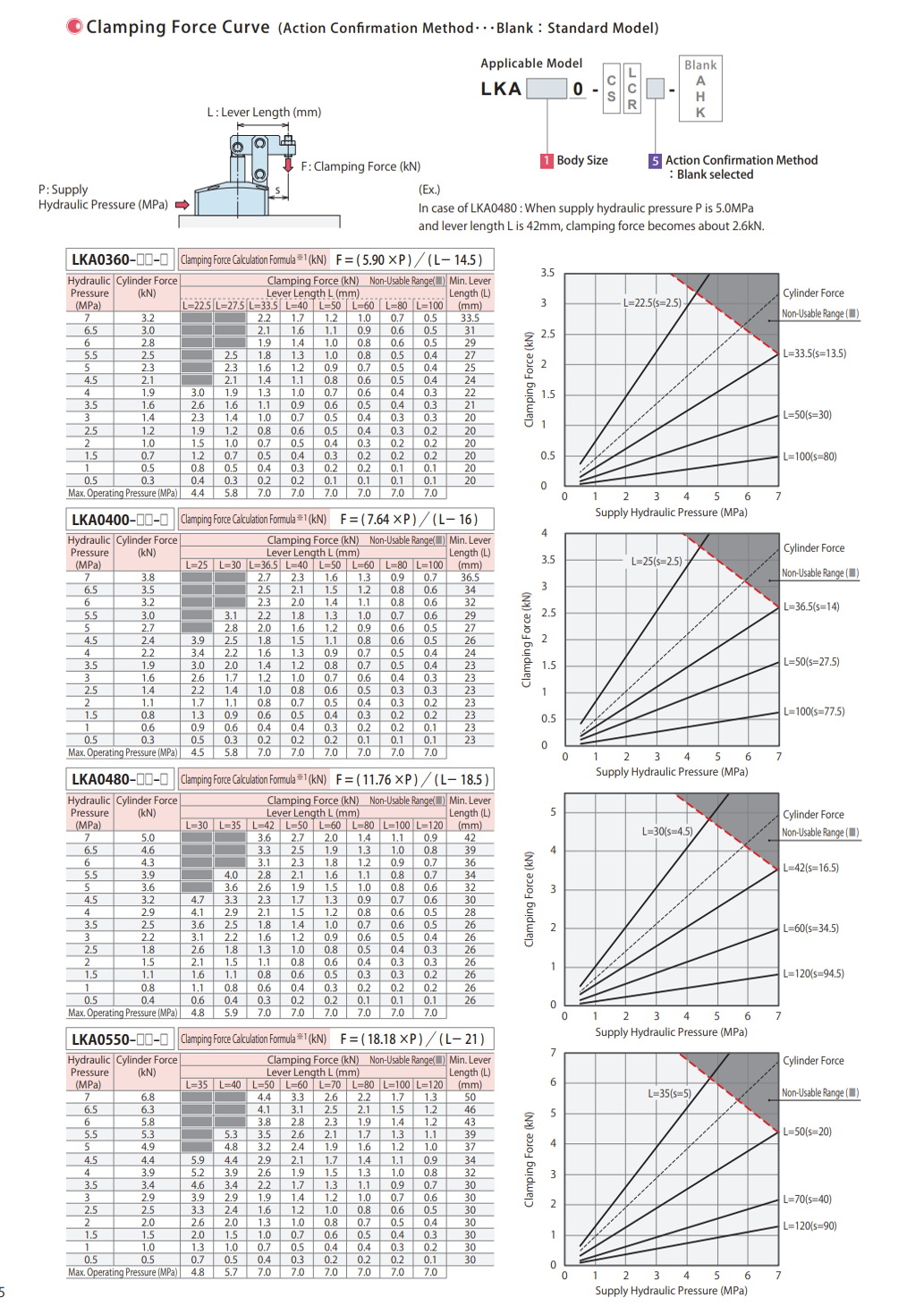

Clamping Force Curve

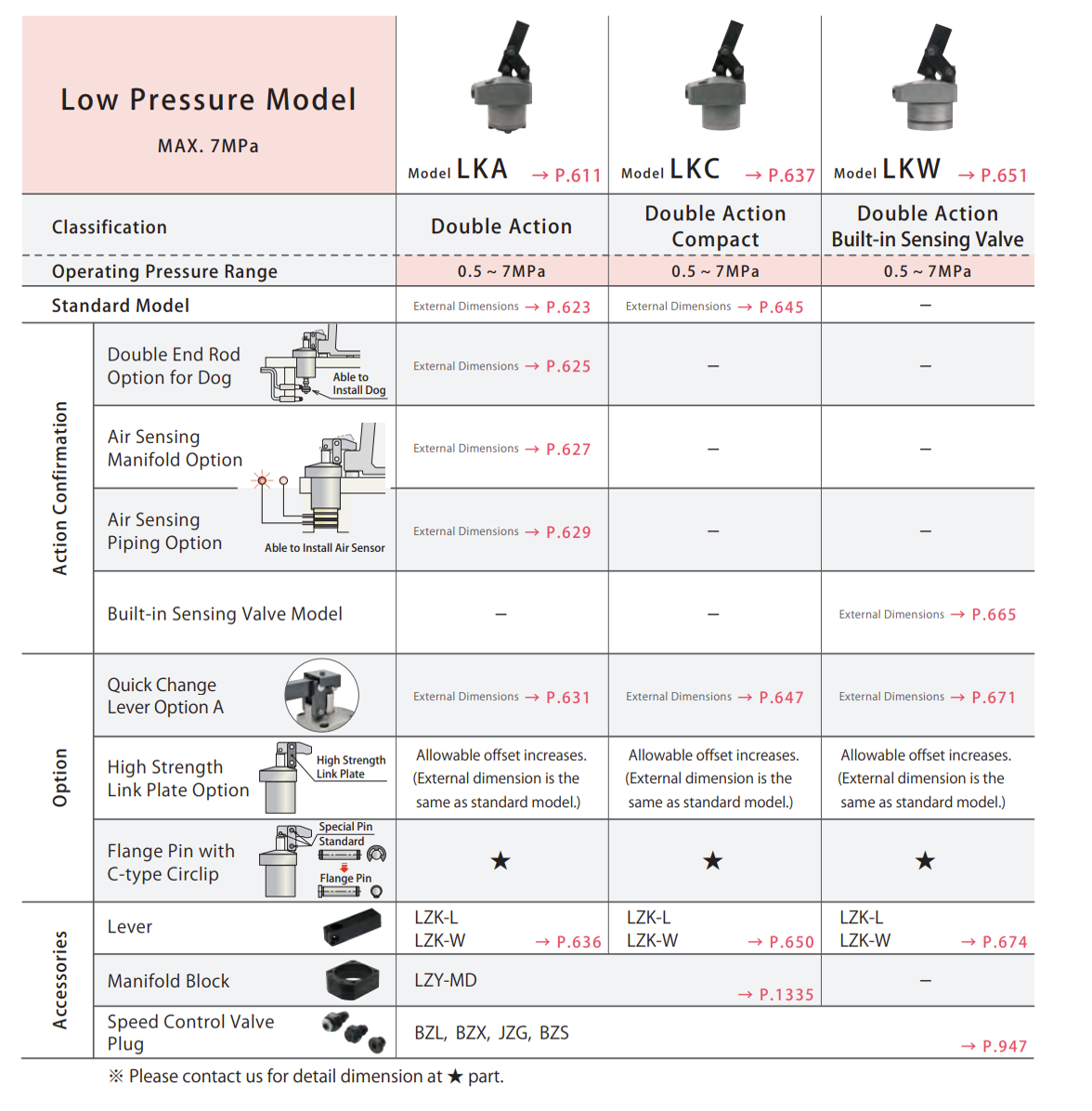

Available Options
