LOCKING T PIN ASSEMBLY


Status Legend:
  • !

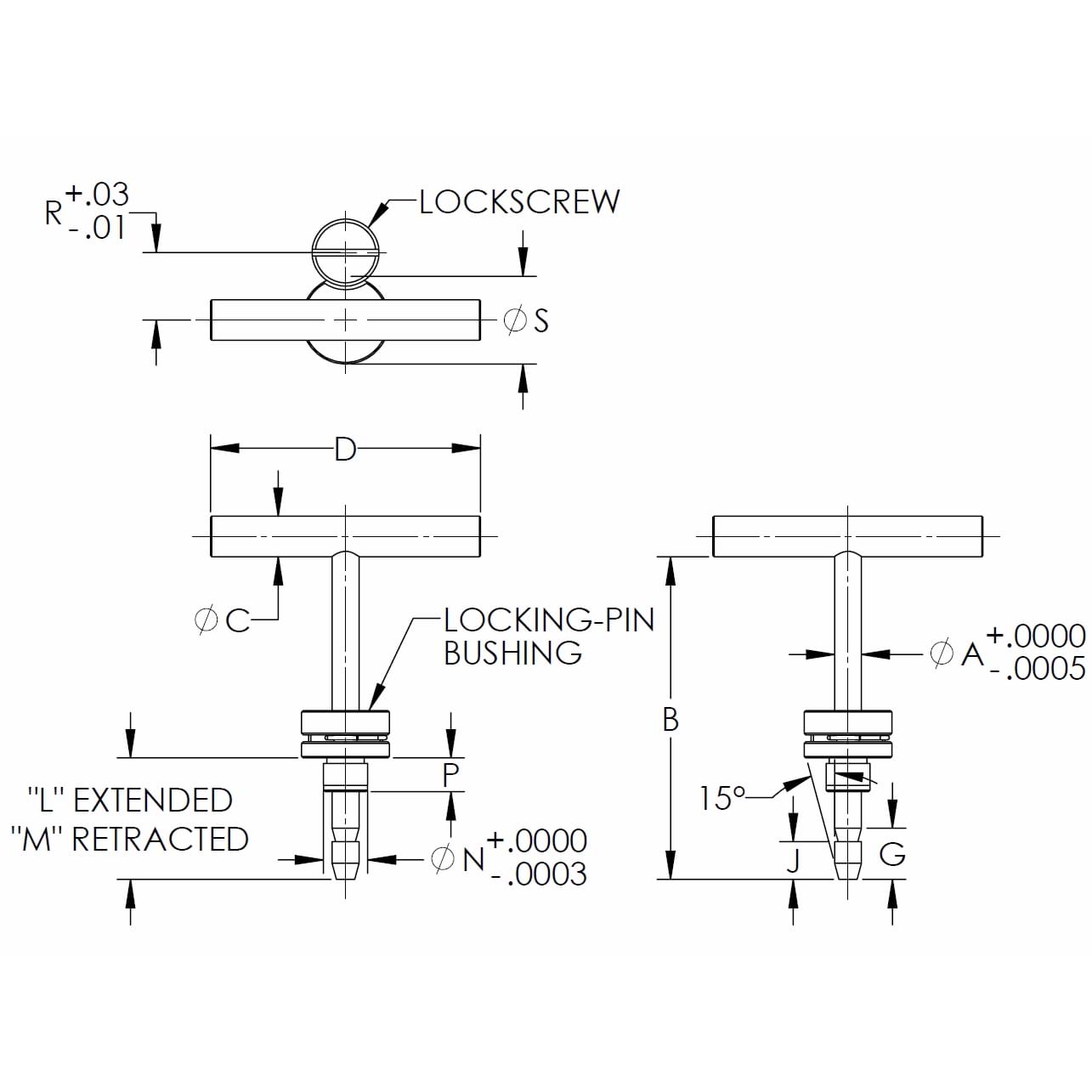

Part Specifications

Part NumberA
DIA
NOMINAL
A
DIA
ACTUAL
+0/-.0005
B
PIN
LENGTH
P
BUSHING
LENGTH
UNDER
HEAD
PC
DIA
DLN
DIA
NOMINAL
N
DIA
ACTUAL
+0/-.0003
R
+.03/-.01
SL PIN
(INCLUDED)
BUSHING
(INCLUDED)
LOCKSCREW
(INCLUDED)
CL-40A-LTP-B-13/8.37402Standard.315/83-1/21-1/25/8.6267.6213/16CL-40A-LTPCL-6-LPBLS-1
